TLR 22 5.0 AC 1/10 2WD Astro/Carpet Buggy Race Kit


LOADING IMAGES

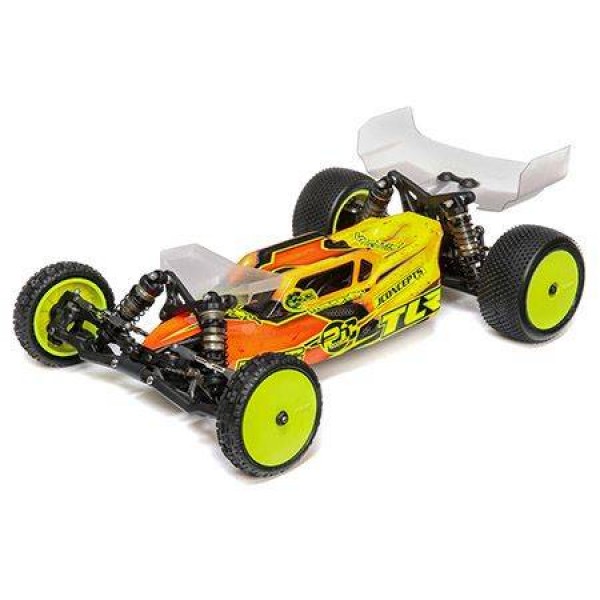

TLR 22 5.0 AC 1/10 2WD Astro/Carpet Buggy Race Kit
$279.99
This is a TLR 22 5.0 AC Race Assembly Kit. A 1/10 2WD Astro/Carpet Buggy ready to take you to the top. The 22 5.0 is the next step in the 22 series with many new enhancements and even more Option Parts.

Availability: In stock*

Only 1 left

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The 22 5.0 takes the 22 Platform to the next level, and will take to you to the top of the podium!

The 22 5.0 is the next evolution of the 22 2wd buggy platform. Optimizing the 22 5.0 specifically for carpet and turf tracks, we've been able to narrow the setup window and maximize performance. 22 4.0 nailed the rear end, maximizing adjustment and rear grip for all surfaces, but the Team Losi RacingĀ® development team knew the 22 5.0 could still be improved. Turning focus to the front suspension, we found a way to make the 22 5.0 significantly easier to drive while still giving the car more mid-corning steering.

Includes:

  • (1) TLR 22 5.0 AC Race Kit: 1/10 2WD Buggy Astro/Carpet
  • (1) Product Manual

Requires:

  • Motor, Electronic Speed Control, Servo
  • Radio System
  • 48 Pitch Pinion Gear
  • Charger, Battery
  • Paint
  • Tools

features

  • Revamped steering geometry
  • Super Heavy Duty Slipper (SHDS)
  • Laydown transmission configuration
  • Stiffezel suspension components
  • Adjustable rear shock location
  • Built-In Motor Fan Mount
  • Lightweight body
  • 2.0 Milled aluminum chassis
  • Aluminum-plate rear hub
  • Gen3 12mm big-bore shocks
  • Ballast tuning options (ballast sold separately)
  • Many popular option parts included as standard

Specs

Approximate Assembly Time: 3-5 Hours
Ball Bearings: Full Rubber Sealed Ball Bearings
Body: 22 5.0 Cab Forward, 0.7mm LW
Brakes: Controlled via Motor/ESC
Chassis: 2mm Milled Plate, 7075-T6 Aluminum
Completion Level: Kit
Differential: Ball Differential
Drivetrain: 2WD
Front Track: 9.8 in (248.5mm)
Gear Pitch: 48-Pitch
Height: 5.8 in (148mm)
Internal Gear Ratio: 2.43:1
Length: 15.0 in (382mm)
Rear Track: 9.8 in (250mm)
Shock Type: 12mm Big Bore, Oil Filled
Size/Scale: 1/10
Spur Gear: 78T,72T
Suspension: Lower A-Arm, Upper Adjustable Link
Track: 9.8 in (250mm)
Vehicle Type: Buggy
Wheel Diameter: 2.2 in (56mm)
Wheel Hex Size: 12mm Hex
Wheel Type: 22 Dish, 12mm Hex
Wheelbase: 11.0 in(280mm)
Width: 9.8 in (250mm)

Features Overview

Carpet Ready Setup:
The 22 5.0 AC is 100% carpet race ready. It includes an all-new gear diff, front and rear sway bars, narrow front wheels, raised diff inserts and raised axle rear hubs, as well as pistons, springs and molded composites consistent with what racers expect from a race ready carpet off-road buggy.

Revamped Steering Geometry:
The 22 5.0 is the best driving 2WD buggy Team Losi Racing has ever created and the biggest improvement comes from the steering geometry. Increasing the length of the steering bell cranks and spindle arms, along with changes to the Ackermann angle give the 22 5.0 a significantly smoother steering feel, especially off-center and high speed, while increasing low-speed steering for tighter tracks and 180's.

Super Heavy Duty Slipper (SHDS):
The slipper is optimized with all new slipper plates, slipper pads, spring, spur gears, and an all new top shaft. The new top shaft uses a sturdy M4 lock nut, the new slipper pads allow for spur gears sized 69T to 84T, reduced slipper pad area provides a more linear slip through the throttle application, and thicker slipper plate keep consistent pressure across the surface of the slipper pads.

Gen3 12mm Big Bore Shocks:
The Gen3 shocks have been completely revamped and improved. The main performance improvement comes from changing to a 3.0mm shock shaft diameter, the 22 5.0 feels "alive" around the track while also landing better with an improved compression/rebound balance. Other improvements include: Screw mounted pistons, new molded shock caps, thinner shock collar which give 3mm more spring adjustment, locking eyelets and spring cups, -3mm, 0mm and 4mm spring cups, new easy to install shock end balls, standard and +2mm length eyelets.

Option Parts Included:
The 22 5.0 includes a healthy list of included option parts: Aluminum Ball Stud Washers throughout, Aluminum Clamping Hexes, Aluminum Front Axles, Aluminum Rear Camber Block, Full Machined Shock Internals, TLR Low Frequency Springs, Adjustable Rear Toe Plate and Anti-Squat Block, and Sway Bars for front and rear.

2.0mm Milled Aluminum Chassis:
Changing from the 2.5mm thick chassis plate, the 22 5.0 has been improved with a 2.0mm thick chassis plate. The thinner chassis provides more flex and grip, making the 22 5.0 easier to drive and less prone to flipping, as well as absorbing bumps and rough landings far better.

All New Gear Diff:
The all-new traditional style gear differential is more durable and lighter with molded composite gears and cross pins, perfect for mod and spec racing. It also holds more fluid, with larger gear surfaces for a more consistent diff through a run and over several track days.

Lightweight 22 5.0 Body:
Maintaining the excellent balance, grip, and stability of the 22 4.0 body with a similar styling, the 22 5.0 Lightweight (LW) body is pulled from 0.7mm PC plate to keep the center of gravity (CG) low, and the static weight even lower. As with all TLR bodies, the body will be precut in the kit.

TLR Wide Front Wing Included:
With the higher speed, higher grip tracks of today, the TLR wide front wing will increase steering in high speed turns and on power, while making the steering on entry smoother - the best of all worlds. And, it's included in the kit

Wheels Included:
TLR Kits still include a full set of fluorescent yellow wheels to get racers on the track quickly. The 22 5.0 does include the new Stiffezel narrow front wheels which provide more consistent front grip, and more steering in high load turns.

All Metric Hardware:
Using all metric hardware make it easy to find replacement screws, nuts and washers, and helps to limit the number to tools required in the toolbox.

Sway Bars Included:
Optimizing the setup for carpet, front and rear sway bars with mounts are included to help control roll and increase stability. The increased consistency will lead to few mistakes and help all racers reduce lap times.

All New Battery Hold Down:
The 22 5.0 boasts the most versatile and easiest to use battery hold down system. The battery cradles key into the mud guards for five fixed, and easy to replicate, battery positions. The battery is then held down with elastomer straps on each end that can stretch to fit any height shorty battery and any weight plates under it. Best of all, the battery is out in no time flat and back in just as easily.

TLR 6.5" Rear Wing:
Pulled from ultra-durable 1.2mm polycarbonate, the TLR 6.5" rear wing isn't new for the 5.0. Instead, this wing has proven itself as the longest lasting and most stable rear wing available for 1/10 2wd buggies over the past few years - and it comes in the kit.

Built-In Motor Fan Mount:
The prevalence of spec racing has led to the need for many racers to run motor fans to keep temperatures lower. Rather than an aluminum mount, or double-sided tape, the 22 5.0 includes a molded fan mount secured to the mud guard for easy and dependable fan mounting.
Specs

Product Specifications

Part NumberTLR03017
Scale1/10
Drivetrain2WD
Kit TypeUnassembled Kit
Approximate Assembly Time3-5 Hours
Ball BearingsFull Rubber Sealed Ball Bearings
Body22 5.0 Cab Forward, 0.7mm LW
BrakesControlled via Motor/ESC
Chassis2mm Milled Plate, 7075-T6 Aluminum
Completion LevelKit
DifferentialBall Differential
Drivetrain2WD
Front Track9.8 in (248.5mm)
Gear Pitch48-Pitch
Height5.8 in (148mm)
Internal Gear Ratio2.43:1
Length15.0 in (382mm)
Rear Track9.8 in (250mm)
Shock Type12mm Big Bore, Oil Filled
Size/Scale1/10
Spur Gear78T,72T
SuspensionLower A-Arm, Upper Adjustable Link
Track9.8 in (250mm)
Vehicle TypeBuggy
Wheel Diameter2.2 in (56mm)
Wheel Hex Size12mm Hex
Wheel Type22 Dish, 12mm Hex
Wheelbase11.0 in(280mm)
Width9.8 in (250mm)
