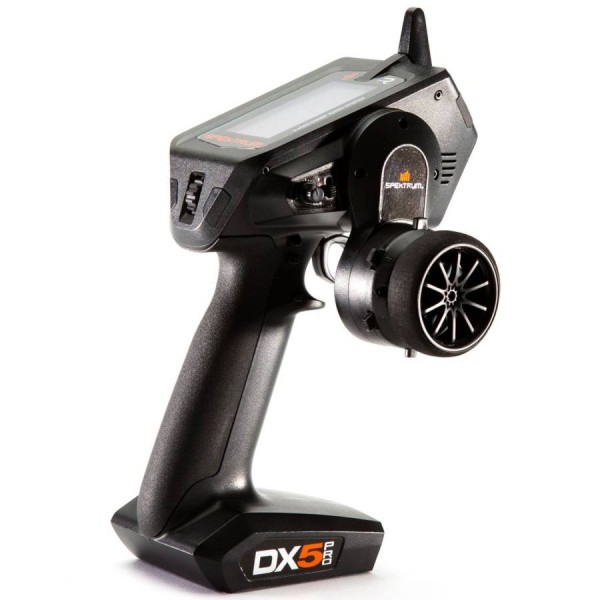

Spektrum DX5 Pro 5-Channel DSMR Surface Transmitter with SR2100 Receiver

Impulse Driven
The Spektrum™ DX5 Pro includes more ergonomic options so that everything you drive can respond more harmononiously. Plus the DX5 Pro gives bashers, boaters and racers a class-leading list of pro-class features, all at a remarkably affordable price.

Built-In Telemetry
The built-in telemetry feature can give you real-time information on things like your vehicle's battery voltage, signal quality, motor temperature and more.* Using the vibe alert system, you can program the DX5 Pro to notify you when specific telemetry values reach or exceed limits you define.

Next-Gen Ergonomics

Inspired by users like you, optimized adjustments make it easy to thoroughly adapt the DX5 Pro's ergonomics to your driving style. The sense of balance and comfort they provide perfectly complements the precision of DSMR® technology.

The DX5 Pro was designed to perform in every single surface segment imaginable. It comes with a drop down wheel as standard and a full ergonomics package that allows you to setup wheel angle, and even steering wheel size. Steering feel has been immensely improved with smoother left to right transition. Throttle throw has been increased to provide more natural feeling action with greater resolution. As a result, these two controls offer a better balance with the potential to improve the accuracy and stamina of your driving.
DX5 Pro ergonomic features include:

Smooth, dual-ball bearing precision
Adjustable trigger and steering tension
Adjustable trigger position (fore-to-aft and side-to-side)
Multiple wheel drop-down options
Multiple grip sizes, included
10˚ and 15˚ steering adapters, included
Small steering wheel, included
36˚ steering cam option, included

The DX5 Pro comes with an impressive list of programming features, some of which include:
Up to 5 drive modes per model
Programming for compatible AVC® receivers
Spektrum Lap Timer Programming
Programmable mixes including Motor-On-Axle
(MOA)
ABS and 4-wheel steering
Dual rates, expo and more!


Frequency-Agile DSMR® Technology
The DX5 Pro is built around frequency-agile, DSMR 2.4GHz technology. This exclusive Spektrum™ technology can be used in any type of surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb. It's also backwards compatible with DSM2® and marine-specific Spektrum receivers. This means most longtime Spektrum users can continue to use the receivers they have. They’ll only need to upgrade if they want the frequency-agility of a DSMR receiver for busy 2.4GHz environments.

• 5 fully proportional channels
• Generous ergonomics package lets you make the transmitter fit you
• Redesigned steering mechanism eliminates center dead zone
• Redesigned throttle trigger with increased throw and resolution
• Spektrum Lap Timer, AVC® technology, telemetry and Drive Mode ready
• Multiple mixing setups including Motor on Axle (MOA)
• Six, factory loaded model presets with specially tuned AVC Smart Drive modes
• DSMR® 2.4GHz technology, and backwards compatible with DSM2®
• 5.5-millisecond frame rate with compatible receivers
• Includes Antenna-less SR2100 5.5ms DSMR receiver
• Advanced programming features
• SimpleScroll™ interface makes advanced programming easy to use
• Built-In telemetry
• Programmable vibe alerts
• 250-model memory
• LiPo battery compatible (battery sold separately)

Band: 2.4GHz
Channels: 5
Flight Modes: 1
Frame Rate: 11/22 Ms
Height: 5.3 in (135mm)
Length: 8.3 in (210mm)
Model Memory: 250
Modulation: DSMR
Proportional Inputs: 5
Range: Full
Rate Positions: 3 POS
Receiver: SR2100
Resolution: 2048
SD Card/Airware Capable: Yes
Telemetry: Integrated
Transmitter (Tx) Battery Type: 4 x AA
Type: Intermediate Computer
Weight: 1.4lbs (0.63Kg)
Width: 5.6 in (143mm)
5.5-Millisecond Frame Rate:
When matched with a receiver capable of 5.5ms frame rates, the DX5 Pro delivers lightning-fast response that gives new meaning to the word 'connected'.

Includes SR2100 DSMR High-Speed Receiver:
Built around frequency-agile DSMR® technology, the SR2100 will consistently deliver superb range and a lightning-fast 5.5ms frame rate, even in places where a lot of 2.4GHz systems are in use at once. Its design features an incredibly small footprint with an internal antenna that eliminates the need for external antenna tube support, so it’s easy to mount on most any chassis.
