Spektrum™ Smart Technology is about offering a higher connection to your hobby. It's an RC ecosystem that puts you in complete control while making vital components of your model easier to use than ever before. Smart technology ensures that all of your model's electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component's status, boosts your confidence in its capabilities, and makes your entire system more responsive and simple to use.
Spektrum radios with Smart features can download firmware updates instantly using Wi-Fi and can swap setups with compatible radios via Bluetooth. Spektrum Smart LiPo batteries have a built-in microchip that records and communicates your charging preferences automatically to Smart chargers — just connect your pack and press "Start." Smart IC™ series connectors include an innovative data wire that transfers information easily between Smart components with a single connection. Finally, Smart ESCs not only deliver power but also eliminate the hassles from running telemetry. The days of installing and connecting multiple wires, sensors, modules and links are over.

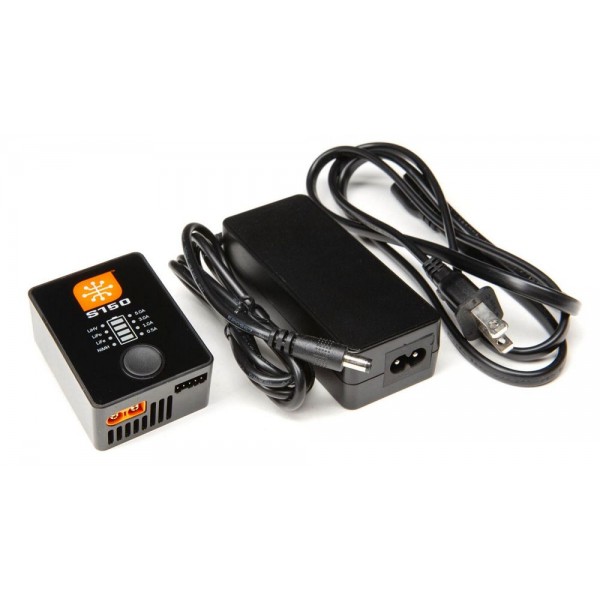

With the compact S150 AC Mini Smart Charger, modelers of all experience levels can enjoy the charging advantages of innovative Spektrum™ Smart technology. This 50 watt charger brings advanced Smart charging capabilities and features to an affordable platform that features an easy-to-use, one-button interface.
When used with Spektrum Smart batteries with an IC3™ or IC5™ connector, the S150 uploads charging data from each battery's integrated memory chip. That pack-specific data helps you evaluate battery health and makes charging a snap — because the S150 can read and make the correct chemistry setting automatically. The S150 AC Mini Smart Charger is compatible with LiPo, Lilon, LiHV, and NiMH battery types.
Application: Battery Charger for Electric Powered RC Vehicles and Aircraft
- Recognizes unique Smart battery data for safe, easy charging
- Can also be used to charge batteries without Smart technology
- 50 watts of charging power, up to 5 amps of charge current
- Compact, easily portable design
- One-button interface and simple to understand charging indicator
- Adaptable for AC power input (includes AC to 20V DC power supply)
- Quiet internal cooling fan maintains a safe, efficient operating temperature
- Supports charging LiPo, Lilon, LiHV, and NiMH battery types
- Accepts future Smart technology updates
Battery Balance Connector: JST-XH
Battery Temperature Monitoring: Yes, Temperature Sensor Included
Battery Type: 1-4S LiPo, LiFe, LiHv / 1-12C NiMH, NiCd,
Circuit Breaker: Yes
Cooling Method: Fan
Display: 2.4" 320x320 IPS LCD
Height: 1.12" (28.5mm)
Input Voltage: 100-240V AC
Integrated Balancing: Y - Internal Balancer & External Adapter
Length: 2.5" (65mm)
Low Input Voltage Protection: Yes
Material: Plastic Case
Maximum Charge Rate: 17.4V, 5A, 50W
Model Memory: Smart ID
Output Connector: IC3 (compatible with EC3)
Over Current Protection: Yes
PC Connectivity: Yes - USB, external adapter required
PC Required: No
Peak Detection: Yes
Reverse Polarity Protection: Yes
Safety Timer: Yes
Selectable Charge Rate: Yes - Incremental (0.1A Increments)
Short Circuit Protection: Yes
Software Updates: Yes, via USB Port
Thermal Protection: Yes
Type: AC Powered Smart Battery Charger
Weight: 2.2oz (63g)
Width: 1.9" (49mm)
Part Number SPMXC1070 Supported Chemistries LiPo Input Source AC, DC Application Battery Charger for Electric Powered RC Vehicles and Aircraft Battery Balance Connector JST-XH Battery Temperature Monitoring Yes, Temperature Sensor Included Battery Type 1-4S LiPo, LiFe, LiHv / 1-12C NiMH, NiCd, Circuit Breaker Yes Cooling Method Fan Display 2.4" 320x320 IPS LCD Height 1.12" (28.5mm) Input Voltage 100-240V AC Integrated Balancing Y - Internal Balancer & External Adapter Length 2.5" (65mm) Low Input Voltage Protection Yes Material Plastic Case Maximum Charge Rate 17.4V, 5A, 50W Model Memory Smart ID Output Connector IC3 (compatible with EC3) Over Current Protection Yes PC Connectivity Yes - USB, external adapter required PC Required No Peak Detection Yes Reverse Polarity Protection Yes Safety Timer Yes Selectable Charge Rate Yes - Incremental (0.1A Increments) Short Circuit Protection Yes Software Updates Yes, via USB Port Thermal Protection Yes Type AC Powered Smart Battery Charger Weight 2.2oz (63g) Width 1.9" (49mm)
