Overview

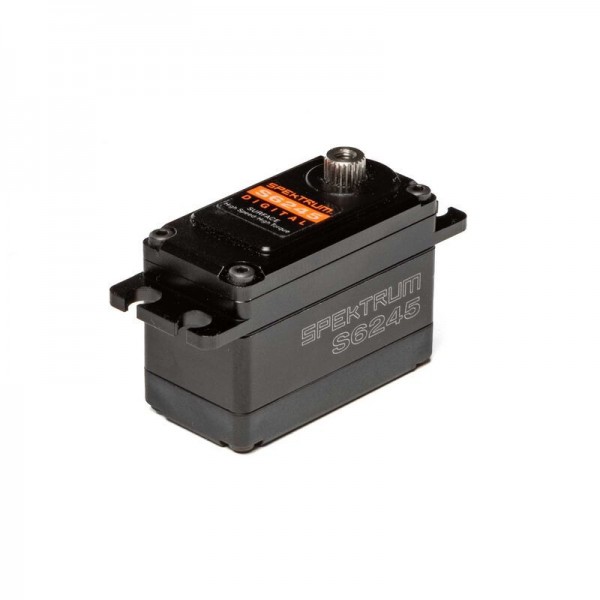

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th scale vehicle application. The S6245 takes the race winning S6240 servo and upgrades it with a sleek, all aluminum, black anodized finish. The low profile design allows for space saving installation, making it the perfect servo for 1/10 racing buggies and trucks, bashers looking to upgrade their RTR vehicle, or for crawlers that need that extra speed and torque to push through demanding terrain.
features
- Stylish stealth black and silver anodized aluminum case*
- Aluminum case provides great heat dissipation
- High Voltage HV compatible (7.4V/2S Max)*
- Improved torque and speed*
- Removable wire harness with different lengths available
- Improved gear design for added durability*
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Includes 2 inch extension for easy minimum wire installs
- Robust aluminum mounting tabs
- NMB dual main output shaft bearings
- 23T output shaft
- Waterproof
- 1-Year Limited Warranty
Application: SurfaceSpecs
Bearing: Dual
Bushing Or Bearing: Bearing
Connector Wire Length: 2.0 in (51mm)
Gear Type: Metal
Servo Speed: 0.08 sec/60 deg @ 6V, 0.06 sec/60 deg @ 7.4V
Maximum Servo Torque: 200-349 oz-in
Product Height: 1.18 in (30mm)
Product Length: 1.61 in (41mm)
Product Weight: 2.2oz (62.37g)
Product Width: 0.82 in (20.8mm)
Programmable: No
Servo Operating Voltage: 6.0 - 7.4V (HV)
Servo Size Category: Standard
Torque: 206 oz-in (14.8kg-cm) @ 6V, 266 oz-in (19.2 kg-cm) @ 7.4V
Type: 6245 1/10- Specs
Product Specifications
Part Number SPMSS6245 Application Surface Bearing Dual Bushing Or Bearing Bearing Connector Wire Length 2.0 in (51mm) Gear Type Metal Servo Speed 0.08 sec/60 deg @ 6V, 0.06 sec/60 deg @ 7.4V Maximum Servo Torque 200-349 oz-in Product Height 1.18 in (30mm) Product Length 1.61 in (41mm) Product Weight 2.2oz (62.37g) Product Width 0.82 in (20.8mm) Programmable No Servo Operating Voltage 6.0 - 7.4V (HV) Servo Size Category Standard Torque 206 oz-in (14.8kg-cm) @ 6V, 266 oz-in (19.2 kg-cm) @ 7.4V Type 6245 1/10 - Reviews
