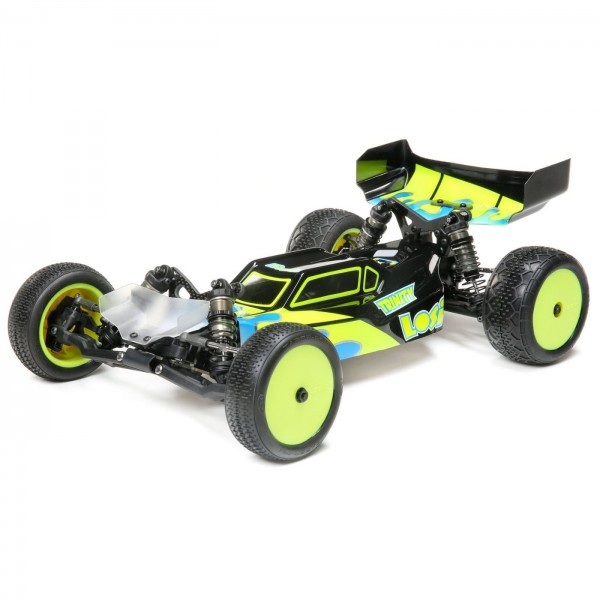

The 22 5.0 has proven itself as the next evolution of the 22 2WD buggy platform. Now the 22 5.0 DC ELITE kit gives drivers a professional grade, full team-level kit all in one box! Optimized for dirt and clay tracks, the ELITE kit features fully adjustable rear pivots, adjustable height rear hubs, carbon fiber option parts throughout, and all the aluminum parts have been changed to a sharp black with silver edges to pop against the hard anodized chassis and shock bodies. Building on the improvements to the 22 5.0, the ELITE kit is significantly easier to drive while still giving the car more mid-corning steering with the revised steering geometry, smoother G3 shocks, and the optimized flex of the 2mm chassis plate. Designed to win straight out of the box, the 22 5.0 DC ELITE maximizes performance and is podium ready.
- (1) 22 5.0 DC ELITE Kit
- (1) 22™ 5.0 Cab Forward Body
- (1) Product Manual
- Electronic Speed Control
- Radio System
- 48 Pitch Pinion Gear
- Battery and Charger
- Wheels and Tires
- Tools - Please refer to the manual for more details
Approximate Assembly Time: 3-5 Hours
- Pro Level Ready
- Carbon Fiber Options Included
- Aluminum Options Included
- New Adjustable Rear Hub and Pivots
- Titanium Turnbuckles Included
- Revamped steering geometry
- Super Heavy Duty Slipper (SHDS)
- Laydown transmission configuration
- Stiffezel suspension components
- Fully Updated Differential
- Built-In Motor Fan Mount
- Lightweight body
- 2.0 Milled aluminum chassis
- Gen3 12mm big-bore shocks
- Front Roll Center Adjustment
- New Front Camber Block and Battery Hold Down
- Ballast tuning options (ballast sold separately)
Ball Bearings: Full set, rubber sealed
Batteries: Sold separately
Body: Cab forward, 0.03" (0.7mm) thick
Bushing Material: Metal
Charger: Sold separately
Chassis: 7075-T6 Aluminum Milled Plate 0.08" (2mm) thick
Completion Level: Kit
Differential: Ball Type
Gear Pitch: 48-Pitch
Height: 5.8" (148mm)
Internal Gear Ratio: 2.43:1
Length: 15" (382mm)
Max Battery Dimensions: 5.5 x 1.8 x 0.96" (139.7 x 46 x 24.5mm)
Motor Type: Brushless (sold separately)
Pinion: Not Included
Radio: 2-channel sold separately
Servos: High torque steering servo (sold separately)
Shock Type: Oil filled 12mm Big Bore
Spur Gear: 78T,72T
Suspension: Stiffezel Front Suspension Arms, Soft Rear Suspension Arms
Track: Front and Rear 9.8" (249mm), distance from outer edges of tires measured side-to-side
Vehicle Type: 2WD Dirt and Clay Racer
Wheel Diameter: 2.2" (56mm) sold separately
Wheel Hex Size: 12mm Hex
Wheelbase: 11" (280mm)
Width: 9.8" (250mm)Pro Level Ready:
Including all of the key option parts that our factory race team uses to win across the world, the 22 5.0 DC ELITE is truly Pro Level Ready from a kit build right out of the box... more so than any 2WD buggy kit ever offered. Parts include Carbon Fiber, Black Anodized Aluminum and Titanium turnbuckles.
Carbon Fiber Parts Included:
The overwhelming popular carbon fiber option and tuning parts for the 22 5.0's have been added into the kit. +2mm front and rear shock towers, electronics mounting plate, and a rear wing washer are now included in the kit!
Aluminum Option Parts Included:
As the team has found many of the optional aluminum parts for the 22 5.0 to improve maintenance or performance, those are now included in the kit as well. Aluminum options included are the bell cranks, drag link, servo mount, outer front bearing inserts, rear camber block, C and D pivots, and aluminum nuts throughout.
Revamped Steering Geometry:
The 22 5.0 is the best driving 2wd Team Losi Racing has ever created, and the biggest improvement comes from the steering geometry. Increasing the length of the steering bell cranks and spindle arms, along with changes to the Ackermann angle give the 22 5.0 a significantly smoother steering feel, especially off-center and high speed, while increasing low-speed steering for tighter tracks and 180's.
G3 12mm Big Bore Shocks:
The G3 shocks give the 22 5.0 the plush handling and consistent, leak-free bleed as the Gen II shocks, but with some long-anticipated ease of use improvements. No more e-clips as the pistons are now secured by screws, new shock caps and shock bodies increase the spring collar height by 3mm to accommodate lower ride heights, new eyelets and spring cups provide -3mm, 0mm and +4mm spring cup off-sets and paired with all new eyelets will never pop off with the screw in feature. The new eyelets are also made in two lengths that allow racers to switch between different heights, and work with revised shock balls that finally slide into the front arms smoothly and easily.
2.0 Milled Aluminum Chassis:
Maximizing the flex characteristics for all surfaces, the 2.0mm thick chassis give the right about of flex and rigidity for smooth corning, optimized balance, and bounce-free landings.
All Metric Hardware:
Using all metric hardware make it easy to find replacement screws, nuts and washers, and helps to limit the number to tools required in the toolbox.
The laydown 3-gear transmission moves the motor forward by 20mm+ to a more centralized location. The benefit is a chassis that drives much flatter and carries more corner speed.
Part Number TLR03022 Scale 1/10 Drivetrain 2WD Kit Type Unassembled Kit Approximate Assembly Time 3-5 Hours Ball Bearings Full set, rubber sealed Batteries Sold separately Body Cab forward, 0.03" (0.7mm) thick Bushing Material Metal Charger Sold separately Chassis 7075-T6 Aluminum Milled Plate 0.08" (2mm) thick Completion Level Kit Differential Ball Type Drivetrain 2WD Gear Pitch 48-Pitch Height 5.8" (148mm) Internal Gear Ratio 2.43:1 Length 15" (382mm) Max Battery Dimensions 5.5 x 1.8 x 0.96" (139.7 x 46 x 24.5mm) Motor Type Brushless (sold separately) Pinion Not Included Radio 2-channel sold separately Servos High torque steering servo (sold separately) Shock Type Oil filled 12mm Big Bore Size/Scale 1/10 Spur Gear 78T,72T Suspension Stiffezel Front Suspension Arms, Soft Rear Suspension Arms Track Front and Rear 9.8" (249mm), distance from outer edges of tires measured side-to-side Vehicle Type 2WD Dirt and Clay Racer Water-Resistant Yes Wheel Diameter 2.2" (56mm) sold separately Wheel Hex Size 12mm Hex Wheelbase 11" (280mm) Width 9.8" (250mm)
