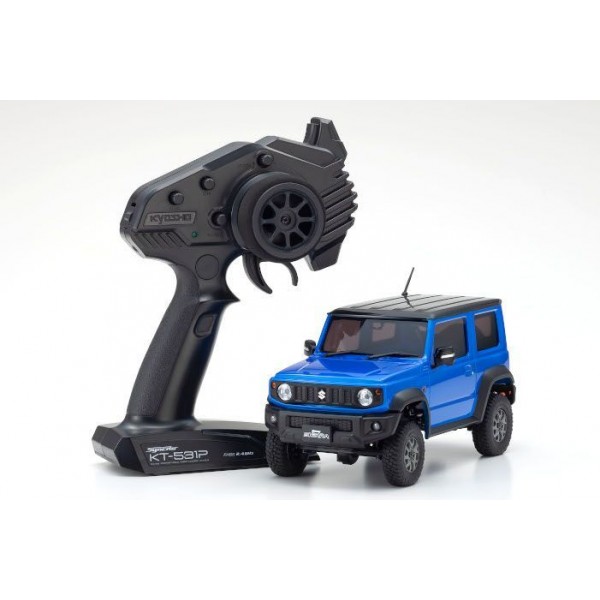

Introducing the "MINI-Z 4x4", a design that allows MINI-Z fans to expand their horizons with climbing and crawling capabilities. This scale 4x4 beauty features a fine-tuned overall design, superior driving performance and high-quality injection-molded scale body construction.
One of the main draws of the MINI-Zs has always been the greater emphasis of body detail and quality of finish, and the 4x4 surpasses existing benchmarks set by the MINI-Z series. The body is molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4x4, specially geared to run well in the low to medium speed ranges common in crawling.
Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4x4 needs is eight AAA alkaline batteries (sold separately). Whether you take your MINI-Z 4x4 to your local park or just crawl across your own desktop, the Mini-Z 4x4 is a mini crawler that delivers a full range of scale crawling performance in a smaller, compact package.
- (1) Complete chassis with built in electronics
- (1) Factory painted body complete with fine details
- (1) KT531P 2.4GHz transmitter
- (6) Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
- (3) Pinion gear spacers
- (4) AAA batteries for the transmitter
- (4) AAA batteries for the chassis
- Molded with a thick body material for a crash resistance
- Extreme scale detail of Jimny Sierra Body
- Incorporated ladder- style frame of real 4WD vehicles
- 3-link rigid axle suspension
- Specially designed high-torque steering servo
- High-torque 130-size motor
Chassis Type: MX-01
Wheel Base: 110mm
Tread F/R: 72.7mm
Weight: 223g (excluding battery)
Motor/Engine: 130 Class
Gear Ratio: 55.44:1/ 30.80:1/ 46.20:1/ 27.72:1/ 39.60:1/ 34.65:1
Front Tire Diameter: 42.0mm
Rear Tire Diameter: 42.0mm
Front Tire Width: 14.3mm
Rear Tire Width: 14.3mm
Battery: (4) AAA alkaline
Transmitter: Syncro KT-531P
Speed Approx.: 3.3km/h-6.6km/h (Pinion gears 10T- 20T)
Running Time: Approx. 60 mins
Part Number KYO32523MB Scale 1/24 Drivetrain 4WD Kit Type No Battery Length 200.5mm Width 87mm Weight 223g (excluding battery) Chassis Type MX-01 Wheel Base 110mm Tread F/R 72.7mm Motor/Engine 130 Class Gear Ratio 55.44:1/ 30.80:1/ 46.20:1/ 27.72:1/ 39.60:1/ 34.65:1 Front Tire Diameter 42.0mm Rear Tire Diameter 42.0mm Front Tire Width 14.3mm Rear Tire Width 14.3mm Battery (4) AAA alkaline Transmitter Syncro KT-531P Speed Approx. 3.3km/h-6.6km/h (Pinion gears 10T- 20T) Running Time Approx. 60 mins
