- Overview
Overview

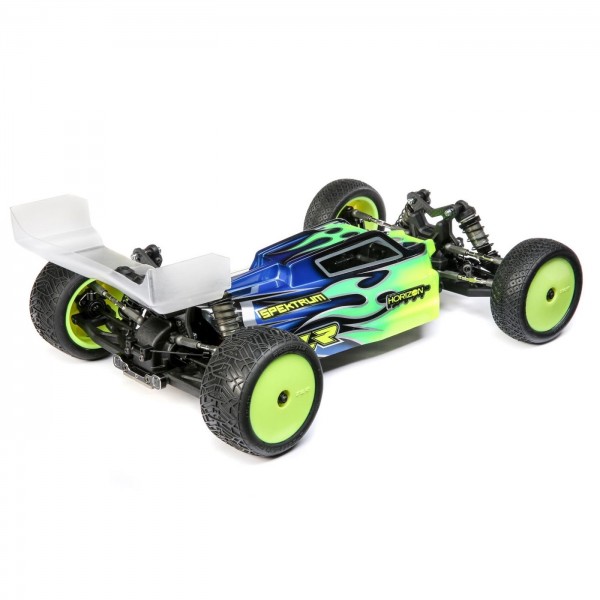

TLR® customers have been asking for it and now it's finally here! 40 years in the making, the all-new Team Losi Racing® 22X-4™ Race Kit is the shaft driven 4WD buggy racers have dreamt about. Taking a completely different approach to a TLR 4WD buggy, the R&D team has developed an all-new platform from the ground up. Switching to the more reliable and versatile shaft drive design, the 22X-4 is much lighter and has improved driving characteristics while also being significantly easier to build and maintain. The 22X-4 has a combination of features second-to-none including full adjustable suspension, 2.5 milled aluminum chassis, floating servo mount, adjustable motor and battery position, carbon fiber throughout, and so much more. Designed to dominate right out of the box, the 22X-4 Race Kit is performance-oriented and podium ready.
Includes:
- (1) TLR® 1/10 22X-4 Race Buggy Kit
- (1) Product Manual
Requires:
- Motor
- Electronic Speed Control
- Servo
- Radio System
- Charger
- Battery
- Paint
- Tools
- Tires
- Pinion Gear
- CA Glue
Notes:
Body is sold clear and is shown painted for advertising purposes only.
features
- Shaft Drive Platform
- Fully Adjustable Suspension
- Premium Parts Included
- 2.5 Milled Aluminum Chassis
- G3 12mm Big Bore Shocks
- All New Gear Diffs
- Adjustable Inner Pivots
- Optimized Suspension Composites
- Elastomer Battery Mounting
- Floating Servo Mount
- Adjustable Motor and Battery Position
- Fresh 22X-4 Body Design
- Carbon Fiber Optimized
- All Metric Hardware
- TLR 6.5" Rear Wing
- Easy Access Diffs
- Built-In Motor Fan Mount
Approximate Assembly Time: 3-5 HoursSpecs
Ball Bearings: Full set, rubber sealed
Batteries: 2S LiPo (sold separately)
Body: 22X-4, 0.7mm thick lightweight
Brakes: Integral with ESC
Bushing Material: Metal
Charger: Sold Separately
Chassis: 0.098" (2.5mm) thick 7075-T6 milled aluminum plate
Completion Level: Kit
Differential: Large volume bevel gear diffs
Drivetrain: 4WD
Front Track: 9.8 in (250mm)
Gear Pitch: 48-Pitch
Height: 5.8" (148mm)
Internal Gear Ratio: 2.5:1
Length: 14" (356mm)
Max Battery Dimensions: 3.78 x 1.85 x 0.87" (96 x 47 x 22mm)
Motor Size: 36mm brushless (sold separately)
Motor Type: Sold separately
Pinion: 16T
Radio: Sold
Rear Track: 9.8 in (250mm)
Receiver: Sold Separately
Scale: 1/10
Servos: High-torque steering servo (sold separately)
Shock Type: Oil-filled 12mm Big Bore
Speed Control: Sold Separately
Spur Gear: 78T,81T
Suspension: Lower A-arm, upper adjustable link, Stiffezel front and rear arms
Vehicle Type: 4WD Buggy
Water-Resistant: Yes
Wheel Type: 22 dish
Wheelbase: 11.2" (283.5mm)
Width: 9.8" (250mm)- Specs
Product Specifications
Part Number TLR03020 Scale 1/10 Drivetrain 4WD Kit Type Unassembled Kit Approximate Assembly Time 3-5 Hours Ball Bearings Full set, rubber sealed Batteries 2S LiPo (sold separately) Body 22X-4, 0.7mm thick lightweight Brakes Integral with ESC Bushing Material Metal Charger Sold Separately Chassis 0.098" (2.5mm) thick 7075-T6 milled aluminum plate Completion Level Kit Differential Large volume bevel gear diffs Drivetrain 4WD Front Track 9.8 in (250mm) Gear Pitch 48-Pitch Height 5.8" (148mm) Internal Gear Ratio 2.5:1 Length 14" (356mm) Max Battery Dimensions 3.78 x 1.85 x 0.87" (96 x 47 x 22mm) Motor Size 36mm brushless (sold separately) Motor Type Sold separately Pinion 16T Radio Sold Rear Track 9.8 in (250mm) Receiver Sold Separately Scale 1/10 Servos High-torque steering servo (sold separately) Shock Type Oil-filled 12mm Big Bore Speed Control Sold Separately Spur Gear 78T,81T Suspension Lower A-arm, upper adjustable link, Stiffezel front and rear arms Vehicle Type 4WD Buggy Water-Resistant Yes Wheel Type 22 dish Wheelbase 11.2" (283.5mm) Width 9.8" (250mm) - Reviews
- Questions & Answers
- Must be logged in to ask a question.
Sort By:
No questions yet. Be the first to ask the question! - Resources
- Manuals
- 22X-4 4WD Buggy Race Kit - Manual - Multilingual (16.43 MB)
- Aluminum Bellcrank 22-4 Manual - Mulitilingual (75 KB)
- 22 X-4 4WD Buggy Setup Sheet Sheet Matthew Wiliby Clubbin' OCRC 02-2020 (1.47 MB)
- 22X-4 4WD Setup Sheet Editable (1.45 MB)
- 22X-4 4WD Setup Sheets Blank (210 KB)
- 22X-4 4WD Setup Sheets Carpet (214 KB)
- 22X-4 4WD Setup Sheets Clay (214 KB)
- 22X-4 Race Kit Setup - Aaron Kothman, Reedy Race of Champions, OCRC, 01/2020 (1.47 MB)
- 22X-4 Race Kit Setup - Dakotah Phend, Desert Classic, Hobby Action, 03/2020 (1.47 MB)
- 22X-4 Race Kit Setup - Frank Root, Reedy Race of Champions, OCRC, 01/2020 (1.47 MB)
- 22X-4 Race Kit Setup - Frank Root, Toys for Tots, 702 RC, 12/2019 (1.47 MB)
- 22X-4 Race Kit Setup - Tom Rinderknecht, Reedy Race of Champions, OCRC, 01/2020 (1.47 MB)
