- Overview
Overview

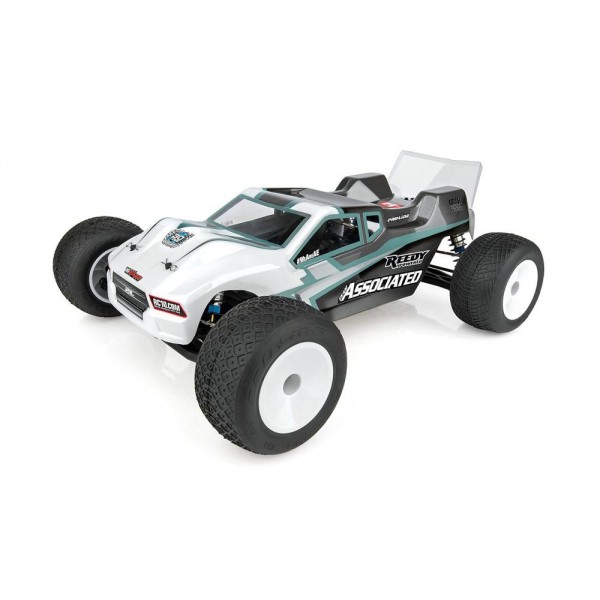

Race-winning heritage. Based on Team Associated's RC10B6.2 platform, the RC10T6.2 Team Kit represents the next step in the evolution for competitive truck racing. The RC10T6.2 Team Kit is the next iteration of the successful truck platform bringing updates to improve adjustability, durability, and most importantly, performance. The engineers behind the doors of Team Associated's Area 51 incorporated the updates racers like you asked for and included more tuning option parts in the box.
Designed to win. The RC10T6.2 shares key components with the RC10B6.2, RC10B6.2D, and RC10B74.1 Team Kits, making it easier than ever to run multiple classes at the same time. Like the RC10B6.2 and RC10B74.1, the RC10T6.2 has new features such as an integrated fan mount, highly adjustable rear hub assembly, and the speed, durability, and lineage expected of a true champion.
The RC10T6.2 has been designed and built to the highest standard to give racers an edge over the competition.Requires:
- 1/10 scale 12mm hex truck wheels ( ASC7852 , AS7853)
- 1/10 scale 540-size electric motor (Reedy Sonic line recommended)
- 1/10 scale electronic speed control (Reedy Blackbox ASC27002 , AS27003, AS27004, AS27005)
- 1/10 scale truck tires and foam inserts
- 2- cell LiPo battery pack (Reedy ASC27322 , AS27323, AS27818, AS27324)
- 2-channel receiver
- 2-channel surface transmitter, and its batteries
- Battery charger
- Cyanoacrylate (CA) glue for tires and wheels (Factory Team ASC1597)
- Pinion gear (48 pitch)
- Spray paint for polycarbonate body
- Steering servo (Reedy servo line ASC27106 , AS27107)
- Thread locking compound (Factory Team ASC1596 )
Notes:
Body is sold clear and is shown painted for advertising purposes only.
features
- NEW Features:
- New gull wing front and rear arms and shock towers for improved high traction handling
- B74.1 two-piece rear hubs with aluminum upper caps for fine geometry adjustments
- 1.3mm front anti-roll bar and hardware included for added high-speed stability
- Both Laydown and Layback Stealth(R) transmissions included for tuning weight bias
- Factory Team 13g aluminum ESC tray
- Updated side rails for 30mm motor fan mount shared with B6.2 series buggies
- +1 carbon fiber steering block arms
- B74 66mm rear axles and 91mm CVA bones
- 8.5mm aluminum rear clamping hexes with laser etching
- Updated front body mount is more rigid to protect body from cracking
- Standard weight 1.0mm Pro-Line(R) Enforcer body included
- Legacy RC10T6.2 Features:
- Lightweight, hard-anodized aluminum chassis with centralized mass and three mid-motor positions for improved handling on all track types
- Differential height adjustment with included 0, 1, 2, and 3mm inserts
- Easy access to differential
- Split slipper assembly for better weight balance and shock clearance
- Heavy-duty routed 4.0mm carbon fiber shock towers
- V2 12mm Big Bore threaded aluminum shocks with 3mm shafts and X-rings for improved smoothness
- Machined pistons included for better fit and smoother operation
- Reverse bellcrank steering allows more room for mounting electronics
- Bolt-on steering block arms for easy Ackermann adjustments
- Aluminum rear ballstud mount for added strength
- One-piece shock bushings to make assembly easier
- Lightweight aluminum top shaft
- Aluminum C and D arm mounts included for large range of anti-squat and toe adjustments
- Factory Team upgraded ball bearing kit included
- Heavy-duty ball cups and ballstuds allow for maximum suspension travel while reducing bind and friction
Power Source: ElectricSpecs
Terrain: Off-Road
Body Style: Truck
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 368mm (14.49in)
Width: varies
Wheelbase: varies
Weight: varies
Internal
Gear Ratio: 2.6:1
Drive: 2WD
* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.Big Bore Shocks Big Bore Shocks:Features Overview
V2 12mm Big Bore threaded aluminum shocks with 3mm shafts and X-rings for improved smoothness
Stealth Transmissions Stealth Transmissions:
•Both Laydown and Layback Stealth(R) transmissions included for tuning weight bias
Rear Hubs Rear Hubs:
B74.1 two-piece rear hubs with aluminum upper caps for fine geometry adjustments
Differential Differential:
Easy access to differential with height adjustment with included 0, 1, 2, and 3mm inserts
ESC Tray ESC Tray:
Factory Team 13g aluminum ESC tray
Side Rails Side Rails:
Updated side rails for 30mm motor fan mount shared with B6.2 series buggies
Steering Block Arms Steering Block Arms:
+1 carbon fiber steering block arms
Anti-roll Bar Anti-roll Bar:
1.3mm front anti-roll bar and hardware included for added high-speed stability
Gull Wing Gull Wing:
Gull wing front and rear arms and shock towers for improved high traction handling
Body Included Body Included:
Standard weight 1.0mm Pro-Line(R) Enforcer body included- Specs
Product Specifications
Part Number ASC70003 Scale 1/10 Drivetrain 2WD Kit Type Unassembled Kit Power Source Electric Terrain Off-Road Body Style Truck Scale Size 1:10 Scale Assembly Level Kit* Length 368mm (14.49in) Width varies Wheelbase varies Weight varies Gear Ratio 2.6:1 Drive 2WD - Reviews
