- Overview
Overview
World Championships award winning powerChampions by design. 1:10 scale 2WD off road has been Team Associated's signature class since the release of the RC10 in 1984. The Team Associated RC10 buggy series has won 12 of the 17 I.F.M.A.R. World Championships contested since the racing class began. In fact, Team Associated has won more 2WD I.F.M.A.R World Championships than all other manufacturers combined!
The engineering continues. Team Associated's RC10B6.1 has been met with wild success by racers across the globe. As good as that may be, the engineers of Team Associated's Area 51 became aware of the advantages that could be gained in certain track conditions by racing a lighter-weight B6.1.

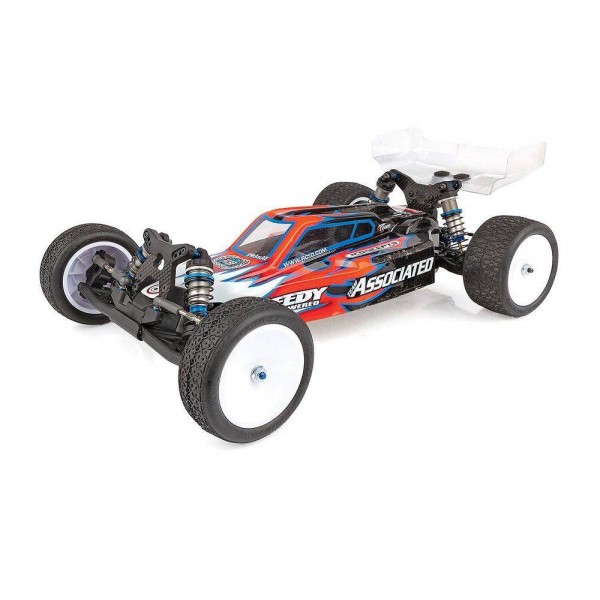

Enter the RC10B6.1 Factory Lite. Shedding over 45 grams of weight from the original B6.1D, the Factory Lite was designed to excel in classes requiring Spec motors, allowing the racer to take full advantage of the performance offered by the reduced weight. The Factory Lite sheds 30 of the 45 grams in rotational mass alone.Requires:
- 1:10 scale 540-size electric motor
- 1:10 scale electronic speed control
- 7.4V LiPo or 6.6V LiFe battery (shorty pack, saddle pack, or square pack) Saddle Pack and Square can be used, but you must remove the battery strap #91731 -- the battery must be held in with 2 sided tape.
- Battery charger (able to charge one of the batteries mentioned above)
- 2-channel surface transmitter, and its batteries
- 2-channel receiver
- Steering servo
- Pinion gear (48 pitch)
- Spray paint for polycarbonate body and wing
- 1:10 scale buggy wheels
- 1:10 scale buggy tires
- Glue for tires and wheels
features
- Direct drive system for reduced weight and better acceleration
- MIP Pucks(TM) 7075-T6 aluminum outdrives
- MIP Pucks(TM) Bi-Metal(TM) lightweight R-CVD bones, 67mm
- Adjustable diff height can be matched to various ride heights
- Machined pistons included for better fit and smoother operation
- V2 springs for a more reactive and nimble feel
- One-piece shock bushing to make assembly easier
- Molded spur gear guard to help protect body from damage
- 3-gear Laydown Stealth(R) transmission for lower and forward CG
- Innovative rear arm with molded inserts for ultra-fine lower shock mount adjustment
- Lightweight aluminum top shaft
- Aluminum C and D arm mounts included for a large range of anti-squat and toe adjustment
- Heavy-duty V2 routed graphite front shock tower with tower guard
- Factory Team upgraded ball bearing kit included (now oiled instead of greased for less drag)
- Aluminum 7.0mm rear clamping hex with laser etching
- Aluminum 5.0mm front axle with adjustable height
- Rear hubs feature large bearings and the easy-insert system to adjust camber link position and rear axle height
- JConcepts(TM) lightweight B6 clear body and wing included
- Aluminum 5.0mm front axle with adjustable height
Power Source: ElectricSpecs
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: varies
Width: varies
Wheelbase: varies
Weight: varies
Internal Gear Ratio: 2.6:1
Drive: 2WD- Specs
Product Specifications
Part Number ASC90022 Scale 1/10 Drivetrain 2WD Kit Type Unassembled Kit Power Source Electric Terrain Off-Road Body Style Buggy Scale Size 1:10 Scale Assembly Level Kit* Length varies Width varies Wheelbase varies Weight varies Internal Gear Ratio 2.6:1 Drive 2WD - Reviews
Customer Reviews 1 item(s)
- Great kit to get back into the hobby
-
I've been shopping at Larry's Performance R/C close to 20 years and the staff has always been helpful. When I wanted to get into the 1/10 scale buggy racing this one was highly recommended plus I knew from my previous Team Associated touring car kit that parts (OEM and aftermarket) were going to be plentiful. Putting the buggy together was relatively easy. Some instructions weren't as clear but I figured it out. I took the car out for the first time and it handles great. I'm using a Hobbywing XR10 Pro ESC/17.5 motor. Due to my lack of experience on a track, the car took some crashes but didn't break. As an option the guys at the shop recommended that I swap out my ball diff for the gear diff when practicing/racing on their track for better handling and less maintenance.
Quality Price
- Questions & Answers
- Must be logged in to ask a question.
Sort By:
No questions yet. Be the first to ask the question! - Resources
- Manuals Other Documents
- Blank Setup Sheet (editable) (1.01 MB)
- Standard Kit Setup (793.91 kB)
- How to convert to another gearbox configuration (102.53 kB)
- RC10B6.1 Team Kit - press release (727.08 kB)
- RC10B6.1/6.1D new parts - press release (351.85 kB)
- #91735, 91822 Front Anti-roll Bar assembly instructions (2.39 MB)
- #91793 Aluminum Differential Height Inserts -- press release (191.42 kB)
- #91796 Factory Team Motor Plate - press release (176.32 kB)
- #91800 B6.1 FT Direct Drive Kit -- press release (133.00 kB)
- #91844 MIP Pucks(TM) Assembly Instructions (433.59 kB)
- #92011 Arm Mount Inserts -- instructions (374.80 kB)
- 12mm Thin Shock Pistons -- press release (162.77 kB)
- 6-Series C & D Mount Pill Chart, with visuals (2.43 MB)
- B6.1 HTC Slipper Hub Assembly (197.23 kB)
- FT Chassis Protective Sheet (337.45 kB)
- MOBILE: 6-Series C & D Mount Pill Chart, with visuals (1.14 MB)
- Part List
