Overview

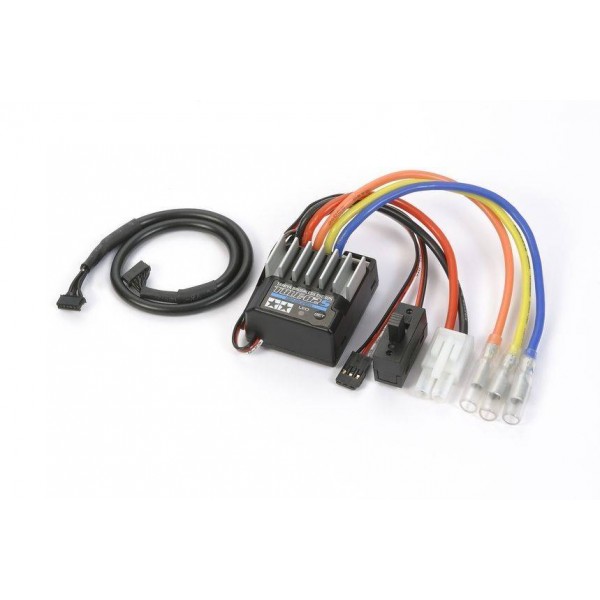

This ESC is especially designed for use with the TBLM series of Tamiya Brushless Motors (Sensored-Type, 10.5T, 12.5T, 14.5T, 16.5T). Brake and neutral brake settings can be adjusted independently, and it features 3 protection systems against overheating, overloading and low voltage. It is also compatible with brushed motors (Normal Type 540 and Sports-Tuned Motors 25 Turn or higher). Note: When using servos with a current exceeding 1.5A, BEC output may be shut down.
Forward, Reverse, Braking (Reverse function may be disabled)Specs
Input voltage: 6.6-7.2V
Dimensions: 42mmx34mmx25mm
Max. continuous current: 60A
Receiver output: 6V/1.5A
Weight: 50.8grams (including cables)
Protection systems: overheat, overload, low voltage to 4.8V (LiFe battery only) Note: Does not support LiPo 6.0 voltage cut-off
Compatible motors: TBLM series (sensored) Sport Tuned brushed motors 540 size over 25T- Specs
Product Specifications
Part Number TAM45057 Input voltage 6.6-7.2V Dimensions 42mmx34mmx25mm Max. continuous current 60A Receiver output 6V/1.5A Weight 50.8grams (including cables) Protection systems overheat, overload, low voltage to 4.8V (LiFe battery only) Note: Does not support LiPo 6.0 voltage cut-off Compatible motors TBLM series (sensored) Sport Tuned brushed motors 540 size over 25T - Reviews
