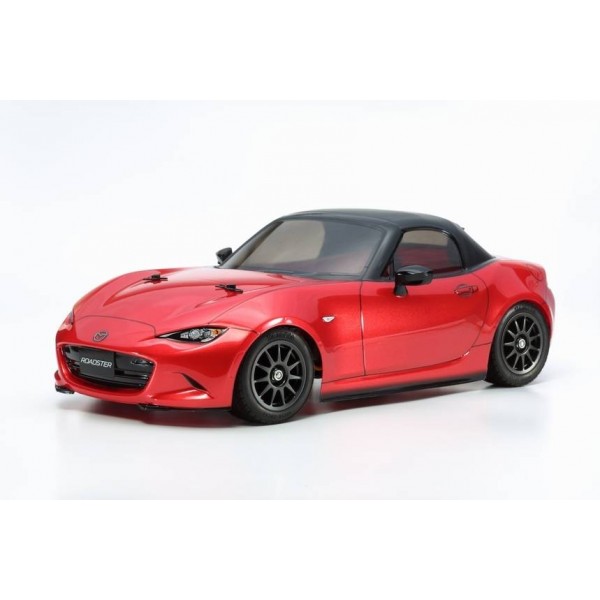

This R/C assembly kit model recreates the 4th generation of the Mazda MX-5 (also known as the Roadster in Japan and the Miata MX-5 in the U.S.), the iconic car with a heritage dating back to 1989 and total sales in excess of 950,000. The dynamic and lightweight car was made to amplify the thrill of driving, with a punchy 1.5-liter (2.0-liter in North American market cars) inline 4-engine and 6-speed transmission, while including modern must-haves such as advanced safety equipment.
The Tamiya R/C model faithfully captures the fun and maneuverability of the real life subject as it comes on the proven M-05 M-chassis platform. The M-05 is a simple to build FWD (front wheel drive) machine, which allows for plenty of after-market parts to be outfitted as you grow with your skill. The lightweight, narrow semi-monocoque frame offers an optimized weight distribution and a low center of gravity. A ground-hugging 4-wheel independent double wishbone suspension and a 3-piece steering linkage ensure excellent stability during high-speed cornering.
Three wheelbase lengths (210mm, 225mm, 239mm) are possible by simply switching the position of the rear suspension parts, enabling a wide range of body choices available from Tamiya.Includes:
- M-05 chassis
- tires
- wheels
- foam inserts
- Mazda body
- decals
- 20 tooth pinion gear
- shocks
- ESC
- motor
- instruction manual
Requires:
- Radio: 2-channel
- AA Batteries: 8 for transmitter
- Battery: 6-cell stick with standard connector
- Battery Charger: Peak type recommended
- Building and track equipment
features
- Chassis: M5 resin monocoque design, composite construction with extensions to build a short, medium or long wheelbase chassis
- Drive: Front wheel
- Shocks: Plastic body friction type
- Shock Towers: Composite construction
- Motor: 540 size
- Electronic Speed Control: Tamiya TBLE-02S
- Gearbox: Sealed, integral with chassis
- Transmission: Single speed, ball bearing equipped
- Differential: Three bevel gear
- Body: Polycarbonate, clear untrimmed
- Suspension: Four wheel independent double wishbone
- Tires: Treaded 60D radial 0.98" (25mm) wide, 2.3" (59mm) diameter with foam inserts
- Wheels: Plastic, black in color 0.94" (24mm) wide, 1.5" (38mm) diameter
- Camber: Non-adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
- Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
- Steering: Three piece tie-rod linkage
Body: PolycarbonateSpecs
Chassis: Plastic
Completion Level: Kit
Drivetrain: 2WD
Motor Size: 540
Motor Type: Brushed
Size/Scale: 1/10
Vehicle Type: Sedan
Length: 14.4" (365mm)
Width: 6.7" (170mm)
Height: 5.6" (142mm)
Wheelbases: 8.3" (210mm), 8.8" (225mm), 9.4" (239mm)
Tread: 5.4" (138mm) center of wheels, side-to-side- Specs
Product Specifications
Part Number TAM58624 Scale 1/10 Drivetrain 2WD Kit Type Unassembled Kit Body Polycarbonate Chassis Plastic Completion Level Kit Drivetrain 2WD Motor Size 540 Motor Type Brushed Size/Scale 1/10 Vehicle Type Sedan Length 14.4" (365mm) Width 6.7" (170mm) Height 5.6" (142mm) Wheelbases 8.3" (210mm), 8.8" (225mm), 9.4" (239mm) Tread 5.4" (138mm) center of wheels, side-to-side - Reviews
