Hobbywing EzRun Max5 V3 1/5 Scale 1000Kv
$219.99

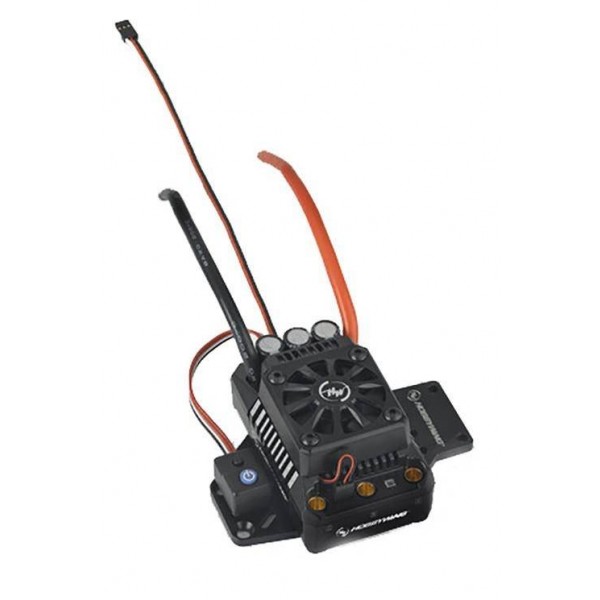

This is the Hobbywing EzRun Max5 V3 1/5 Scale 200-Amp 3S-8S Waterproof ESC

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

This is the Hobbywing EzRun Max5 V3 1/5 Scale 200-Amp 3S-8S Waterproof ESC. The MAX5 provides the ultimate power upgrade solution for many popular 1/5 scale vehicles. It is also suitable for various other brands of 1/5 scale on-road cars, buggies and truggies. The Max5 makes a great upgrade for big vehicles like the Traxxas X-Maxx 8S.

Requires:

  • Soldering your choice of connector to ESC wires

Notes:

The ESC comes with a single positive and negative wire that must be soldered to your choice of battery plug.

features

  • High Reliability & Durability: Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRun MAX5 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
  • Great Flexibility & Versatility: With incredible acceleration capabilities and a rock-solid, stable output, the MAX5 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
  • Applicable for All Weather Conditions: The waterproof and dust-proof design allows the MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
  • High Voltage Built-in BEC: The MAX6 has adopted the world's first HV built-in BEC with an output current of up to 25Amps and a switchable output voltage of 6-7.4V. The high voltage BEC is designed to handle today's high voltage servos on demand used by large scale vehicles.
  • Regular Firmware Updates Free of Charge: You can upgrade the MAX5 with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates it's ESC firmware regularly giving you upgraded features more often when available.
  • Built-in Anti-Spark System: The MAX5 is built wit an internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).

Specs

Scale Vehicles: 1/5th
Cont./Peak Current: 200A/1300A
Motor Mode: Sensorless
Input: 9-24 Cells NiMH, 3-8S Lipo
Motor Limit: 8S:KV≤1000 (Motor Size:58110)
BEC Output: 6V/7.2V adjustable, 6A
Programming Port: Use Fan port
ESC Programming: Via the SET button/LED Program card /LCD Program Box/ WiFi Module
Switch Mode: Electronic Switch
Capacitor protection: Yes
Waterproof: Yes
Size (L.W.H): 93.35/58.12/47.81 mm
Weight: 342g
Specs

Product Specifications

Part NumberHWI30104000
Scale Vehicles1/5th
Cont./Peak Current200A/1300A
Motor ModeSensorless
Input9-24 Cells NiMH, 3-8S Lipo
Motor Limit8S:KV≤1000 (Motor Size:58110)
BEC Output6V/7.2V adjustable, 6A
Programming PortUse Fan port
ESC ProgrammingVia the SET button/LED Program card /LCD Program Box/ WiFi Module
Switch ModeElectronic Switch
Capacitor protectionYes
WaterproofYes
Size (L.W.H)93.35/58.12/47.81 mm
Weight342g
