Overview

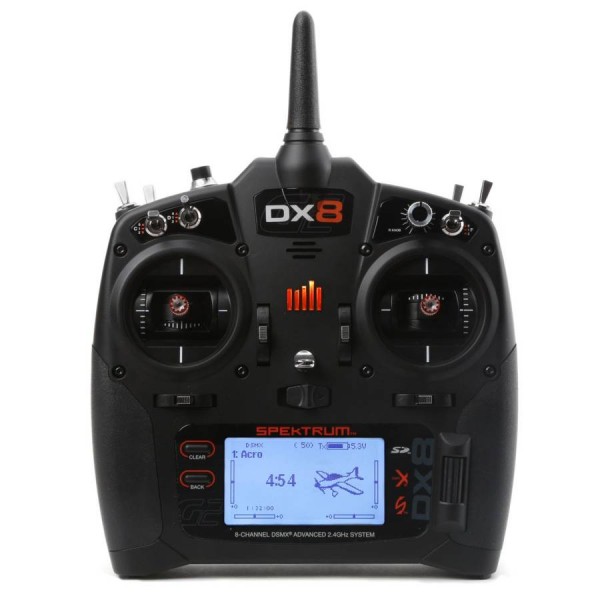

8-CHANNELS AND SO MUCH MORE250 Model Memory
The enormous capacity of the DX8's on-board memory means you will rarely, if ever, need to juggle models between transmitter memory and your SD card. The model memory menu is easier to navigate too. Only memory slots with model settings saved to them will appear. You won't have to scroll through empty slots or move models around if one is deleted. Because the DX8 uses the same AirWare™ software as many other Spektrum transmitters, you can share model setups across platforms with almost any Spektrum pilot.
WIRELESS TRAINER LINK
This exclusive Spetkrum technology gives DX8 users the ability to wirelessly link up with other Spektrum transmitters and specially-equipped Spektrum FPV headsets. Once bound to another transmitter or component, ModelMatch™ technology will allow the DX8 to re-link without having to go through the bind process again.
PROGRAMMABLE VOICE ALERTS
The DX8 lets you keep tabs on important functions without ever taking your eyes off what you're flying. You can program voice alerts to call out what flight mode you've chosen or report telemetry information on demand. If an alarm goes off, you won't have to look at the transmitter display to see what's happening. The DX8 can tell you.
Fly Smarter with Built-in Telemetry
The built-in telemetry feature gives you real-time information on things like your model's battery voltage, signal quality, engine or motor temperature, airspeed, altitude and more.*
Using the voice alert system, you can program the DX8 to tell you when specific telemetry values reach or exceed limits you define. You can also have it call out a sequence of telemetry values on demand with the flip of a switch. If you want to review telemetry after a flight, the DX8 can be set up to record the data to its SD card.
*Requires a Spektrum telemetry module and telemetry sensors, all sold separately.features
- Airplane:
- 10 Wing Types: Normal, Dual Aileron, Flaperon, 1 Aileron 1 Flap, 1 Aileron 2 Flap, 2 Aileron 1 Flap, 2 Aileron 2 Flap, Elevon A, Elevon B, 4 Aileron
- 6 Tail Types: Normal, V-Tail A, V-Tail B, Dual Elevator, Dual Rudder, Dual Rudder/Elevator
- Aileron, Flaperon, Elevon and V-Tail Differential
- Flap System with Elevator Compensation
- 5 Flight Modes
- Dual Rates and Expo
- 7-Point Throttle Curve
- Preset Mixes: Elevator-to-Flap, Aileron-to-Rudder, Rudder-to-Aileron/Elevon
- 10 Programmable Mixes - Select Normal or Curve for Each
- Helicopter:
- Gyro and Governor
- 7-Point throttle curve
- 7-Point pitch curve
- 7-Point tail curve
- 7 Swash plate types: Normal, 3 Servo 120°, 3 Servo 135°, 3 Servo 140°, 3 Servo 90°, 4 Servo 90°, 2 Servo 180°
- 5 Flight Modes, Including Hold
- Cyclic-to-Throttle and Swashplate Timing Mixes
- 10 Programmable Mixes - Select Normal or Curve for Each
- Sailplane:
- 5 Wing Types: Single Aileron, Dual Aileron, 2 Aileron 1 Flap, 2 Aileron 2 Flap, 4 Aileron 2 Flap
- 3 Tail Types: Normal, V-Tail A, V-Tail B
- Motor Throttle Switch Assignment
- Dual Aileron and V-tail Differential
- Camber System
- Camber Preset
- 10 Flight Modes
- Dual rates and expo
- Preset Mixes: Flap-to-Aileron Curve, Aileron-to-Flap, Aileron-to-Rudder, Elevator-to-Flap
- Multirotor:
- Multirotor Channel Inputs - ALT (Altitude), ROL (Roll), PIT (Pitch), YAW
- Multirotor Checklists, Warnings and Voice Alerts
- Simplified Multirotor Flight Mode Setup and Switch Assignment
Band: 2.4GHzSpecs
Channels: 8
Frame Rate: 11/22 Ms
Model Memory: 250
Modes: Mode 2,Mode 1,Mode 4,Mode 3
Modulation: DSMX
Range: Full
Resolution: 2048
SD Card/Airware Capable: Yes
Telemetry: Yes
Transmitter (Tx) Battery Type: 2000mAh Li-Ion- Specs
Product Specifications
Part Number SPMR8000 Band 2.4GHz Channels 8 Frame Rate 11/22 Ms Model Memory 250 Modes Mode 2,Mode 1,Mode 4,Mode 3 Modulation DSMX Range Full Resolution 2048 SD Card/Airware Capable Yes Telemetry Yes Transmitter (Tx) Battery Type 2000mAh Li-Ion - Reviews
