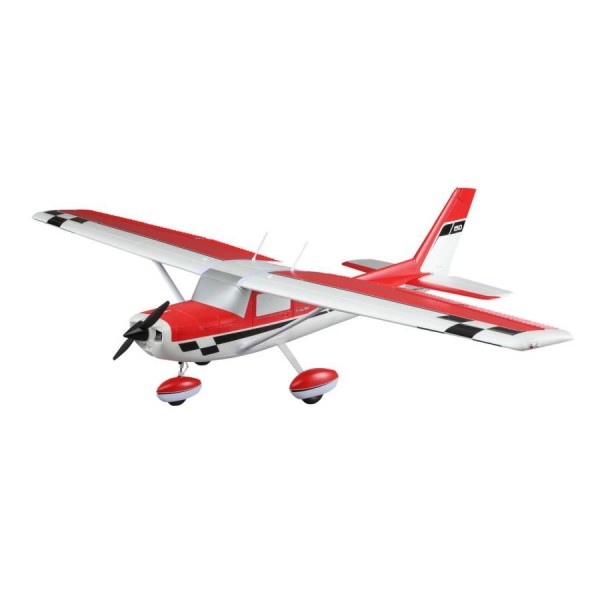

Enjoying a giant-scale flying experience is easier than you might think with the Carbon-Z® Cessna 150. This Bind-N-Fly® Basic version includes a brushless power system and comes with the servos and a Spektrum™ AS3X receiver with optional SAFE® Select technology installed.
- (1) Carbon-Z Cessna 150 BNF Basic
- (1) User Manual
- Full-range, 6+ Channel DSMX®/DSM2® transmitter
- 4-6S 4000-7000mAh LiPo battery
- 4-6S compatible LiPo charger
Approximate Assembly Time: Less than 1 Hour
- A large sport-scale model that can do it all
- Wide flight envelope - mild to wild
- Scale details include LED lights, flaps, wheel pants and more
- No tools required for field assembly
- Innovative hands-free servo connection system
- Two-piece wing assembly for easy transport
- AS3X® receiver with optional SAFE Select technology
- Powerful brushless motor with 60A ESC
- Large, easy-access battery hatch for 4S-6S 4000-7000mAh LiPo packs
- Innovative Hands-Free Servo Connection System
- Vibrant Aerobat trim scheme
- Rough-field landing gear with shock-absorbing nose strut
- Optional floats
CG (Center of Gravity): 95-105mm back from leading edge @ wing root
Completion Level: Bind-N-Fly Basic
Flying Weight: 8.9 -9.9 lbs (4.0 - 4.5kg)
Length: 61.8 in (1570mm)
Minimum Required Radio: 5+ channels
Minimum Speed Control: 60-amp brushless (installed)
Motor Size: 50-size brushless outrunner (installed)
Propeller Size: 15 x 7 Electric
Recommended Motor Battery: 4-6s 4000 - 7000mAh LiPo (Not Included)
Servos: (4) 26-gram MG mini servos, (2) 13-gram micro servos (installed)
Spinner Size: 62mm
Stabilizer Tube Length: 272mm
Stabilizer Tube OD: 7mm
Wing Area: 1053 sq in (68 sq dm)
Wing Tube Length: 730mm
Wing Tube OD: 14mm
Wingspan: 83.7 in (2125mm)
Product VideosIncredible Scale Detail and LED Lights:
This stunning reproduction of one of Cessna's most popular aircraft measures 84-inches from wingtip to wingtip and comes loaded with scale details. These include things like pre-installed LED lighting, a shock-absorbing nose strut, fully functional flaps and wheel pants. Other scale touches include molded panel lines and control surfaces that are corrugated like those on the full-scale version.
Wide Flight Envelope:
The inherent stability of the high-wing Cessna design and smooth response of the AS3X receiver will immediately put newer pilots at ease. Experienced pilots will love the wide flight envelope and abundance of power. Slow and scale flight, lazy 8s, knife-edge maneuvers, rolling circles - it can do it all.
Brushless Power System and Functional Flaps:
The powerful brushless motor is paired with a 60A ESC that can handle a variety of 4-6S 4000-7000mAh batteries so you can make the flying experience as mild or wild as you want. All this available power, along with the functional flaps, gives the airplane impressive short-field takeoff and landing performance, too.
Fast Field Assembly and Hands-Free Servo Connectors:
After initial assembly, you won't need any tools to attach or remove the wings at the field. You don't even have to touch the servo leads. The innovative Hands-Free Servo Connection System automatically plugs in the wing servos and LED light connectors whenever you attach the wing.
AS3X Receiver with Optional SAFE Select Technology:
The model's AS3X (Artificial Stabilization - 3-aXis) receiver works behind the scenes to smooth out the effects of wind and turbulence. The result is a sense of stability and precision that makes you feel like you're flying an expertly tuned aircraft.
This receiver also features optional SAFE Select technology that you can turn on and off with the flip of a transmitter switch.
Optional Float Set and Accessories Available Separately:
You have the option of installing floats with a working water rudder so you can fly off water (requires EFLA5600 and EFLA5605, both sold separately). Installation is easy and can be done in just a few minutes.
Part Number EFL1450 Kit Type No Battery or TX Approximate Assembly Time Less than 1 Hour CG (Center of Gravity) 95-105mm back from leading edge @ wing root Completion Level Bind-N-Fly Basic Flaps Yes Flying Weight 8.9 -9.9 lbs (4.0 - 4.5kg) Length 61.8 in (1570mm) Material Z-Foam Minimum Required Radio 5+ channels Minimum Speed Control 60-amp brushless (installed) Motor Size 50-size brushless outrunner (installed) Propeller Size 15 x 7 Electric Recommended Motor Battery 4-6s 4000 - 7000mAh LiPo (Not Included) Servos (4) 26-gram MG mini servos, (2) 13-gram micro servos (installed) Spinner Size 62mm Stabilizer Tube Length 272mm Stabilizer Tube OD 7mm Wing Area 1053 sq in (68 sq dm) Wing Tube Length 730mm Wing Tube OD 14mm Wingspan 83.7 in (2125mm)
