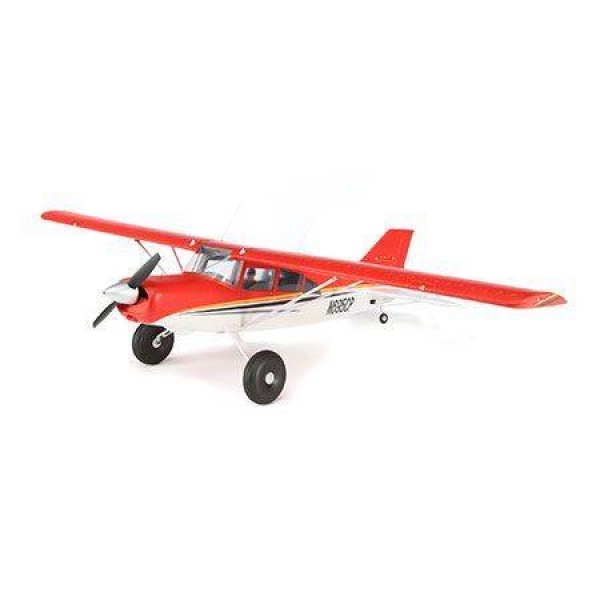

Take flight and even land in waterWhile America geared up to go higher and faster, B.D. Maule was hard at work in a quiet country corner developing his vision of an aircraft that would give pilots the ability to do the exact opposite—practically. Maule Air Inc. has flourished ever since by delivering planes around the globe with renowned STOL capability and value. The E-flite® Maule M-7 1.5m park flyer is an officially licensed tribute to the full-size marvel that includes an abundance of scale detail, rugged landing gear, flaps and an optional-use float set so you can conquer any terrain year-round.
The E-flite® Maule M-7 1.5m captures the Short Take Off and Landing (STOL) capabilities, along with the unmistakable lines and character of the rugged full-scale design series. From the crystal-clear cabin windows and interior detail to an abundance of exterior features including LED lights, antennas, vortex generators and riveted panels, the Maule breaks new ground in park flyer-size civilian scale authenticity. EPO construction results in a lightweight yet durable airframe. The two-piece wing is equipped with operational flaps for outstanding slow flight performance and STOL capabilities. The factory-installed 3S and 4S compatible brushless power system delivers plenty of performance for flying from smooth or rough surfaces using the oversized wheels, or when flying from water using the included float set.Includes:
- (1) Maule M-7 1.5m BNF Basic
- (1) Spektrum AR636 Receiver
- (1) 15 BL Motor
- (1) 40A Brushless ESC
- (7) 9g Servo
- (1) Landing Gear Assembly
- (1) Float Set
- (1) User Manual
Requires:
- Full-range, 6+ Channel DSMX®/DSM2® transmitter
- 2200–3200mAh 3–4S LiPo flight battery
- Compatible LiPo charger
Notes:
AS3X Receiver with Optional SAFE Select Technology
This Bind-N-Fly® Basic model features a Spektrum receiver integrated with AS3X® (Artificial Stabilization – 3-aXis) technology to smooth out the effects of wind and turbulence for the remarkable sense of stability and precision larger, expertly tuned aircraft enjoy.
If this is your first scale model or would like an extra margin of safety while getting familiar with the airplane, optional SAFE® Select flight protection can be enabled. No programming is required. Simply change up the binding sequence as directed in the manual.
With SAFE Select features enabled, you get:
Pitch and Bank Angle Limits
These keep the aircraft from rolling or pitching upside down. They also prevent excessive climb or dive angles during takeoff and landing.
Automatic Self-Leveling
Instantly returns the wings to level when the sticks are released.
Easy Switch Assignment-No Programming Required
The simple procedure for assigning a transmitter switch to turn SAFE Select features on and off doesn't require any programming and takes just a few seconds.CG (Center of Gravity): 55-65mmSpecs
Completion Level: Bind-N-Fly Basic
Control Throw (Flaps): 20mm take off 45mm land
Control Throw - High (Ailerons): 32mm up 27mm down
Control Throw - High (Elevator): 32mm up 32mm down
Control Throw - High (Rudder): 20mm left 20mm right
Control Throw - Low (Ailerons): 25mm up 20mm Down
Control Throw - Low (Elevator): 25mm up 25mm down
Control Throw - Low (Rudder): 15mm Left 15 mm right
Flaps: Yes
Flying Weight: 66 oz (1871 g)
Landing Gear: Yes
Length: 43.3 in (1100mm)
Material: Foam
Minimum Required Radio: 5+ (Sold Separately)
Minimum Speed Control: 40 amp
Motor Size: 1050 kv
Propeller Size: 11X7
Recommended Motor Battery: 2200-3200 3-4S LiPo
Retracts: No
Servos: 6 (Installed)
Wing Area: 557 sq in (35.9 sq dm)
Wingspan: 59 in (1500mm)Product Videos
Authentic Detail:Features Overview
As an officially licensed replica, this scale model features clear windows and interior detail including a pilot figure, plus complements to the scale outline including antennas, molded panel lines, rivets, vortex generators and functional LED lights.
Convenient Access:
You get direct access through a front top-hatch that makes flight battery changes simple and convenient when using a 3–4S LiPo pack from 2200–3200mAh. A concealed hatch in the bottom offers easy access to the receiver resulting in a scale appearance that’s more authentic.
Versatile Brushless Power:
The factory-installed power system features a high-power brushless outrunner motor and ESC that’s versatile enough to run either a 3S or 4S LiPo battery (sold separately). Either way, you enjoy thrust that hauls this Maule into the air with ease.
Easy to Assemble:
No glue is required to complete assembly. The wing features a two-piece, plug-in design with folding struts that makes transport and storage convenient. The horizontal stabs slide into place and are secured with screws so assembly is quick and easy.
Functional Flaps:
Like the full-size counterpart, the factory-installed flaps provide aerodynamic braking when deflected and increase lift substantially for stable slow-speed flight and remarkable STOL performance.
Floats Included:
The included float set features a water rudder for superb steering control. The custom strut package ensures accurate alignment so that setup to fly from water is a breeze.- Specs
Product Specifications
Part Number EFL5350 Kit Type BNF Basic CG (Center of Gravity) 55-65mm Completion Level Bind-N-Fly Basic Control Throw (Flaps) 20mm take off 45mm land Control Throw - High (Ailerons) 32mm up 27mm down Control Throw - High (Elevator) 32mm up 32mm down Control Throw - High (Rudder) 20mm left 20mm right Control Throw - Low (Ailerons) 25mm up 20mm Down Control Throw - Low (Elevator) 25mm up 25mm down Control Throw - Low (Rudder) 15mm Left 15 mm right Flaps Yes Flying Weight 66 oz (1871 g) Landing Gear Yes Length 43.3 in (1100mm) Material Foam Minimum Required Radio 5+ (Sold Separately) Minimum Speed Control 40 amp Motor Size 1050 kv Propeller Size 11X7 Recommended Motor Battery 2200-3200 3-4S LiPo Retracts No Servos 6 (Installed) Wing Area 557 sq in (35.9 sq dm) Wingspan 59 in (1500mm) - Reviews
