- Overview
Overview

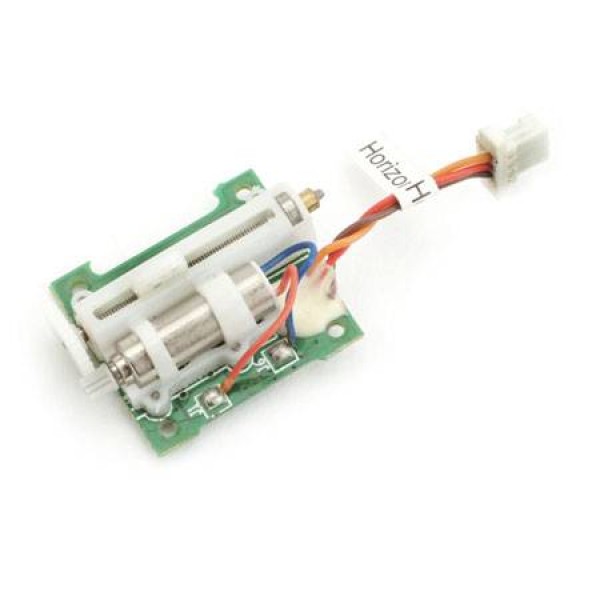

Spektrum 2.0-Gram Performance Linear Long Throw Servo, 15mm Lead
features
- Performance Micro servo for use with AS3X receivers
- 9.1 mm servo throw
- Compact footprint
- JST-SHR Connector
- Single Bearing for friction free operation
- Replacement servo for Blade Nano MCPX
Bearing: SingleSpecs
Bushing Or Bearing: Bearing
Connector Type: JST-SHR 1.0 mm
Connector Wire Length: 15mm
Gear Type: Nylon
Height: 0.33" (8.20mm)
Length: 0.87" (22mm)
Servo Operating Voltage: 3.2-4.2V
Servo Type: Analog
Speed: 0.14 sec end-to-end
Torque: 3.5 oz (100 g ) @ 4.2V
Weight: 0.07 oz (2.00 g)
Width: 0.66" (16.9mm)- Specs
Product Specifications
Part Number SPMSH2025L Bearing Single Bushing Or Bearing Bearing Connector Type JST-SHR 1.0 mm Connector Wire Length 15mm Gear Type Nylon Height 0.33" (8.20mm) Length 0.87" (22mm) Servo Operating Voltage 3.2-4.2V Servo Type Analog Speed 0.14 sec end-to-end Torque 3.5 oz (100 g ) @ 4.2V Weight 0.07 oz (2.00 g) Width 0.66" (16.9mm) - Reviews
