- Overview
Overview

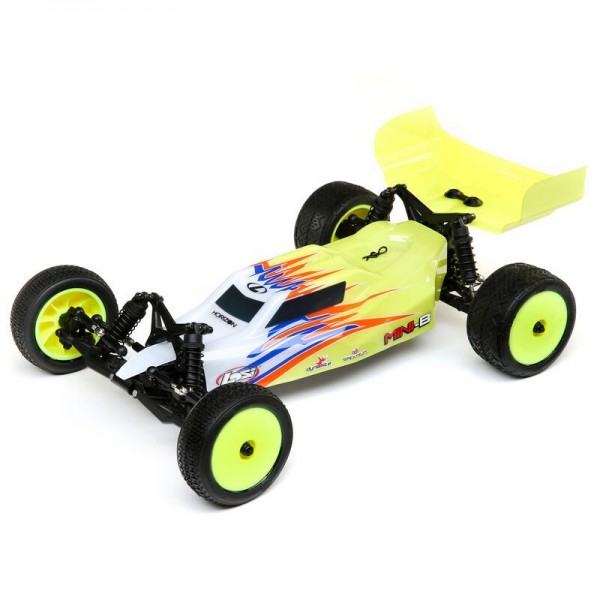

The legendary Losi® Mini's are back! Featuring TLR® 2wd buggy engineering and performance in a 1/16th package, the Losi Mini-B Buggy is terrain-tearing and track-ready. The larger 1/16th scale is stable on the track generating quicker speeds and improved handling. With suspension geometry updated and taken from the TLR® 22 platform and the inclusion of waterproof electronics with a 2.4Ghz radio system, you get more from a Mini than ever before. It features a mid-motor configuration for better balance, oil filled shocks, and a full range of option parts all in a total ready-to-run package. Everything about this buggy is designed to deliver a jaw-dropping experience.
Includes:
- (1) Losi® 1/16 Mini-B™ RTR 2WD Buggy
- (1) 2.4GHz ESC/Receiver combo (installed)
- (1) Dynamite® 47T 280 Brushed Motor (installed)
- (1) Spektrum™ SX107 Micro Metal Gear Servo (installed)
- (1) Dynamite® 7.4V 650mAh 2S 20C LiPo Hardcase: EC2
- (1) Dynamite® USB 2S LiPo charger
- (1) 3-CH 2.4GHz Transmitter
- (4) AAA batteries for transmitter
- (1) Product Manual
features
- Scaled down version of the 1/10 22
- Mid Motor Configuration
- Elastomer Battery Strap System
- Aluminum Chassis
- Threaded Oil Filled Shocks
- Fully assembled and ready-to-run
- HRZ 2-in-1 ESC/RX
- Dynamite® Brushed 280-sized 47T motor
- Spektrum™ SX107 metal gear servo
- Taper Pin Front and BK Bar Rear Tires with Dish Wheels
- Full Ball Bearings (less steering)
- Servo Saver
- Waterproof electronics
- 22 Suspension Geometry
- 650mAh 2S Lipo Battery with EC2 Connector and USB 0.5A Charger
- Option Parts Availability
- Three Color Options
Approximate Assembly Time: Less than One HourSpecs
Ball Bearings: Complete, Less Steering
Battery: Included
Battery Input Lead: EC2
Body: Mini-T 2.0, Polycarbonate, Screened
Brakes: Integral with ESC
Bushing Material: Plastic
Charger: Included
Chassis: 1.5mm Plate, 6061-T6 Aluminum
Completion Level: Ready-To-Run
Differential: Bevel Gear
Drivetrain: 2WD
Drive Type: Forward/Brake/Reverse
Power Type: Electric
Gear Pitch: 0.5MOD
Motor Size: 280
Motor Type: Brushed
Pinion: 18T
Product Height: 4" (102 mm)
Product Length: 10.7" (272 mm)
Product Width: 7" (178 mm)
Radio: Included
Receiver: Included
Scale: 1/16
Servos: Included
Shock Type: 7mm bore, oil filled
Speed Control: Included
Spur Gear: 60T
Suspension: Independent
Tire Tread: Tapered Pin Front, BK Bar Rear
Vehicle Type: Buggy
Water-Resistant: Yes
Wheelbase: 7.5 in (190.5mm)
Wheel Type: DishProduct Videos
Scaled-Down Version:Features Overview
Featuring TLR 2WD buggy engineering and performance in a 1/16th package, the Losi Mini-B Buggy is terrain-tearing and track-ready. The larger 1/16th scale is stable on the track generating quicker speeds and improved handling.
Mid Motor Configuration:
The Mini-B comes standard with a mid-motor configuration. This not only replicates the 1/10th version but also provides a better balanced chassis allowing for better performance on multiple surfaces and also balances out steering and traction.
Aluminum Chassis:
The Mini-B has been designed with a 1.5mm thick 6061-T6 Aluminum chassis plate. The aluminum chassis provides more strength and durability while vastly improving performance.
Threaded Oil Filled Shocks:
The injection-molded shocks feature threaded shock collars allowing for easy preload/ride height adjustments. Additionally, the shock bodies feature a bottom loading, re-buildable shock cartridge with dual o-rings to help keep the oil in the shocks.
Ready To Run:
The Mini-B comes fully assembled and ready to rock. Just install the included AAA batteries in the transmitter, charge the included LiPo battery with the included charger.
Dynamite Reaction 2.0 LiPo Battery:
The Mini-B comes equipped with a Dynamite Reaction 2.0 7.4V 650mAh 2S 20C LiPo Battery for excellent performance and run time.
USB Charger:
When we say entirely ready to run, we mean it. The Mini-B comes with a USB charger making charging your battery easy and convenient.
2.4Ghz Transmitter and Receiver:
With features like throttle/steering reversing, throttle/steering travel adjust, the included 2.4Ghz transmitter packs a lot of features in a small package with the interference-free connection.
Taper Pin Front Tires:
Mounted on dish wheels, the Taper Pin front tires replicate one of the most popular tires from Losi.
BK Bar Rear Tires:
Mounted on dish wheels, the BK Bar rear tires replicate one of the most popular tires from Losi.
Option Parts:
The Mini-B has a full line of option parts available from aluminum upgrades, brushless motor, and much more.- Specs
Product Specifications
Part Number LOS01016T3 Scale 1/16 Drivetrain 2WD Kit Type RTR Approximate Assembly Time Less than One Hour Ball Bearings Complete, Less Steering Battery Included Battery Input Lead EC2 Body Mini-T 2.0, Polycarbonate, Screened Brakes Integral with ESC Bushing Material Plastic Charger Included Chassis 1.5mm Plate, 6061-T6 Aluminum Completion Level Ready-To-Run Differential Bevel Gear Drivetrain 2WD Drive Type Forward/Brake/Reverse Power Type Electric Gear Pitch 0.5MOD Motor Size 280 Motor Type Brushed Pinion 18T Product Height 4" (102 mm) Product Length 10.7" (272 mm) Product Width 7" (178 mm) Radio Included Receiver Included Scale 1/16 Servos Included Shock Type 7mm bore, oil filled Speed Control Included Spur Gear 60T Suspension Independent Tire Tread Tapered Pin Front, BK Bar Rear Vehicle Type Buggy Water-Resistant Yes Wheelbase 7.5 in (190.5mm) Wheel Type Dish - Reviews
