- Overview
Overview

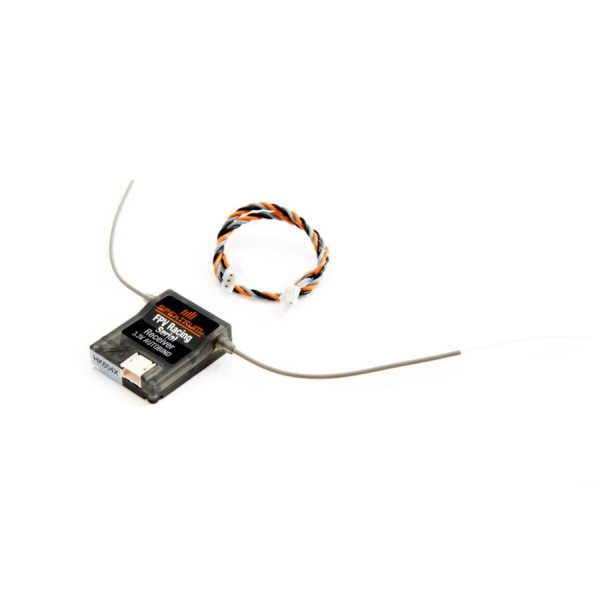

The Spektrum DSMX Quad Race receiver provides a high speed serial data connection with up to 20 channels. It's small and lightweight providing an excellent receiver for even the smallest of applications. It also features Auto-Bind so you no longer need to carry a separate receiver to bind. Dual antennas provide receiver diversity for solid signal and the long coax antennas help to provide maximum signal strength in all orientations for challenging installations where carbon fiber, metal and batteries shield the antenna. And with Spektrum DSMX 2.4GHz RF protocol the Spektrum DSMX Quad Race receiver provides unsurpassed range and interference free performance for quad racing.
features
- Antenna Diversity
- Auto-bind
- Serial port supports SRXL or Remote/Satellite Receiver
- 11ms speed with exceptional range and interference free operation
- Weighs only 3 grams
- Works with most flight controllers including the Naze32, CC3D, SP F3 and more*
- *Requires SRXL or Remote/Satellite connection
Antenna Length: 2.4 in (62mm)Specs
Band: 2.4GHz
Bind Method: Auto-Bind
Channels: 20
Data Port: No
Failsafe: Yes
Height: 0.3 in (8mm)
Input Voltage: 3.3V
Length: 1.0 in (26mm)
Modulation: DSMX
Number of Receivers: 1
Range: Full
Resolution: 2048
Type: Micro Serial Receiver
Weight: 0.13 oz (3.6g)
Width: 0.8 in (21mm)- Specs
Product Specifications
Part Number SPM4648 Antenna Length 2.4 in (62mm) Band 2.4GHz Bind Method Auto-Bind Channels 20 Data Port No Failsafe Yes Height 0.3 in (8mm) Input Voltage 3.3V Length 1.0 in (26mm) Modulation DSMX Number of Receivers 1 Range Full Resolution 2048 Type Micro Serial Receiver Weight 0.13 oz (3.6g) Width 0.8 in (21mm) - Reviews
