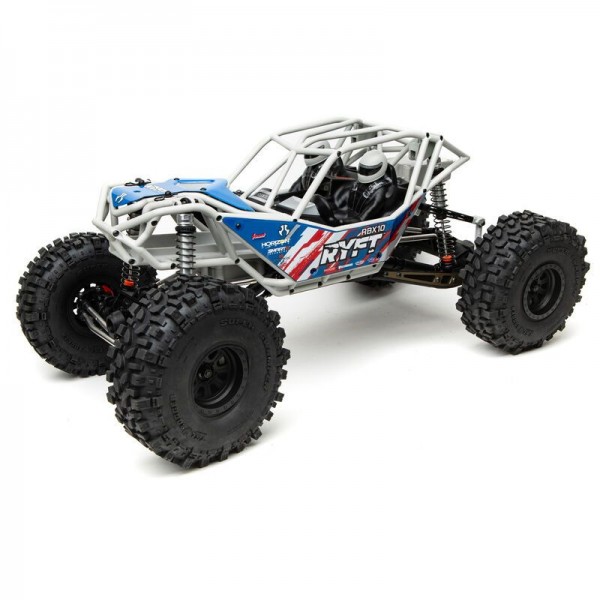

Axial RBX10 Ryft 1/10 4wd Rock Bouncer KIT, Gray

Axial (AXI) Logo Axial RBX10 Ryft 1/10 4wd Rock Bouncer KIT, Gray
Axial part #AXI03009, RBX10 Ryft Rock Bouncer Kit. A 1/10 scale 4WD assembly kit. Take on challenging terrain at high speeds safely with the robust tube chassis, 4-link suspension and more

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.


Axial® introduces another first with the 1/10 scale RBX10™ Ryft™ 4WD, a kit that allows intermediate level RC drivers to experience the thrills of rock bouncer off-road action. Full-size rock bouncers refuse to stop — or even back down on the throttle — when facing steep climbs and massive rocks. So does the RBX10™ Ryft™ 4WD. This ground-up new Axial® vehicle handles lots of abuse and loads of power!

The RBX10™ Ryft™ 4WD's robust, custom tube chassis is engineered from a high-strength composite plastic that withstands the hard knocks of RC off-roading — even while moving at high speeds over difficult off-road terrain. Both the front and rear axles boast a durable one-piece, molded plastic, solid axle design and realistic metal differential covers. Officially licensed Interco TSL Super Swamper Bogger tires on Raceline Monster wheels do their part to tame wild tracks, aided by a 4-link suspension and adjustable, long travel front and rear oil shocks. These features, plus a full-time 4WD transmission, make the RBX10™ Ryft™ an exciting vehicle to take on tough challenges at full throttle.

The Ryft™ kit comes with a clear body for finishing in your favorite colors, plus decals and realistic interior details. Many option parts are also included: spool/locker, rear aluminum link plates, rear sway bar, and parts for a 2-speed or single-speed transmission setup (servo not included). Build and finish the kit as you wish and complete it with your choice of radio system, motor, ESC and battery. Then, enjoy rock bouncing off-road driving over trails, dirt, gravel, rocks and more, with an RC vehicle that's engineered to take it — the Axial® RBX10™ Ryft™ 4WD.


  • (1) Axial® RBX10™ Ryft™ 1/10 4WD Kit
  • (1) Optional 2-Speed Set
  • (1) Optional Sway Bar Set
  • (1) Optional Differential Spool
  • (1) Optional Lower Link Plate Rear
  • (1) Product Manual


  • (1) Radio System
  • (1) Steering Servo
  • (1) ESC and Motor
  • (1) LiPo Battery and Compatible Charger
  • (1) Micro Metal Gear Servo (for 2-speed configuration)


  • Strong tube chassis design
  • Full-time 4WD transmission
  • Solid front and rear axles with realistic metal differential covers
  • Hardened steel universal axle set
  • Tough, large diameter WB11 Wildboar™ driveshafts
  • 4-Link suspension system
  • Long travel front and rear oil-filled shocks
  • Officially licensed Raceline Monster wheels
  • Simulated disc brakes for extra realism
  • Interco Super Swamper TSL (Three Stage Lug) Bogger tires
  • Kit also includes option parts


Ball Bearings: Full set
Battery: Sold Separately
Brakes: Integral with ESC (ESC not included)
Bushing Material: Metal
Charger: Sold Separately
Chassis: Injection molded plastic
Completion Level: Kit
Differential: Bevel gear
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Front Track: 12.75" (323.8mm)
Power Type: Electric
Gear Pitch: MOD 1
Ground Clearance: 3.25" (82.5mm)
Motor Type: Brushless - Sensored
Pinion: 17T
Product Height: 8.75" (222 mm)
Product Length: 21.5" (546 mm)
Product Weight: 7.26lbs (3.29kg)
Product Width: 12.75" (324 mm)
Radio: Sold Separately
Receiver: Sold Separately
Scale: 1/10
Servos: Sold Separately
Shock Type: Oil-filled, Front 5.11 in (130mm), Rear 5.70 in (145mm
Speed Control: Sold Separately
Spur Gear: 53T
Suspension: Solid axle 4-link
Tire Tread: Interco TSL Bogger
Vehicle Type: Rock Racer
Water-Resistant: Yes
Wheelbase: 15.25" (387 mm)
Wheel Type: Raceline Monster
Wheel Width: 1.6 in (40.64mm)

Product Videos

Features Overview

Custom Tube Chassis:
Axial® is known for custom tube chassis that are strong and well-designed. The Axial® RBX10™ Ryft™ chassis is all that and much more, with the resilience to withstand the hard knocks of rock bouncing.

Front and Rear Solid Axles:
The RBX10™ Ryft™ 4WD is engineered to carry a lot of power over punishing off-road tracks — as evidenced by the durable one-piece, molded plastic, solid axle design of its front and rear axles. The axles also feature realistic metal differential covers in a raw, unfinished appearance.

Interco Super Swamper TSL Booger Tires:
The Ryft™ 4WD's licensed replica Bogger tires feature a directional tread pattern with the patented Interco TSL lug design. The custom siping follows a pattern used by many professional competitive rock bouncers who want an aggressive tire that performs as good as it looks.

Aluminum Long Travel Shocks:
The oil-filled shocks feature threaded bodies and a single coilover spring, plus an aluminum shock cap and pre-load adjustment for tuning the suspension to achieve the best dampening rate. The 12mm bore size allows more fluid volume for better performance.

Raceline Monster Wheels:
In full-size, Raceline is the most popular wheel for extreme off-road duty — with a show-quality finish and proven ability to take abuse. Officially licensed Raceline Monster wheels give the 1/10 scale Ryft™ authentic looks and the strength to handle anything you can dish out.

Option Parts Included:
The RBX10™ Ryft™ 4WD kit comes with parts needed to build it with a single or two-speed transmission (servo not included), as well as optional rear sway-bar, rear aluminum link plates, and spool/locker.

Product Specifications

Part NumberAXI03009
Kit TypeUnassembled Kit
Ball BearingsFull set
BatterySold Separately
BrakesIntegral with ESC (ESC not included)
Bushing MaterialMetal
ChargerSold Separately
ChassisInjection molded plastic
Completion LevelKit
DifferentialBevel gear
Drive TypeForward/Brake/Reverse
Front Track12.75" (323.8mm)
Power TypeElectric
Gear PitchMOD 1
Ground Clearance3.25" (82.5mm)
Motor TypeBrushless - Sensored
Product Height8.75" (222 mm)
Product Length21.5" (546 mm)
Product Weight7.26lbs (3.29kg)
Product Width12.75" (324 mm)
RadioSold Separately
ReceiverSold Separately
ServosSold Separately
Shock TypeOil-filled, Front 5.11 in (130mm), Rear 5.70 in (145mm
Speed ControlSold Separately
Spur Gear53T
SuspensionSolid axle 4-link
Tire TreadInterco TSL Bogger
Vehicle TypeRock Racer
Wheelbase15.25" (387 mm)
Wheel TypeRaceline Monster
Wheel Width1.6 in (40.64mm)
