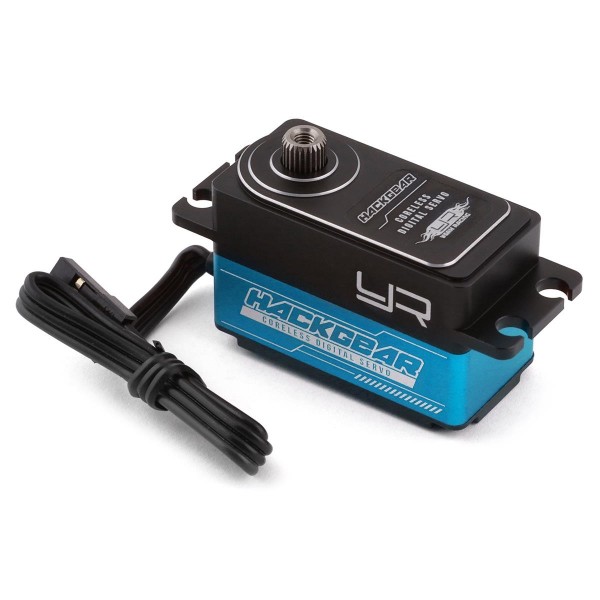

Yeah Racing 10kg Low Profile Coreless Metal Gear Servo. This full aluminum case servo is a great option for 1/10 on-road and drift applications. Bearing supported titanium and copper gears are used for a lightweight and precise drivetrain. This servo is high voltage capable and boasts an impressive 10.99kg-cm with a speed of 0.08/60° sec at 8.4v. Package includes one servo, two servo horns and mounting hardware.
features
- Great choice for 1/10 Drift and On Road RC
- Full Aluminum Case
- Titanium and copper gears
- Digital precision provides great accuracy and performance
- Ball bearing-supported output 25T shaft
Type: DigitalSpecs
Operating Voltage Range: 4.8-8.4V DC
Bearing Type: Dual Ball Bearings
Speed (4.8V): 0.10/60° sec
Speed (6.0V): 0.09/60° sec
Speed (7.4V): 0.082/60° sec
Speed (8.4V): 0.08/60° sec
Torque (4.8V): 93.32oz-in (6.72kg-in)
Torque (6.0V): 110.26oz-in (7.94kg-in)
Torque (7.4V): 135.67oz-in (9.77kg-in)
Torque (8.4V): 152.62oz-in (10.99kg-in)
Size: 40.9x20x25.2mm
Motor Type: Coreless
Dead Band Width: 2us
Connector Wire Length: 11.8 in. / 300 mm.
Connector Wire Gauge: 25 AWG Black Wire
Connector Type: Futaba
Gear Type: Titanium Gears + Copper Gears
Frequency: 330Hz
Shaft: 25T- Specs
Product Specifications
Part Number YEA-YE-0033BU Type Digital Operating Voltage Range 4.8-8.4V DC Bearing Type Dual Ball Bearings Speed (4.8V) 0.10/60° sec Speed (6.0V) 0.09/60° sec Speed (7.4V) 0.082/60° sec Speed (8.4V) 0.08/60° sec Torque (4.8V) 93.32oz-in (6.72kg-in) Torque (6.0V) 110.26oz-in (7.94kg-in) Torque (7.4V) 135.67oz-in (9.77kg-in) Torque (8.4V) 152.62oz-in (10.99kg-in) Size 40.9x20x25.2mm Motor Type Coreless Dead Band Width 2us Connector Wire Length 11.8 in. / 300 mm. Connector Wire Gauge 25 AWG Black Wire Connector Type Futaba Gear Type Titanium Gears + Copper Gears Frequency 330Hz Shaft 25T - Reviews
