- Overview

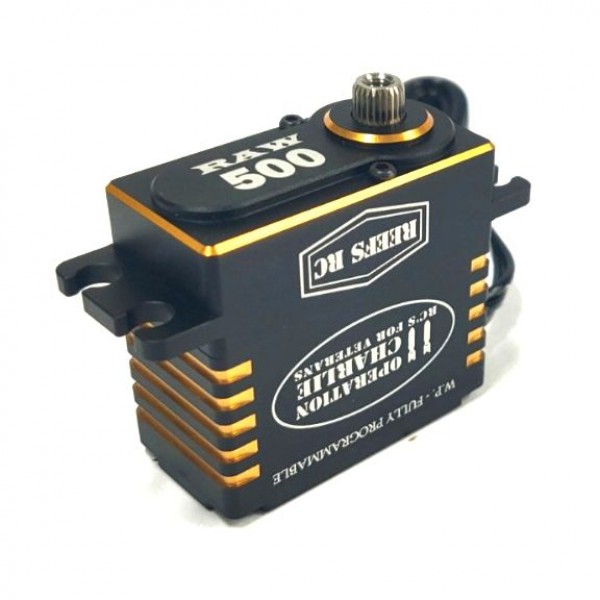

This is a Reefs RC part #REEFS120, Limited Edition Operation 11 Charlie Raw500 Gold High Torque High Speed Brushless Servo
features
- LIMITED EDITION MATTE BLACK & GOLD RAW500
- High Torque High Speed Brushless Servo
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable w/ REEFS Software
- REEFS LINK required for Programming
Voltage 4.8V - 8.4VSpecs
Internal: Steel Gears / All CNC Aluminum Casing
Bearing Type: 2 Ball Bearings / Weight: 2.75oz
Dimension: 1.57 x .79 x 1.5 (LWH)
Torque: 450oz @ 6v/ 500oz @7.4v/ 565oz @8.4v
Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
Spline: 25T / Dead Band Width: 2¦Ìs
BEC Not Req. Recommended for max performanc- Specs
Product Specifications
Part Number SEHREEFS120 Internal Steel Gears / All CNC Aluminum Casing Bearing Type 2 Ball Bearings / Weight: 2.75oz Dimension 1.57 x .79 x 1.5 (LWH) Torque 450oz @ 6v/ 500oz @7.4v/ 565oz @8.4v Speed .11sec @6v/.095sec @7.4v/.08sec @8.4v Spline 25T / Dead Band Width: 2¦Ìs - Reviews
