- Overview
Overview
Officially licensed based on a classicThis 4WD juggernaut is based on the Vaterra® Ascender™ chassis – an incredibly scale off-road platform that is engineered for extreme off-road environments. It comes completely assembled and equipped with waterproof electronics so you can drive it anywhere a full-scale off-road truck would go.
Requires:
- 2S Shorty Lipo Battery Pack with EC3™ connector (see Completion Guide)
- Battery Charger
features
- Ascender™ Stamped-Steel Ladder-Frame Chassis "Patent Pending"
- 4-Length Adjustable Wheelbase
- Licensed 1986 Chevrolet® K-5 Blazer Body
- Crawler Style Bumpers
- Adjustable ‘Rock Slider’ Side Bars
- 3-Link Panhard Bar Front Suspension
- 4-Link Rear Suspension
- Aluminum Suspension Links
- Floating Battery Tray
- Realistic Axle Housings
- One-Piece, Low-Profile Locker/Ring Gear
- Heavy Duty CV Front Shafts
- Single-Speed, Metal Gear Transmission
- Oil-Filled, Threaded Shocks
- Dynamite brushed 35T crawler motor and waterproof ESC
- Licensed Interco 1.9 Super Swamper® Tires
- Spektrum DX2E 2.4GHz radio system with batteries
- Spektrum metal gear steering servo
Ball Bearings: Complete VehicleSpecs
Body: 1982 Chevy K5 Blazer Painted
Chassis: Steel Ladder Frame
Completion Level: Ready-To-Run
Differential: Locked
Drivetrain: 4WD
Final Drive Ratio: 7.86:1
Front Track: 8.66 in (220mm)
Gear Pitch: 48-Pitch
Ground Clearance: 1.06 in (37mm)
Height: 9 in (229mm)
Internal Gear Ratio: 4.05:1
Length: 21.25 in (540mm)
Motor Size: 35T 540 size
Motor Type: Brushed
Pinion: 14T
Radio: Spektrum DX2E 2 Channel
Rear Track: 8.66 in (220mm)
Servos: Included
Shock Type: Oil filled, threaded, injection molded
Size/Scale: 1/10
Speed Control: Included
Spur Gear: 86T
Suspension: Multi-Link Solid Axle
Tire Compound: Blue
Tire Diameter: 4.5 in (115mm)
Tire Tread: Licensed Super Swamper TSL SX
Vehicle Type: Rock Crawler
Weight: 4 lbs (1.8kg)
Wheel Diameter: 1.9 in (48.26mm)
Wheel Type: 8 Spoke Silver
Wheel Width: 1.1 in (27mm)
Wheelbase: 12.36 in (314mm) / 11.9 in (302mm) / 11.4 in (290mm) / 10.95 in (278mm)
Width: 9 in (229mm)Product Videos
Stamped-Steel Ladder Frames with Adjustable Wheelbase:Features Overview
Steel, C-channel frames form the backbone of the Ascender™ chassis and give you four wheelbase lengths to choose from: 12.36 in (314mm), 11.9 in (302mm), 11.4 in (290mm) and 10.95 in (278mm). Markings on the frames make adjustment easy.
Heavy Duty Suspension:
The chassis rides on a 3-link panhard bar front suspension and a 4-link rear suspension. All suspension links are machined from aluminum to handle the most punishing conditions. Oil-filled, threaded shocks soak up the bumps and give you a variety of pre-load settings.
Metal Gear Transmission:
The single-speed, metal gear transmission is engineered for steep inclines and rugged, rocky terrain. Those seeking a broader range of speed and climb performance can upgrade to the optional two-speed transmission, sold separately.
Floating Battery Tray:
The battery tray floats over the front axle and is designed to accept 96mm shorty packs. Placing the weight of the battery over the front axle gives the front tires extra traction when crawling over rocks and tackling steep inclines.
Crawler Style Bumpers and Rock Slider Side Bars:
The front and rear bumpers feature molded tow hooks. An opening on the front bumper leaves plenty of room for a winch cable. If you want to try different 1/10-scale bodies later on, the side bars and bumpers can be moved to accommodate most of them.
Heavy Duty CV Front Shafts:
As with the rest of the drivetrain components, these have been designed to handle rugged terrain. They also allow up to 45 degrees of steering angle – more than most other trucks in this class.

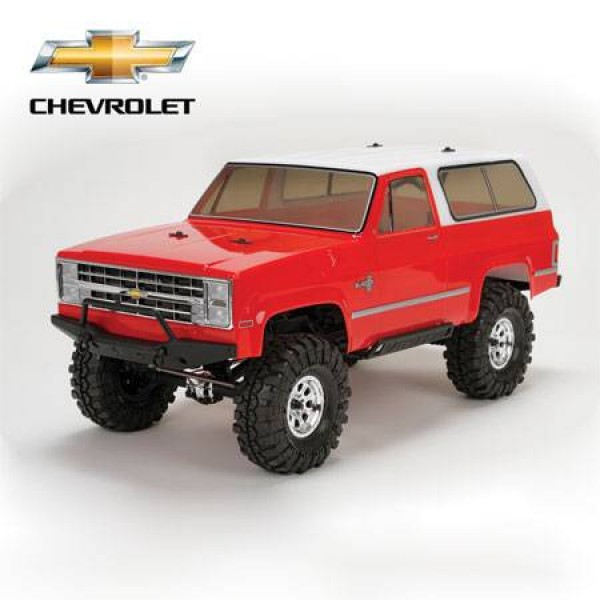

Licensed 1986 Chevrolet® K-5 Blazer® Body:
The painted, polycarbonate body is modeled after one of the most popular K-5 Blazers ever built. Scale touches include an injection-molded grille with headlight details and authentic Chevrolet badging. A set of detail stickers is also included.
Sticky Compound Interco Super Swamper Tires:
The realistic drivetrain and suspension are complemented by licensed replicas of Interco TSL SX Super Swamper® tires. Like the full-scale versions, their tread pattern and compound provide excellent grip at almost any angle.
Powerful Dynamite® Crawler Motor:
The potent Dynamite motor delivers all the torque you need to muscle over rock piles and power through mud and brush.
Waterproof Electronics:
The truck is equipped with a waterproof receiver, speed control and steering servo for driving in the real world, where things get wet and the weather is often less than perfect.
Spektrum™ DX2E 2.4GHz Radio System:
The included radio system gives you the unbeatable signal security and responsiveness of Spektrum DSMR® 2.4GHz technology. The DX2E transmitter is compatible with any Spektrum surface receiver so you can use it with other RC vehicles as well.- Specs
Product Specifications
Part Number VTR03014 Scale 1/10 Drivetrain 4WD Kit Type RTR Ball Bearings Complete Vehicle Body 1982 Chevy K5 Blazer Painted Chassis Steel Ladder Frame Completion Level Ready-To-Run Differential Locked Drivetrain 4WD Final Drive Ratio 7.86:1 Front Track 8.66 in (220mm) Gear Pitch 48-Pitch Ground Clearance 1.06 in (37mm) Height 9 in (229mm) Internal Gear Ratio 4.05:1 Length 21.25 in (540mm) Motor Size 35T 540 size Motor Type Brushed Pinion 14T Radio Spektrum DX2E 2 Channel Rear Track 8.66 in (220mm) Servos Included Shock Type Oil filled, threaded, injection molded Size/Scale 1/10 Speed Control Included Spur Gear 86T Suspension Multi-Link Solid Axle Tire Compound Blue Tire Diameter 4.5 in (115mm) Tire Tread Licensed Super Swamper TSL SX Vehicle Type Rock Crawler Weight 4 lbs (1.8kg) Wheel Diameter 1.9 in (48.26mm) Wheel Type 8 Spoke Silver Wheel Width 1.1 in (27mm) Wheelbase 12.36 in (314mm) / 11.9 in (302mm) / 11.4 in (290mm) / 10.95 in (278mm) Width 9 in (229mm) - Reviews
