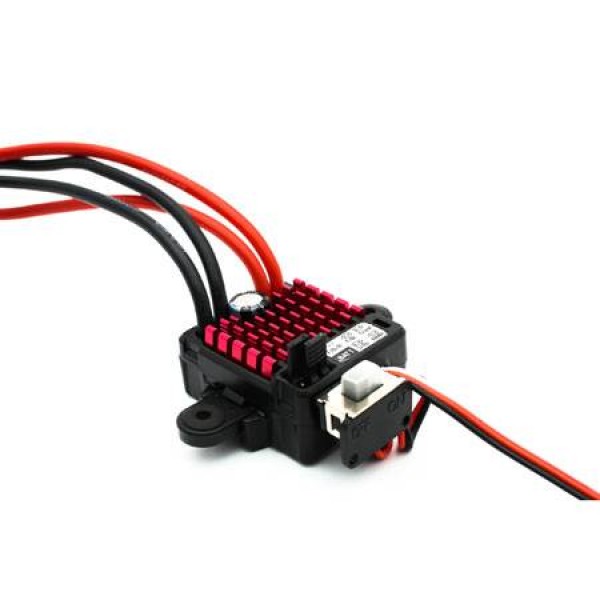

Dynamite WP 60A Fwd/Rev/Brake Brushed ESC

Overview

Overview

This waterproof**, brushed ESC is NiMH/LiPo compatible and offers forward/brake/reverse, forward/brake and crawler drive modes. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC.

Notes:

** While waterproof, this component has not been designed to immerse in water for long periods of time and should NOT be treated like a submarine. Please be sure to read through the general precautions listed in the user’s manual.

features

Waterproof for all weather operation**
2-3S LiPo and 5-9 cell NiMH compatible
Program functions changed with the use of jumper pins
Up to an 8T motor limit
Removable mounting tabs create an even smaller footprint and allow hard mounting in a wide variety of vehicles
Crawler running mode
Pre-wired with EC3 battery connector and RTR compatible motor bullets for easy installation

Specs

Auto Cutoff: Yes
BEC: Yes
BEC Continous Current: 2A
BEC Type: Linear
BEC Voltage: 5V
Battery Input Lead: 16AWG, 4.53 in (115mm)
Brakes: Yes
Drive Type: Forward/Brake/Reverse
Forward: Yes
Full On Resistance: .0008 ohms
Input Connector Types: EC3
Input Voltage: 2-3S Lipo, 5-9 cells NiMH/NiCd
Low-Voltage Cutoff Programmable: Yes
Reverse: Yes
Speed Control Type: Brushed
Time Delay Brake: Yes

Specs

Product Specifications

Part Number	DYNS2210
Auto Cutoff	Yes
BEC	Yes
BEC Continous Current	2A
BEC Type	Linear
BEC Voltage	5V
Battery Input Lead	16AWG, 4.53 in (115mm)
Brakes	Yes
Drive Type	Forward/Brake/Reverse
Forward	Yes
Full On Resistance	.0008 ohms
Input Connector Types	EC3
Input Voltage	2-3S Lipo, 5-9 cells NiMH/NiCd
Low-Voltage Cutoff Programmable	Yes
Reverse	Yes
Speed Control Type	Brushed
Time Delay Brake	Yes

Reviews

Be the first to review this product

Questions & Answers

Sort By:

Must be logged in to ask a question.

No questions yet. Be the first to ask the question!

Resources

Manuals

WP 60A FWD/REV Brushed ESC Manual - Multiligual (481 KB)
