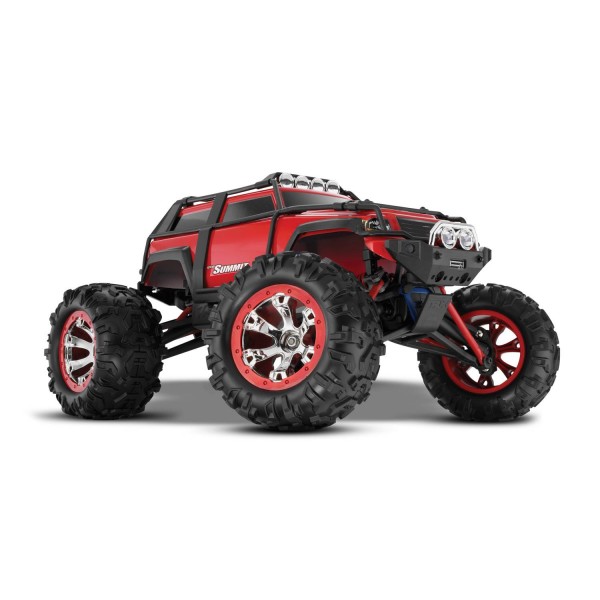

Summit VXL 1/16-Scale 4WD Electric Monster Truck with TQi Link and TSM

Barely as tall as a single tire on the 1/10 scale Summit, the new 1/16 Summit VXL will make you forget all about its super convenient and fun size while its massive suspension travel, screaming brushless horsepower, and 4-wheel drive traction tackle impossible terrain and turn "no way" into "no problem." Traxxas engineers have managed to pack all the big Summit's go-anywhere versatility into a smaller machine that knows no boundaries. Waterproof? Check. Velineon Brushless power system? Of course! Traxxas tough durability? You bet. Traxxas engineers built this one to run hard and fast with its extreme duty driveshafts, rugged ExoCage body, beefed up suspension damping, and scale Canyon AT ™ tires. Add an extra battery and a Traxxas speed connector (sold separately) and top speed climbs to 40+mph. The 1/16 Summit's just-right size lets you enjoy hours of off-road fun anywhere, anytime!

No detail was overlooked in our mission to bring all the capability, durability, and excitement of Traxxas' award-winning models to 1/16 scale for fast, affordable R/C fun. The Summit is built on the race-winning, track-proven innovation of the Revo and E-Revo models. The standard-bearer of design excellence, the Revo's F1-inspired, rocker-actuated suspension has been expertly adapted to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. The suspension and electronics are fully integrated into the semi-monocoque chassis design that stunned the world when it debuted with the E-Revo. Intricately molded as a single piece, the chassis balances strength and weight, function and aesthetics, convenience and performance to far surpass the standards of the "mini" category. In 1/16 scale, it is an even more impressive achievement of packaging and performance optimization that could only come from Traxxas, The Fastest Name In Radio Control®.

• NEW Traxxas Stability Management®
• TQi™ 2.4GHz transmitter
• 2-amp DC Peak Detecting Fast Charger
• 7.2 volt NiMH battery pack with iD™
• Race-winning, F1-inspired Revo® suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
• Powered by the Velineon® Brushless Power System
• Patented Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Velineon VXL-3m Electronic Speed Control
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Patented Training Mode™ - 50% Forward / Brake / 50% Reverse (patent pending)
• Velineon 380 Brushless Motor
• High-performance sensorless design
• High-strength Neodymium magnets
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• Gold-plated 3.5mm bullet connectors
• Digital High-Torque Waterproof Micro Steering Servo
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled differentials—an industry first in 1/16 scale
• Torque-Control™ slipper clutch system
• Heavy-duty CV-style driveshafts
• Rubber-sealed ball bearings
• External gear cover with easy slipper access
• Installed Long Travel Rockers for maximum suspension articulation
• Extended-wheelbase rear suspension arms (+10mm)
• Rocker-actuated shocks provide true progressive damping and spring rates
• Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated battery compartments with intake and exit cooling vents
• Quick-release battery doors for fast pack changes
• Scale all-terrain front and rear tires offer superior on- and off-road traction
• Pre-glued Canyon AT™ Tires with foam inserts
• Chrome Geode 2.2" wheels with beadlock trim
• ExoCage body with protective outer cage
• "LED ready" bumpers
• Full line of genuine Traxxas accessories available
• 1/16 Summit VXL is backed by unparalleled Traxxas support and parts availability

Length: 12.6" (320mm)
Front Track: 10.43" (265mm)
Rear Track: 10.63" (270mm)
Weight: 44oz (1.24kg)
Height (overall): 7.48" (190mm)
Wheelbase: 8.425" (214mm)
Wheel Diameter 2.2" (56mm)
Shock Length (front/rear): 48mm / 48mm
Front/Rear Tires (glued): Canyon AT
Front/Rear Wheels: Geode™
Electronic Speed Control: Waterproof Velineon® VXL-3m ESC
Motor (electric): Velineon® 380 Brushless
Transmission: Heavy-Duty Single Speed
Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
Overall Drive Ratio: 15.75:1 (stock, out-of-box)
Differential Type: Hardened Steel Bevel, Sealed
Gear Pitch: 48-Pitch
Chassis Structure/Material: Molded Composite Nylon Monocoque
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Bellcrank
Radio System: Traxxas TQi™ 2.4GHz (2-Channel) with TSM
Top Speed: 25+mph (40+mph with dual batteries)*
Skill Level: 2
Precision 2.4GHz Control:
Traxxas 1/16 Summit VXL is equipped with the world's most advanced Ready-To-Race® radio system. The Traxxas® TQi™ arrives with a full complement of tuning features and offers the unbeatable convenience of "no channels, no crystals" 2.4GHz technology—but that's just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely and the Multi-Function knob can be programmed to control Traxxas Stability Management TSM®, Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

5-channel Receiver w/ Traxxas Stability Management®:
The TQi 2.4GHz micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos—no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4Ghz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.

Traxxas Link Wireless Module Compatible:
The TQi's most important new feature may already be in your pocket. Equip the TQi with a Traxxas Link Wireless Module ( tra6511 , sold separately) and turn your Android, iPad® iPhone® or iPod touch® (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. The Traxxas Link Application is available on Google Play and the App Store.

Traxxas Stability Management:
Traxxas Stability Management (TSM) makes it possible to experience all the extreme power, speed, and acceleration that was engineered into Traxxas models by making it much easier to control the vehicle on common slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle’s direction and making steering corrections to provide straight-ahead fullthrottle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep Traxxas trucks arrow straight until they come to a complete stop. Traxxas TSM gives all the benefits modern electronic stabilization has to offer without intruding on driving fun or introducing unexpected side effects that can be found on other systems such as drastically reduced turning radius, braking assistance that times out (quits), throttle restrictions, and an overall disconnected driving feel. Traxxas engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. TSM can be fine tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. The result is driving faster, with more ease, and having more fun. In fact, the driver may not even realize how much TSM is helping until it is turned off and their driving skills are tested without it!

Trail-Ready Styling With Realistic ExoCage:
Hardcore full-size off-roaders protect their rigs with external roll cages, and Summit VXL follows suit with its rugged ExoCage. The flexible, bolt-on cage provides functional protection and incorporates tough-looking fender flares and a realistic light bar to complete Summit VXL’s trail-ready look.

2.2” Geode Wheels and Canyon AT Tires:
Dirt, mud, snow…no matter where you run Summit VXL, you can count on it to dig in hard with its aggressive Canyon AT tires. The multi-terrain tread features large, angular lugs that dig in to get brushless horsepower to the ground for powerful acceleration and all-terrain traction. Tough 2.2” Geode chrome wheels support the tires with molded-in “beadlock” rings that are matched to the body color for custom style.

Waterproof Electronics:
Mud. Water. Snow. 1/16 Summit VXL's waterproof electronics and fully sealed receiver box let you make tracks in conditions that leave other trucks parked at home. Traxxas' patented innovative waterproof receiver box puts 1/16 Summit VXL in a league of its own. The antenna and servo wires route neatly through a special watertight seal. To protect the receiver from dust and water a custom shaped blue O-ring seals the receiver box. Thanks to the unique design, the receiver can be removed for service and even aftermarket receivers can be used, without losing the sealing properties of the box.

Digital High-Torque Waterproof Steering Servo:
Small but powerful, the 1/16 Summit VXL's 2080 servo cranks out 41.7 oz.-in. of tire-turning torque with digital circuitry for responsive control—even in water, mud and snow, thanks to its o-ring-sealed waterproof construction.

Fully Customizable With Traxxas Factory Options:
Designed and engineered for lasting performance, high precision, superior durability and unbeatable style, genuine Traxxas options for 1/16 Summit VXL are the perfect way tailor your truck to the track, or just add the unique touches that make it your own. From red-anodized toe links and pushrods to hard-anodized shock bodies, Traxxas offers a wide range of performance parts for the 1/16 Summit VXL. Visit the accessories page to see the full line of 1/16 Summit VXL accessories.
