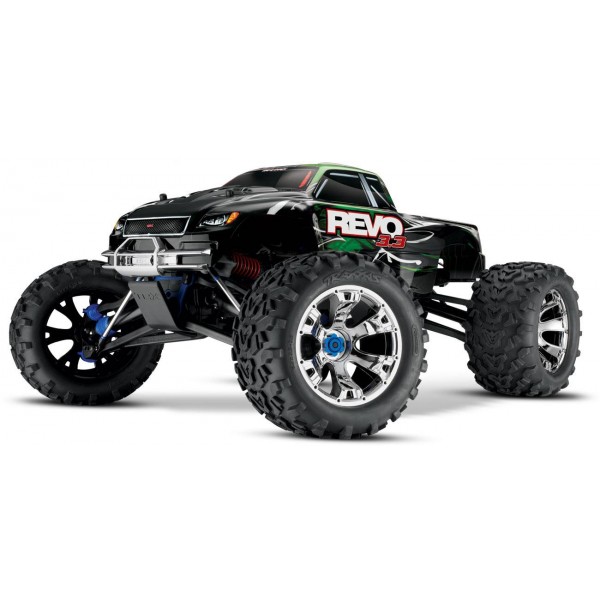

Revo 3.3 4WD Nitro RTR two-speed Monster Truck with TQI and TSM

Monster innovation, monster versatility, and supreme size come together in the one truck that could only come from Traxxas. The Revo 3.3 defines what it means to be the pinnacle of monster truck performance, the standard bearer for cutting edge innovation and boundless capability that all others are measured against. The Revo 3.3 is pure monster to its core with its massive presence, meaner gaze, and feature-rich capability. More importantly, Revo's advanced engineering equips it for fun, and the Revo 3.3 delivers even more of it!

Revo's specifications are more than just an impressive list of features. They are each specifically engineered and integrated into the model to provide capability and convenience that equates to fun! Revo 3.3's heavy-duty reversing transmission lets you easily back out of tight spots with the flick of a switch, while the OptiDrive® Electronic Transmission Control guarantees safe, smooth engagement every time. Revo engineering makes it the smoothest reversing system available on any nitro truck. The Traxxas TQi 2.4GHz radio system features the exclusive Traxxas Link wreless Module, a revolutionary concept that harnesses the power of your Android, Apple iPad, iPhone or iPod touch to create the ultimate pro-caliber radio system. The TQi™ radio system keeps you in complete control with the latest 2.4GHz technology for no-crystals-required reliability and convenience. Just switch on and drive. ­Geode™ chrome wheels with 17mm hex hubs wear massive 6.3" Maxx®-sized tires for big ground clearance and total traction in all conditions. Revo 3.3's dual-digital servo steering system delivers 250 oz.-in of torque for powerful, responsive handling, plus they're waterproof for ultimate reliability. The Revo 3.3 is 100% Ready-To-Drive®—even a fuel dispensing bottle and rechargeable NiMH packs for the receiver and EZ-Start system are included, along with the chargers, extra oil filter, extra glow plug, precision tool set, and more! All the race-engineered advantages that make Revo a seven-time national champion on the track also make it the ultimate platform for all your monster truck fun. Revo durability is second to none, once the long travel rockers are installed, Revo has the most suspension travel of any monster truck.

• NEW Traxxas Stability Management®
• TQi 2.4GHz High Output radio system with Traxxas Link™ Wireless Module
• TQi 2.4GHz High Output transmitter
• Traxxas Link™ Wireless Module
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• Telemetry-ready 5-channel micro receiver with dual channel-1 input
• Traxxas Link Wireless Module compatible with Android 4.4 equipped devices, iPhone (4S, 5, 5C, 5S), iPod touch (5th generation and later versions), iPad (3rd generation and later versions), or iPad mini.
• Factory installed speed, RPM, and temperature telemetry sensors
• TQi 2.4GHz 5-channel micro receiver (#6533) with TSM and integrated telemetry ports
• Included Accessories:
• 1200mAh 5-cell receiver battery
• 1500mAh 6-cell EZ-Start pack
• Fuel filler bottle
• Extra glow plug
• Extra oiled air filter
• Long travel rockers & springs
• 2amp DC Peak Detecting Fast Charger
• Wide-track body with custom graphics
• 17mm hex Geode™ mirror-chrome wheels with pre-glued on 6.3" Maxx-Sized Tires
• 17mm aluminum splined wheel hubs and nuts
• Large capacity 150cc fuel tank
• Hard-anodized PTFE-coated GTR shocks with TiN shock shafts
• High flow dual-stage air filter­ Installed progressive 2 long travel rockers
• Dual 2075 digital high-torque, ball bearing steering servos deliver 250 oz-in & 0.16-sec transit time
• Blue-anodized chassis and chassis brace
• RX box includes 5-cell flat rechargeable RX pack
• Heavy-duty reversing OptiDrive® transmission
• Two-speed forward/reverse transmission
• Low rotating mass for quick, high-revving acceleration
• Constant drive engagement is smooth and instantly responsive
• Sealed case protects gears & two-speed from damaging debris­
• Large diameter front disc brake­
• Polished Resonator™ dual chamber tuned pipe
• High-revving TRX® 3.3 Racing Engine for proven championship-winning horsepower and speed
• Bigger piston and sleeve delivers extreme power
• Consistent and smooth throughout the entire power band
• Straight-through exhaust flow
• Slide carburetor
• Knife-edged connecting rod
• Large aluminum blue-anodized cooling head
• Super-light piston and rod
• High-performance ball bearings
• Backed by Traxxas Lifetime Engine Replacement Plan.
• 45+mph top speed
• EZ-Start® push-button electric starting.
• Torque-Control™ slipper clutch
• Sealed limited slip front and rear differentials
• Super-duty sealed driveshafts
• Sealed pivot ball suspension
• Rubber-sealed ball bearings
• Hex hardware
• ProGraphix® body graphics

Length: 20.65" (525mm)
Front Track: 17.5" (444.5mm)
Rear Track: 17.6" (447mm)
Weight (no fuel): 10.3lbs (4.69kg)
Center Ground Clearance: 4.25" (108mm)
Height (overall): 11.024" (280mm)
Wheelbase: 13.7" (348mm)
Front Shock Length: GTR™ Aluminum 3.43" (87mm)
Rear Shock Length: GTR™ Aluminum 3.43" (87mm)
Front Tires: Maxx-Sized Tires 6.3"x3.8"
Rear Tires: Maxx-Sized Tires 6.3"x3.8"
Wheel Diameter: 3.8" (97mm)
Suspension: Fully Independent Progressive 2 Rockers
Front Wheels: Geode™ mirror-chrome wheels with 17mm Splined Hex Hubs
Rear Wheels: Geode™ mirror-chrome wheels with 17mm Splined Hex Hubs
Gear Ratio (1st Gear): 25.55:1
Gear Ratio (2nd Gear): 16.31:1
Transmission: OptiDrive® Auto Two-Speed FWD/REV
Differential Type: Bevel Gear, Sealed, Limited Slip
Drive System: Shaft-Driven 4WD
Chassis Type: Extended Chassis, 3mm, 6061-T6 Aluminum
Transmitter: Traxxas TQi™ 2.4GHz radio system with Traxxas Link Wireless Module (3-Channel)
Receiver: Traxxas Stability Management ( tra6533 )
Engine (fuel-powered): TRX® 3.3 Racing Engine w/ EZ-Start®
Brake Type: Steel Disc with semi-metallic pads
Fuel Tank Capacity: 150cc
Top Speed: 45+mph
Skill Level: 4
Traxxas Stability Management®:
Traxxas Stability Management® (TSM) makes it possible to experience all the extreme power, speed, and acceleration that was engineered into Traxxas models by making it much easier to control the vehicle on common slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle’s direction and making steering corrections to provide straight-ahead fullthrottle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep Traxxas trucks arrow straight until they come to a complete stop. Traxxas TSM gives all the benefits modern electronic stabilization has to offer without intruding on driving fun or introducing unexpected side effects that can be found on other systems such as drastically reduced turning radius, braking assistance that times out (quits), throttle restrictions, and an overall disconnected driving feel. Traxxas engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. TSM can be fine tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. The result is driving faster, with more ease, and having more fun. In fact, the driver may not even realize how much TSM is helping until it is turned off and their driving skills are tested without it!

The World's Most Advanced Ready-To-Race® Radio System Now Connects Wirelessly to the Traxxas Link App:
The Traxxas TQi paired with the Traxxas Link app is the most advanced, feature-rich, Ready-to-Race® radio system available. Now, TQi connects wirelessly to the latest Traxxas Link app for the ultimate in ease-of-use and control. Equip the TQi radio system with the Traxxas Link Wireless Module to unlock exciting features such as instant Bluetooth® connectivity; access to the full range of powerful TQi tuning and telemetry tools through an intuitive high-definition graphical interface; and the ability to have a friend remotely monitor real-time telemetry while you focus on mashing the throttle. Your co-driver can even make adjustments for you, remotely, while you drive. No other radio system can do that. Just like the speed and performance Traxxas engineers into the vehicles, the power and capability of TQi and Traxxas Link expands your fun into all-new territory. Only from Traxxas, The Fastest Name in Radio Control®. Learn more about the new Traxxas TQi Radio System here.

Intuitive iPhone and iPod touch Interface:
Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effects settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. Everything happens live, on-the-fly, giving you instant feedback on your changes.

5-channel Micro Receiver with Fail-Safe Security:
The TQi 2.4GHz micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos—no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4GHz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.

Wider, Taller, More Aggressive Monster Stance:
The new Revo 3.3's class-leading monster performance is reflected in its muscular new body shell and high-riding stance. Now a full inch wider with the greater offset of its Geode™ wheels, the new Revo 3.3 is an even more menacing off-road machine. Massive 6.3" Maxx tires are the claws of this nitro-burning beast, and raise its already high ground clearance for total domination no other monster can match.

ProGraphix Painted Body:
The new, wider Revo body comes fully trimmed and painted for sinister style with no finishing required. Decals are also applied to save time and get you driving just minutes out of the box. Traxxas' ProGraphix bodies are the hottest looking lids around, with custom style even pro painters can't duplicate.

Geode™ Wheels:
Traxxas Geode wheels offer an extra half-inch of offset to increase the Revo 3.3's width by a full inch for greater stability in rough terrain and superior cornering grip. The beefy six-spoke design is extra strong and uses Traxxas' exclusive 17mm splined hex to withstand off-road abuse. The show-chrome finish adds custom style. The Geode wheels also accept Traxxas' beadlock-style rings (sold separately) for an instant matching or contrasting dose of color with the benefit of extra protection for the rim/sidewall joint.

6.3" Maxx Tires:
Designed for true multi-terrain versatility, the soft compound Maxx tires maximize performance for tenacious traction no matter where nitro-powered monster fun takes you. On dirt, the aggressive treads claw for traction providing superior bite and massive roosts, and on pavement the forgiving side grip allows the tire to power-slide while maintaining a sure-footed neutral feel. It's go-anywhere performance you can only experience with a Revo.

Heavy-Duty Reversing Transmission With OptiDrive®:
Only Traxxas offers a no-compromise reversing transmission with seamless power delivery, positive engagement, and smooth, responsive acceleration in forward and reverse. You get all the fun and convenience of reversing capability, without the penalty of weight and complexity inherent in an all-mechanical system. The secret is Traxxas' exclusive OptiDrive Electronic Shift Module, a microprocessor-based controller that senses vehicle speed and optimizes forward and reverse shifting. OptiDrive allows constant drive engagement, so shifts are fast and seamless. The electronic control also prevents accidental shifting at speed; the shift module will only allow the transmission to shift when the Revo 3.3 has slowed to a safe speed. In addition to providing the absolute best performance, the OptiDrive system allows a lighter transmission with fewer moving parts for reduced inertial mass and greater torque handling.

Traxxas Top Fueler Fuel Bottle:
A fuel-filler bottle is a must-have for any nitro machine, and the premium-quality Top Fueler is included with the Revo 3.3. The bottle holds a full 500cc of fuel and features a long, angled, blue-anodized spout for easy filling.
