Overview

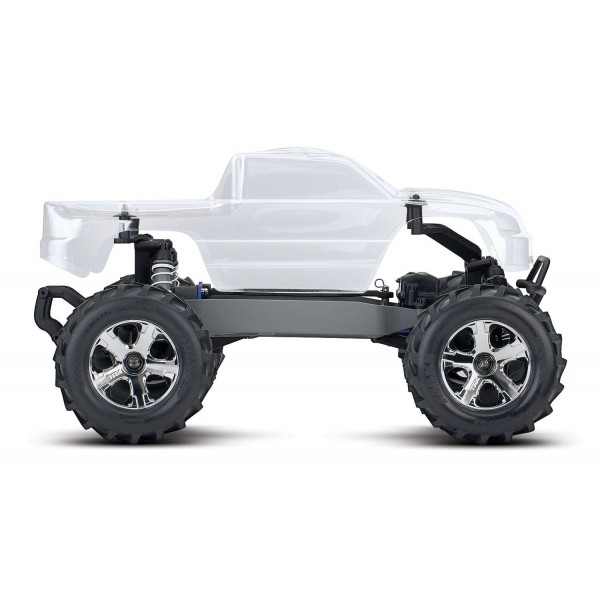

Assembly Instructions that are easy to understandThe Stampede 4X4 Kit is designed Traxxas Tough™ to handle all the 4-wheel drive monster mayhem you can dish out. Its tall ground clearance and long-arm suspension make Stampede 4X4 feel unstoppable. The Stampede 4X4 Assembly Kit combines all the mud-slinging fun of the RTR Stampede with the excitement of building your own truck.
Offered as a true roller chassis, the Stampede 4X4 Kit allows build-it-yourself freedom to add your choice of motor, ESC, servo, and radio system. All the parts are organized neatly in labeled bags with a fully illustrated color manual to make building rewarding and fun. The Stampede 4X4 Kit is perfect for drivers of almost any age or skill level. Discover why Stampede 4X4’s off-road capability and toughness are rivaled only by its reputation for pure, no-nonsense fun.
The Stampede 4X4 Unassembled Kit isn’t just for expert hobbyists. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and in the dirt with the new Stampede 4X4 kit.Includes:
- 1/10 scale Stampede 4X4 Unassembled Monster Truck Kit
- pre-cut clear body
- full-color step-by-step assembly manual
Requires:
- Electronics
- Battery
- Charger
- Radio system (transmitter, receiver, servo)
- Power system (ESC, motor) not included.
features
- Stampede 4X4 unassembled kit
- Full-time shaft-driven 4WD
- Sealed, oil-filled differentials
- Waterproof receiver box for all-weather driving excitement
- Accepts brushed or brushless power systems
- Accepts standard size steering servos
- Efficient telescoping heavy-duty U-joint driveshafts
- Bellcrank steering system with integrated servo saver
- Modular simplicity, fiber-composite monocoque chassis
- Gray chassis components offer a high-contrast tech look
- Easy access battery compartment
- Drive-over-anything ground clearance and forward wheel placement
- Long-travel suspension
- Fully adjustable Ultra Shocks™ with X-ring technology
- High-quality hex hardware throughout
- Efficient rubber-sealed ball bearings
- White powder coated shock springs feature a responsive spring rate
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off for superior durability
- Chrome All-Star™ 2.8" wheels
- Chevron Maxx™ multi-terrain tires with high-performance foam inserts
- Full line of genuine Traxxas accessories available
- Unparalleled Traxxas support and parts availability
Front Track: 13.39 Inches (340mm)Specs
Rear Track: 13.39 Inches (340mm)
Center Ground Clearance: 2.95 Inches (75mm)
Weight: 90.46oz (2.57kg) (with electronics installed)
Height (overall): 8.94 Inches (227mm)
Wheelbase: 10.83 Inches (275mm)
Shock Length: Long (front), XXLong (rear)
Tires: Chevron Maxx™ 2.8"
Tire Diameter: 5.10 Inches (129mm) (front and rear)
Wheels (front/rear): 2.8" Chrome (All-Star™)
Wheel Diameter: 2.8 Inches (72mm) Outer; 2.8 Inches (72mm) Inner
Speed Control: Sold separately
Motor: Sold separately
Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
Gear Pitch: 32
Chassis Structure/Material: Molded Tub / Nylon Composite
Drive System: Shaft-Driven, Direct Drive 4WD
Steering: Dual-Bellcrank with Integrated Servo Saver
Radio System: Sold separately
Body: Pre-cut clear polycarbonate
Skill Level: 1
*Battery Tray Dimensions: 142mm x 48.5mm x 23mm, 25mm
Required Items: Motor, ESC, radio system, steering servo, battery, and chargerInnovative Chassis:Features Overview
The innovation designed into the Stampede 4X4 begins with a chassis that won't flex under load for arrow-straight, hard-charging acceleration. The chassis fully integrates the electronics and battery compartment for an efficient and compact layout, and maintains the high center ground clearance that gives Stampede 4X4 its tall stance and high-riding look. The extra clearance dramatically increases the off-road versatility that allows you to tackle rough terrain and large obstacles. The Stampede 4X4 feels planted and secure at speed, even on pavement and in other high-grip conditions. Stampede 4X4 is 100% monster truck, but it handles like a racing machine! Underneath, the chassis is ultra-smooth to reduce drag and prevent snags driving through brush.
Modular Simplicity:
Old designs made servicing of 4-wheel drive vehicles cumbersome and time-consuming. Traxxas has a better way. Modular design allows the entire front section to be removed with just 5 screws, and the rear assembly with just 4 screws. In less than a minute using a power screwdriver, you have full access for easy service and adjustment.
Waterproof Receiver Box:
The Stampede 4X4 Kit includes a fully waterproof receiver box for your receiver (sold separately). Only Traxxas’ patented innovation gives you the freedom to tackle creeks, snow, and mud without worrying about water in your electronics.
Soft Compound 2.8” Chevron Maxx Tires:
The soft-compound Chevron Maxx™ tires maximize performance for all-terrain traction. On dirt, the treads claw for traction, providing superior forward bite and massive roosts, and on pavement, the forgiving side grip allows the tire to power-slide while maintaining a sure-footed neutral feel.
Chrome All-Star Wheels The Stampede 4X4's 2.8" All-Star™ chrome wheels feature a horizontal bead configuration that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts come standard in the kit.:
Single-Screw Motor Access:
Stampede 4X4 features a unique mount that holds the motor securely yet releases instantly with just one screw. Gear-mesh adjustments are fast and easy and the motor can be removed in just seconds.
Heavy-Duty Driveshafts:
Stampede 4X4's telescoping, universal-joint driveshafts allow for maximum suspension movement resulting in longer travel and tighter turning. Extra material and design tweaks greatly increase torque handling.
Torque-Control™ Slipper Clutch:
The Stampede 4X4's patented slipper clutch uses semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The slipper adjusts easily without disassembly or removal, and the unique 3-pad design is proven rugged in Traxxas' most powerful vehicles. It's also the perfect complement to Velineon brushless power, offering the ultimate in traction control.- Specs
Product Specifications
Part Number TRA67010-4 Scale 1/10 Drivetrain 4WD Kit Type Unassembled Kit Front Track 13.39 Inches (340mm) Rear Track 13.39 Inches (340mm) Center Ground Clearance 2.95 Inches (75mm) Weight 90.46oz (2.57kg) (with electronics installed) Height (overall) 8.94 Inches (227mm) Wheelbase 10.83 Inches (275mm) Shock Length Long (front), XXLong (rear) Tires Chevron Maxx™ 2.8" Tire Diameter 5.10 Inches (129mm) (front and rear) Wheels (front/rear) 2.8" Chrome (All-Star™) Wheel Diameter 2.8 Inches (72mm) Outer; 2.8 Inches (72mm) Inner Speed Control Sold separately Motor Sold separately Differential Type Hardened Steel Bevel, Sealed, Limited Slip Gear Pitch 32 Chassis Structure/Material Molded Tub / Nylon Composite Drive System Shaft-Driven, Direct Drive 4WD Steering Dual-Bellcrank with Integrated Servo Saver Radio System Sold separately Body Pre-cut clear polycarbonate Skill Level 1 *Battery Tray Dimensions 142mm x 48.5mm x 23mm, 25mm Required Items Motor, ESC, radio system, steering servo, battery, and charger - Reviews
