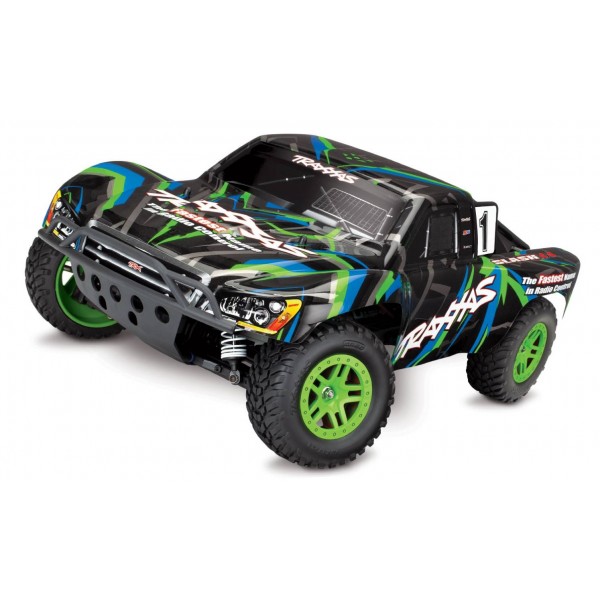

Built Slash Tough!The Traxxas Slash set the standard for durability, performance, and fun by which all other short course trucks are measured. The new Slash 4X4 combines the best elements of the hardcore Slash 4X4 VXL with an unbeatable low price. Outfitted with the powerful Titan 12T 550 motor and bulletproof reliability of the waterproof XL-5 electronic speed control, the Slash takes on any high-flying, fender-banging, all-weather adventure you can throw at it. Grab your transmitter, rip some 4-wheel roost, and discover why nothing else is built like a Slash!
Includes:
- Fully assembled Ready-To-Drive®
- TQ 2.4GHz Radio System
- XL-5 electronic speed control
- ProGraphix® painted body
Requires:
- 4 "AA" Batteries (for transmitter)
- Battery Charger
- 7-cell NiMH battery
Notes:
This model does not come with a vehicle battery or charger
features
- Fully assembled and Ready-To-Drive®
- Full-time 4WD
- TQ™ 2.4GHz 2-channel radio system
- Sealed, silicone-filled differentials with steel gears
- Tough Torque-Control™ slipper clutch with large 32p gears
- Waterproof electronics for all-weather driving excitement
- Powerful Titan® 12T 550 modified motor with internal cooling fan
- High-performance waterproof XL-5™ Electronic Speed Control
- Speed control and receiver are securely screwed to the chassis
- Equipped with patented Traxxas High-Current Connectors
- Easy motor access with single-screw motor plate attachment
- High-torque Waterproof Traxxas steering servo ( TRA2056 )
- Efficient telescoping heavy-duty U-joint driveshafts
- Bellcrank steering system with integrated servo saver
- Modular simplicity, fiber-composite monocoque chassis
- Easy access battery compartment
- Scale all-terrain front and rear tires offer superior on- and off-road traction
- Fully adjustable Ultra Shocks™ with X-ring technology
- Precision high-quality hex hardware throughout
- Efficient rubber-sealed ball bearings
- White powder coated shock springs feature a responsive spring rate
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off for superior durability
- ProGraphix® painted body
- Full line of genuine Traxxas accessories available
- Unparalleled Traxxas support and parts availability
Length: 22.36 Inches (568mm)Specs
Front Track: 11.65 Inches (296mm)
Rear Track: 11.65 Inches (296mm)
Center Ground Clearance: 2.83 Inches (72mm)
Weight: 5.86lbs (2.66kg)
Height (overall): 7.60 Inches (193mm)
Wheelbase: 12.75 Inches (324mm)
Shock Length: Long (front), XXLong (rear)
Tires: Traxxas 2.2" Pre-Glued with Foam Inserts
Tire Diameter: 4.31 Inches (109.5mm) (front and rear)
Wheels (front/rear): 2.2" Split-Spoke, Green or Orange Beadlock
Wheel Diameter: 2.2 Inches (56mm) Outer
3.0 Inches (76mm) Inner
Speed Control Type: XL-5™ Electronic Speed Control
Motor (electric): Titan® 12T 500 (12-turn)
Overall Drive Ratio: 19.23 (stock, out-of-box)
Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
Gear Pitch: 32
Chassis Structure/Material: Molded Tub / Nylon Composite
Drive System: Shaft-Driven, Direct Drive 4WD
Steering: Dual-Bellcrank with Integrated Servo Saver
Radio System: TQ™ 2.4GHz (2-channel)
Body: ProGraphix, Traxxas Slash
Skill Level: 1
*Battery Tray Dimensions: 165mm x 49.5mm x 23mm, 25mm
Required Items: 4 "AA" Batteries (for transmitter)Product Videos
100% Fully Assembled and Ready-To-Race®:Features Overview
Slash 4X4 comes fully-assembled and Ready-To-Race® with the TQ 2.4GHz radio system, XL-5 electronic speed control, Titan 12T motor, painted and decaled body, pre-glued tires, and Quick Start Guide. Traxxas backs the Slash 4X4 and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows Slash 4X4 to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your RC experience is easy and fun and fast!
Modified Muscle:
The Titan 12T 550 modified motor pumps out incredible mod-motor power with virtually maintenance-free operation, and long-lasting performance. The Titan's integrated cooling fan pulls cool air through vent tunnels molded into the motor plate to keep temperatures down. A cooler running motor equates to faster speeds, longer runtime, and extended motor life. The XL-5 Electronic Speed Control offers high current handling, EZ-Set® one-button setup, and smooth high-frequency control. Once reserved for high-end replacement ESCs, the XL-5 comes standard with three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance. The patented Traxxas High-Current Connector opens the door for unrestricted current flow with today's high-power batteries.- Specs
Product Specifications
Part Number TRA68054-4-GRN Scale 1/10 Drivetrain 4WD Kit Type No Battery Length 22.36 Inches (568mm) Front Track 11.65 Inches (296mm) Rear Track 11.65 Inches (296mm) Center Ground Clearance 2.83 Inches (72mm) Weight 5.86lbs (2.66kg) Height (overall) 7.60 Inches (193mm) Wheelbase 12.75 Inches (324mm) Shock Length Long (front), XXLong (rear) Tires Traxxas 2.2" Pre-Glued with Foam Inserts Tire Diameter 4.31 Inches (109.5mm) (front and rear) Wheels (front/rear) 2.2" Split-Spoke, Green or Orange Beadlock Wheel Diameter 2.2 Inches (56mm) Outer Speed Control Type XL-5™ Electronic Speed Control Motor (electric) Titan® 12T 500 (12-turn) Overall Drive Ratio 19.23 (stock, out-of-box) Differential Type Hardened Steel Bevel, Sealed, Limited Slip Gear Pitch 32 Chassis Structure/Material Molded Tub / Nylon Composite Drive System Shaft-Driven, Direct Drive 4WD Steering Dual-Bellcrank with Integrated Servo Saver Radio System TQ™ 2.4GHz (2-channel) Body ProGraphix, Traxxas Slash Skill Level 1 *Battery Tray Dimensions 165mm x 49.5mm x 23mm, 25mm Required Items 4 "AA" Batteries (for transmitter) - Reviews
