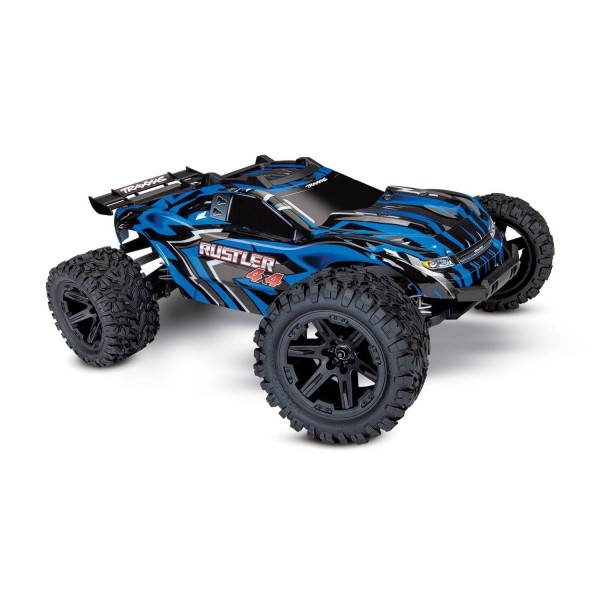

Traxxas Rustler 4X4 1/10-scale 4WD Stadium Truck (blue)

Rustler 4X4 infuses the speed and agility of the number-one-selling Rustler with 4-wheel drive performance, increased durability, and even more fun! Beneath the reinforced clipless body, the all-new chassis sits lower, wider, and longer than before for increased stability. The waterproof XL-5 electronic speed control and Titan® motor deliver high-octane horsepower and all-weather fun. Large Talon™ EXT tires provide versatile grip on any terrain, from backyard trails to concrete skate parks. Rustler 4X4 destroys convention to become the new standard for 4x4 stadium trucks!

Modified Muscle
The Titan 12T 550 modified motor pumps out incredible mod-motor power with virtually maintenance-free operation, and long-lasting performance. The Titan's integrated cooling fan pulls cool air through vent tunnels molded into the motor plate to keep temperatures down. A cooler running motor equates to faster speeds, longer runtime, and extended motor life. The XL-5 Electronic Speed Control offers high current handling, EZ-Set® one-button setup, and smooth high-frequency control. Once reserved for high-end replacement ESCs, the XL-5 comes standard with three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance. The patented Traxxas High-Current Connector opens the door for unrestricted current flow with today's high-power batteries.

100% Fully Assembled and Ready-To-Race®
Rustler 4X4 comes fully-assembled and Ready-To-Race® with the TQ 2.4GHz radio system, XL-5 electronic speed control, Titan 12T motor, painted and decaled body, pre-glued tires, and Quick Start Guide. Traxxas backs the Rustler 4X4 and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows Rustler 4X4 to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your RC experience is easy and fun and fast!

• Fully assembled and Ready-To-Drive®
• Full-time 4WD
• TQ™ 2.4GHz 2-channel radio system
• Sealed, silicone-filled differentials with steel gears
• Tough Torque-Control™ slipper clutch with large 32p gears
• Waterproof electronics for all-weather driving excitement
• Powerful Titan® 12T 550 modified motor with internal cooling fan
• High-performance waterproof XL-5™ Electronic Speed Control
• Speed control and receiver are securely screwed to the chassis
• Equipped with patented Traxxas High-Current Connectors
• Easy motor access with single-screw motor plate attachment
• High-torque Waterproof Traxxas steering servo ( tra2056 )
• Efficient telescoping heavy-duty U-joint driveshafts
• Bellcrank steering system with integrated servo saver
• Modular simplicity, fiber-composite monocoque chassis
• Easy access battery compartment
• 2.8" wheels with aggressice Talon™ EXT tires
• Fully adjustable Ultra Shocks™ with X-ring technology
• Precision high-quality hex hardware throughout
• Efficient rubber-sealed ball bearings
• White powder coated shock springs feature a responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won't pop off for superior durability
• Clipless pre-painted ProGraphix® body
• Full line of genuine Traxxas accessories available
• Unparalleled Traxxas support and parts availability

Length: ­ 17.98 Inches (457mm)
Front Track: ­ 12.94 Inches (329mm)
Rear Track: ­ 12.94 Inches (329mm)
Center Ground Clearance: ­ 1.1 Inches (27mm)
Weight: ­ 4.73lbs (2.15kg)
Height (overall): ­ 6.35 Inches (161mm)
Wheelbase: ­ 11.62 Inches (295mm)
Shock Length: ­ Long (front), XX-Long (rear)
Tires: ­ Talon™ EXT with Foam Inserts
Tire Diameter: ­ 4.5 Inches (114mm) (front and rear)
Wheels (front/rear): ­ 2.8" Black Multi-Spoke
Wheel Diameter: ­ 2.8 Inches (71mm)
Speed Control Type: ­ XL-5™ Electronic Speed Control
Motor (electric): ­ Titan® 12T 500 (12-turn)
Overall Drive Ratio: ­ 19.23:1 (stock, out-of-box)
Differential Type: ­ Hardened Steel Bevel, Sealed, Limited Slip
Gear Pitch: ­ 32
Chassis Structure/Material: ­ Molded Tub / Nylon Composite
Drive System: ­ Shaft-Driven, Direct Drive 4WD
Steering: ­ Dual-Bellcrank with Integrated Servo Saver
Radio System: ­ TQ™ 2.4GHz (2-channel)
Body: ­ Clipless ProGraphix®
Skill Level: ­ 1
Battery Tray Dimensions: ­ 143mm x 50mm x 25mm
Required Items: ­ 4 "AA" Batteries (transmitter)
XL-5 (WATERPROOF) ESC SPECIFICATIONS
Input voltage: ­ 4-7 Cells (4.8 to 8.4 Volts DC)
Case Size: ­ 1.23"W x 2.18"D x 0.61" H
Weight: ­ 2.44 Ounce
Motor Limit: ­ 15-turns** (540 Size)
12-turns** (550 Size)
On Resistance Forward: ­ 0.007 Ohms
On Resistance Reverse: ­ 0.014 Ohms
BEC Voltage: ­ 6.0 VDC
BEC Current: ­ 1A
Power Wire: ­ 14 Gauge / 5"
Input Harness Wire: ­ 26 Gauge / 9"
PWM Frequency: ­ 1600 Hz
Low Voltage Detection (LVD): ­ 2-Stage indicators, switchable (on or off)
Thermal Protection: ­ Thermal shutdown
Profile selection: ­ Sport Mode:
100% FWD, 100% brakes, 100% REV
Race Mode:
100% FWD, 100% brakes, no REV
Training Mode: *
50% FWD, 100% brakes, 50% REV
Single-button setup: ­ Yes, Traxxas EZ-Set®
Clipless Body Mounting:
Similar to the flagship E-Revo, the Rustler 4X4 uses a clipless body latching system for secure mounting and fast, one-handed removal and installation. The sleek, aerodynamic body features a rugged internal structure and external rollover protection for long life and Traxxas-Tough™ durability.

All-New Chassis:
The all-new low-CG chassis positions the weight low for aggressive handling. The wheelbase has been lengthened 20mm for the perfect balance of stability and quick response. The Titan motor’s massive power flows through a tough and efficient 4-wheel drive system with oil-filled steel-gear differentials and heavy-duty driveshafts.
