Overview

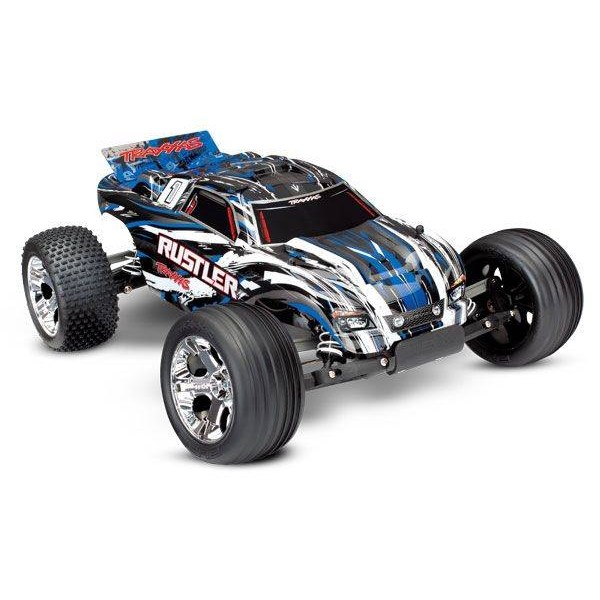

The Traxxas Rustler is a rugged offroad beast with a top speed of 35+mph!The Traxxas Rustler has a winning formula for rugged, dependable fun! The Rustler brings RC fun to a whole new level with faster speeds, innovative technology, and hobby-grade durability for years of fun. With a top speed of 35+mph*, Rustler rips off-road roost with its powerful Titan® 12-turn modified 550 motor and XL-5 Electronic Speed Control. Traxxas' exclusive waterproof electronics allow Rustler to blast through puddles, mow through mud and shred snow for wild all-weather fun. Your RC adventures are limited only by your imagination. Step up to genuine Traxxas quality and performance and discover a whole new level of fun with the Traxxas Rustler!
The Rustler’s exclusive watertight, sealed electronics provide the freedom to drive through water, mud, snow, and other wet-running conditions. The XL-5 electronic speed control and the mini receiver are sealed against the elements. It opens up a whole new world of adventure and fun.Includes:
- Fully assembled Rustler 1/10 Scale Stadium Truck Ready-To-Race®
- TQ™ 2.4GHz radio system
- XL-5 Electronic Speed Control
- ProGraphix® painted body
Requires:
- NiMH or LiPo Battery
- Charger
- 4 "AA" Batteries (Transmitter)
features
- Traxxas TQ 2.4GHz radio system
- Traxxas tra6519 TQ 3-channel micro receiver
- Waterproof electronics permit driving in water, mud and snow
- Waterproof receiver box
- High-torque waterproof Traxxas tra2056 steering servo
- Powerful Titan® 12T 550 modified motor with internal cooling fan
- Rustler reaches speeds in excess of 35mph using the included
- optional 28-tooth pinion gear*
- High-performance waterproof XL-5™ electronic speed control
- Innovative watersealed design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- 12-turn motor limit for 550 size motors
- 15-turn motor limit for 540 size motors
- Integrated on/off switch
- Traxxas EZ-Set® one-button setup
- LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
- High-efficiency MOSFET transistors
- Large axle carriers with 5x11mm Oilite bushings
- Efficient Magnum 272™ three-gear transmission with ball bearings
- Sealed gearbox protects the transmission with beefed up motor
- guard for extra protection
- Torque-Control™ slipper clutch system
- External gear cover with easy slipper access
- Reliable planetary gear differential
- Telescoping U-joint driveshafts
- Fiber-composite monocoque chassis
- Speed control and waterproof receiver box are securely fastened to chassis
- Easy access battery compartment
- Fully adjustable Ultra Shocks™ with X-ring technology
- White powder coated shock springs feature a new responsive spring rate
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off for superior durability
- Alias™ step-pin rear tires and Alias ribbed front tires offer superior
- off-road traction
- Rustler's tires include performance foam inserts and they come
- pre-glued on mirror-chrome 2.8" All-Star™ wheels
- ProGraphix® pre-painted body
- Wing is securely attached to the body with precision hex hardware
- Rustler is backed by unparalleled Traxxas support and parts availability
Length: 17.5" (445mm)Specs
Front Track: 12.25" (311mm)
Rear Track: 12.25" (311mm)
Weight: 59.6oz (1.69 kg)
Height (overall): 7" (178mm)
Wheelbase: 11.375" (289mm)
Front Shock Length: Long
Rear Shock Length: XX-Long
Front Tires (pre-glued): Alias™ Ribbed 2.8"
Rear Tires (pre-glued): Alias™ Step-Pin 2.8"
Front Wheels: 2.8" Mirror-Chrome (All-Stars™)
Rear Wheels: 2.8" Mirror-Chrome (All-Stars™)
Electronic Speed Control: XL-5™ Electronic Speed Control
Motor (electric): Titan® 12T 550 (12-turn 550)
Steering Servo: tra2056 High Torque Waterproof
Transmitter: TQ 2.4GHz Radio
Receiver: tra6519 TQ 3-Channel Micro
Gear Ratio (internal): 2.72 (final drive: 10.17)
Differential Type: Planetary
Gear Pitch: 48-Pitch
Transmission: Magnum 272™
Steering: Bellcrank
Chassis Type: Modified Tub
Chassis Material: Composite Nylon
Top-Speed: 35+mph**
Skill Level: 1
*Battery Tray Dimensions: 139mm x 47.5mm x 28mm
Required Items: NiMH or LiPo Battery, Charger, 4 "AA" Batteries (Transmitter)Product Videos
Titan® 12-Turn 550 Modified Motor:Features Overview
The Rustler includes a powerful Titan 12T 550 modified motor with internal cooling fan - an industry first for this class of truck! The Titan's oversized armature (30% larger compared to 540-sized armatures) features 12 turns of pure copper wire for big torque and increased power-handling capabilities. The integrated cooling fan lowers running temperatures for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent torque and high speeds run-after-run, without fading. Beyond the specs, the Titan 12T is made for dirt-roosting torque, lightning-quick acceleration, big-air jumps, and just about any other 4-wheel fun that demands real horsepower.
XL-5 Waterproof Electronic Speed Control:
Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC packs impressive features that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.
Precision 2.4GHz Control:
Switch on the power and drive! That's all there is to it with the TQ™ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ's advanced programming provides long-range control with smooth, glitch-free performance. The TQ's ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.
Oil-Filled Ultra Shocks™:
Rustler's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and silky-smooth performance. They are easy to customize with a wide range of high-performance oils, springs, and pistons available. Features include pressure bladders for air/oil separation and spring clips to change precisely the ride height and spring pre-load tension. If their performance ever fades, refresh them in minutes with our inexpensive rebuild kits.
Alias™ Tires and All-Star™ Wheels:
The Rustler rides on impressive 2.8" All-Star™ mirror-chrome wheels. Alias™ step-pin rear tires and ribbed front tires keep the Rustler firmly planted on extreme off-road terrain.
The All-Star wheels feature a lightweight horizontal bead that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts are standard and all tires come pre-glued from the factory to get you rolling right out of the box.- Specs
Product Specifications
Part Number TRA37054-4-BLUE Scale 1/10 Drivetrain 2WD Kit Type No Battery Length 17.5" (445mm) Front Track 12.25" (311mm) Rear Track 12.25" (311mm) Weight 59.6oz (1.69 kg) Height (overall) 7" (178mm) Wheelbase 11.375" (289mm) Front Shock Length Long Rear Shock Length XX-Long Front Tires (pre-glued) Alias™ Ribbed 2.8" Rear Tires (pre-glued) Alias™ Step-Pin 2.8" Front Wheels 2.8" Mirror-Chrome (All-Stars™) Rear Wheels 2.8" Mirror-Chrome (All-Stars™) Electronic Speed Control XL-5™ Electronic Speed Control Motor (electric) Titan® 12T 550 (12-turn 550) Steering Servo tra2056 High Torque Waterproof Transmitter TQ 2.4GHz Radio Receiver tra6519 TQ 3-Channel Micro Gear Ratio (internal) 2.72 (final drive: 10.17) Differential Type Planetary Gear Pitch 48-Pitch Transmission Magnum 272™ Steering Bellcrank Chassis Type Modified Tub Chassis Material Composite Nylon Top-Speed 35+mph** Skill Level 1 *Battery Tray Dimensions 139mm x 47.5mm x 28mm Required Items NiMH or LiPo Battery, Charger, 4 "AA" Batteries (Transmitter) - Reviews
