Welcome to Larry's Performance R/C's Online

Traxxas (TRA) Logo

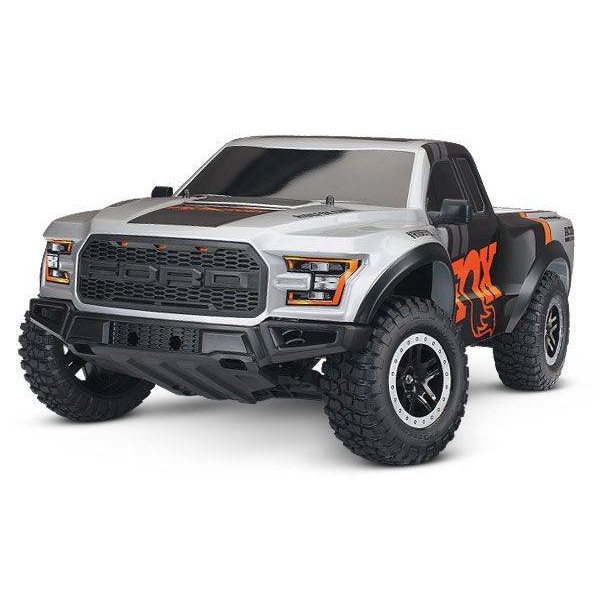

Ford Raptor 1/10 2WD RTR SCT with XL-5, FOX Edition


LOADING IMAGES
Traxxas (TRA) Logo Ford Raptor 1/10 2WD RTR SCT with XL-5, FOX Edition
$249.95
Ford F-150 Raptor RTR FOX edition captures all the details of the full size version. It also has all the power. With a Velineon™ brushless motor, reach speeds of 30+ MPH. Waterproof electronics and rugged design means you can drive around anywhere anytime.

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

Captures all the detail of the original Ford F-150 Raptor

The new Ford® Raptor replica from Traxxas takes you off-road with a whole new level of scale realism. The sleek Raptor body is fully detailed with an injection molded nylon composite grill and front bumper to truly capture the depth and detail of Ford’s original design. Integrated hood vents and side mirrors complete the look. The heavy-duty body is extra tough for all your off-roading adventures.
The Ford Raptor replica is wrapped around the proven performance and unmatched durability of the Traxxas Slash. Torque flows from the powerful Titan 12-Turn motor and XL-5 electronic speed control for instant response off-road. Full-ball bearings enhance precision control. The electronics are all fully waterproof so your fun never gets sidelined by a little water along the way.

Includes:

  • Traxxas 4-amp DC Peak Detecting Fast Charger
  • Traxxas Power Cell NiMH Battery with iDTM
  • Fully-assembled, Ready-To-Race®
  • TQ™ 2.4GHz radio
  • Waterproof Electronics with XL-5 Electronic Speed Control
  • ProGraphix® painted body.

Requires:

  • 4 "AA" (transmitter)

features

  • Officially licensed Ford F-150 Raptor body and graphics
  • Traxxas 4-amp DC Peak Detecting Fast Charger
  • Traxxas Power Cell NiMH Battery with iD™
  • Top speeds in excess of 30mph using the included optional 23-tooth pinion gear*
  • Traxxas' exclusive patented Training Mode™
  • Powerful Titan® 12T 550 modified motor with internal cooling fan
  • Race in dirt, mud, water, and snow thanks to Traxxas' innovative water-sealed electronics
  • TQ 2.4GHz transmitter
  • XL-5 Waterproof Electronic Speed Control
    • Innovative water sealed design
    • High current handling
    • Forward/reverse/brake
    • Smooth high-frequency control
    • EZ-Set® push-button setup
    • Thermal shutdown protection
    • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
    • Integrated on-off button
    • Three easy-to-program drive profiles
    • High efficiency MOSFET transistors
    • Equipped with patented Traxxas High-Current Connectors
    • Backed by the Traxxas Lifetime Electronics Warranty
  • Digital high-torque waterproof steering servo
    • 125 oz-in of torque and 0.16-second speed
  • O-ring sealed watertight receiver box keeps the micro receiver dry
  • Speed control and receiver are securely fastened to chassis
  • Long-wheelbase fiber-composite chassis
    • 13.2 inch wheelbase
    • Over 3.5-inches of ground clearance
  • Easy access battery compartment
  • Adjustable battery hold down accepts 6- and 7-cell flat packs and 7-cell hump packs
  • Chassis nerf bars absorb impact and support the body
  • Scale front and rear tube-style bumpers
  • Body mounts incorporate reinforced washers for additional body support
  • Efficient Magnum 272™ metal-gear transmission with ball bearings
  • Sealed gearbox protects the transmission with beefed up motor guard for extra protection
  • Revo®-Spec Torque-Control™ slipper clutch system
  • External gear cover with easy slipper access
  • Reliable composite planetary gear differential with a steel ring gear
  • Heavy-duty telescoping U-joint driveshafts and yokes
  • Adjustable steel Jato®-Style turnbuckles and captured rod ends
  • Captured rod ends won't pop off for superior durability
  • Precision hex hardware throughout
  • Efficient rubber-sealed ball bearings
  • Fully adjustable Ultra Shocks™ with X-ring technology
  • Progressive rate white powder coated shock springs feature a race-tuned responsive spring rate
  • Aggressive all-terrain scale tires include performance foam inserts and they come pre-glued on 2.2" split-spoke wheels with satin-chrome "beadlock" detail
  • The Traxxas Ford F-150 Raptor is backed by unparalleled Traxxas support and parts availability

Specs

Length: 22.36 inches (568mm)
Front Track: 11.65 inches (296mm)
Rear Track: 11.65 inches (296mm)
Weight: 76.2oz (2.16kg)
Height (overall): 8.425 inches (214mm)
Wheelbase: 13.2 inches (335mm)
Front Shock Length: Long
Rear Shock Length: XXLong
Front Tires: Scale All-Terrain; 2.2"
Rear Tires: Scale All-Terrain; 2.2"
Front Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
Rear Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
Speed Control Type: Waterproof XL-5 ESC
Motor (electric): Titan® 12T 550 (12-turn)
Gear Ratio (internal): 2.72 (final drive: 12.58)
Differential Type: Steel Composite Planetary
Gear Pitch: 48-Pitch
Transmission: Metal Gear Magnum 272™
Steering: Bellcrank
Chassis Type: Modified Tub
Chassis Material: Composite Nylon
Center Ground Clearance: 3.5 inches (89mm)
Top Speed: 30+mph*
Skill Level: 1
Radio System: TQ™ 2.4GHz (2-channel)

* With 7-cell battery and included optional 23-tooth pinion gear.

Product Videos

Features Overview

Brushless Ready:
The full-size Ford Raptor is built for extreme horsepower—so is the Traxxas model! Velineon™ brushless horsepower (sold separately) simply bolts in to boost speed to 40+mph. Add 11.1V Traxxas Power Cell LiPo batteries and you have the potential to double your speed--over 60mph! Bigger roosts and longer hang-times are right at your fingertips. The included steel transmission gears, full ball bearings, and high-quality metal turnbuckle links are the winning setup for brushless durability. The factory-installed planetary differential is Traxxas-tough with hardened steel gears that never need adjusting! Perfect for long-lasting, all-day fun. Accessory battery hold downs are available for use with large capacity LiPo battery packs that can extend speed and run time. Compare the durability and features to others and you'll see that only Traxxas makes them truly brushless ready.

XL-5 Waterproof Electronic Speed Control:
Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, low voltage detection, three throttle profiles, Thermal Shutdown Protection, 4-7 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support.

Titan® 12-Turn 550 Modified Motor:
The powerful Titan 12T 550 modified motor features an over-sized armature (30% larger compared to 540-sized armatures) with 12-turns of pure copper wire for big torque and increased power-handling capabilities. Lower running temperatures are achieved with an integrated cooling fan. The Titan 12T requires very little maintenance and is designed for consistent torque and high speeds from run to run, without fading.
Beyond the specs, the Titan 12T is made for dirt-roosting torque, lightning-quick acceleration, big-air jumps, and just about any other 4-wheel fun that demands real horsepower. Be sure to check out the videos to see it in action!

Precision 2.4GHz Control:
Switch on the power and drive! That's all there is to it with the TQ™ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ's advanced programming provides long-range control with smooth, glitch-free performance. The TQ's ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.

Traxxas 4-amp DC Peak Detecting Fast Charger:
For quick, convenient, hassle-free charging, a 4-amp DC Peak Detecting Fast Charger is included to maximize runtime and minimize down time. The included NiMH charger uses a 12-Volt DC power outlet for universal high-output charging. The brilliant LED provides charging status as soon as the battery is connected. The charger is optimized for charging your Traxxas iD Power Cell NiMH battery. Peak-detection circuitry makes sure the battery receives a full charge every time. The status LED flashes green to indicate when charging is in progress, then turns solid green when charging is complete for foolproof charging, peak performance, and maximum runtime.

Digital High-Torque Waterproof Steering Servo:
A high-performance truck needs a powerful steering servo for responsive performance. The waterproof steering servo ( tra2075 ) uses O-ring seals to keep the fun going when things get wet. The Traxxas digital high-torque servo provides precise steering authority and speed for wheel-to-wheel racing in the back yard or on the track.

Sealed Watertight Receiver Box:
The patented sealed receiver box is another Traxxas innovation that puts the Ford Raptor and all the Slash models in a league of their own. The antenna and servo wires route neatly through a special water-tight seal. A custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box. An aluminum antenna crimp nut looks good and holds the antenna tube securely in place.

Long-Wheelbase Chassis:
The Ford Raptor's chassis is shared with the award-winning Slash and features a 13.2" wheelbase, over 3.5-inches of ground clearance, and is molded in black for a tough new look. The chassis includes drain holes and a battery tray channel for routing servo wires to the receiver. Optional electronic speed control mounting bosses are incorporated into the chassis, making it easy to upgrade to the Extreme Power of the Velineon Brushless Power System. For race track competition, a transponder mount is located under the front shock tower when every second counts.

Adjustable Battery Hold Down:
The unique chassis design allows the use of 6-cell stick or side-by-side style battery packs and 7-cell stick, side-by-side, and hump battery packs for unmatched versatility. The extended chassis enables the various battery packs to be positioned forward or backward for front/rear weight bias tuning. An optional battery hold down kit is available for use with oversized batteries.

Scale All-Terrain Tires:
Realistic looks, realistic performance. The rugged tires have excellent grip in the dirt, just the right amount of slide on pavement, and are mounted and pre-glued on impressive 2.2" wheels with distinctive satin "beadlock" rings and black split-spoke centers.

Officially Licensed Replica Body:
No need for a paint or sticker session; the Ford F-150 Raptor rolls out of the box ready for action with a factory-finished with decals already applied for you, so it's Ready-to-Race®.
Specs

Product Specifications

Part NumberTRA58094-1-FOX
Kit TypeRTR
Length22.36 inches (568mm)
Front Track11.65 inches (296mm)
Rear Track11.65 inches (296mm)
Weight76.2oz (2.16kg)
Height (overall)8.425 inches (214mm)
Wheelbase13.2 inches (335mm)
Front Shock LengthLong
Rear Shock LengthXXLong
Front TiresScale All-Terrain; 2.2"
Rear TiresScale All-Terrain; 2.2"
Front Wheels2.2" Satin-Finish "beadlock" with black split-spoke center
Rear Wheels2.2" Satin-Finish "beadlock" with black split-spoke center
Speed Control TypeWaterproof XL-5 ESC
Motor (electric)Titan® 12T 550 (12-turn)
Gear Ratio (internal)2.72 (final drive: 12.58)
Differential TypeSteel Composite Planetary
Gear Pitch48-Pitch
TransmissionMetal Gear Magnum 272™
SteeringBellcrank
Chassis TypeModified Tub
Chassis MaterialComposite Nylon
Center Ground Clearance3.5 inches (89mm)
Top Speed30+mph*
Skill Level1
Radio SystemTQ™ 2.4GHz (2-channel)
Reviews
Questions & Answers

Sort By:

No questions yet. Be the first to ask the question!
Resources
Part List

Click here to see all parts
