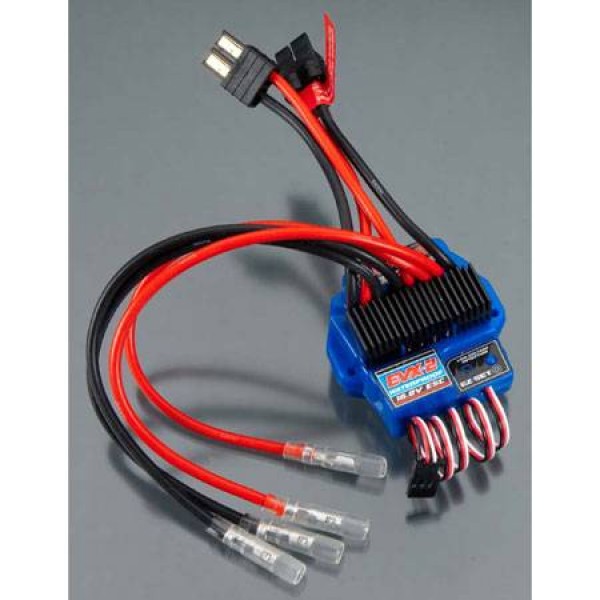

Traxxas EVX2 FWD/REV Waterproof ESC

EVX2 FWD/REV Waterproof ESC

• The EVX-2 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.
• The EVX-2 uses Traxxas exclusive EZ-Set push-button set-up and a multi-colored LED making it a snap to adjust.
• Microprocessor control has three built-in programming modes:
• Sport Mode with forward, brakes, and reverse
• Racing Mode with forward, brakes, and no reverse
• Patented Training Mode™ that limits forward and reverse power by 50% while still applying 100% brakes. Built-in thermal shutdown protection adds an extra level of safety.
• Sophisticated, high-frequency operation and low internal resistance provide longer run times, more speed, and more fun!
• The exclusive patented Training Mode™ limits full throttle output to 50% making it easier for new or young drivers to develop their control skills. With the high-frequency efficiency of the EVX-2, run time is also greatly increased. When they're ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!
• EVX-2 Waterproof ESC Features:
• Built-in two-stage low voltage detection (LVD)
• for Lithium Polymer (LiPo) battery use
• 16.8 Volts of Power
• Waterproof Design
• Microprocessor Controlled
• Traxxas High-Current Connectors*
• Three Drive Profiles
• Patented Training Mode
• EZ-Set® Push-Button Set-Up
• Thermal Shutdown Protection
• For Traxxas E-Maxx®, E-Revo® and Summit

Input voltage: 6-14 NiCad and NiMH cells (7.2 to 16.8 volts DC)
Input voltage: 4-cell LiPo (14.8 volts DC)
Case Size: 2.27"W x 2"D x 1.05"H
Weight: 3.6 ounces
Motor Limit (540 size): 10-turns
Motor Limit (550 size): 12-turns
On-Resistance­ (@Trans)–FWD/REV: 0.004 ohms / 0.004 ohms
Rated Current–FWD/REV: 180 amps / 180 amps
Braking Current: 360 amps
Continuous Current (at 100°F amb.): 30 Amps
Reverse Delay: None
BEC Voltage: 6.0 volts DC
BEC Current: 2.5 amps
Power Wire: 14 Gauge / 3"
Input Harness Wire: 26 Gauge / 9.5"
Motor Wires: 14 Gauge / 4"
Transistor Type: MOSFET
PWM Frequency: 1700 Hz
Thermal Protection: Thermal shutdown
Profiles:
- Sport Mode: 100% fwd, 100% brakes, 100% rev.
- Race Mode: 100% fwd, 100% brakes, no rev.
- Training Mode*: 50% fwd, 100% brakes, 50% rev.
Single-button setup: Yes, Traxxas EZ-Set®

*Patented
