OverviewA mini monster!

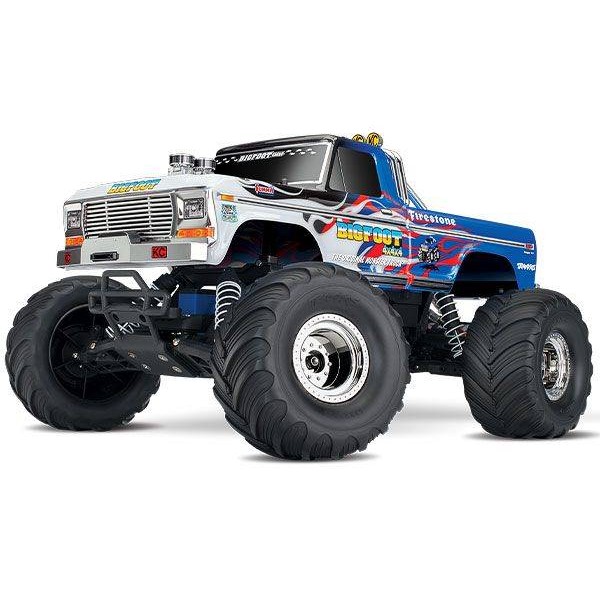

BIGFOOT® is “The Original Monster Truck”. This is the truck that started the monster truck phenomenon and brought car-crushing fun and excitement to fairgrounds and arenas everywhere. Traxxas faithfully captures the spirit and classic look of BIGFOOT No. 1 in amazing detail with this fully licensed replica. Relive the thrill of your first monster truck event with this classic powerhouse. Hammer the throttle for non-stop wheelies and crush the competition underneath its towering stance. Built Traxxas Tough™ for all-day fun, BIGFOOT comes out of the box fully assembled, waterproof, and Ready-To-Race®.
- TQ™ 2.4GHz Radio System
- XL-5 Electronic Speed Control
- 4-amp DC Peak Detecting Fast Charger
- ProGraphix® painted body.
- 4 "AA" (transmitter)
Length: 16.25" (413mm)
- Scale Replica Body of the BIGFOOT® No. 1 Truck
- 4-amp DC Peak Detecting Fast Charger
- Traxxas 7-cell NiMH battery with iDTM
- Traxxas TQ 2.4GHz radio system
- Waterproof electronics permit driving in water, mud and snow.
- Traxxas tra6519 3-channel micro receiver.
- Waterproof receiver box.
- High-torque Waterproof Traxxas tra2056 steering servo.
- Monstrous 4-inches of center ground clearance.
- The included optional 19-tooth pinion gear pushes BIGFOOT® to speeds over 30mph.*
- Powerful Titan® 12T 550 modified motor with internal cooling fan.
- High-performance waterproof XL-5™ Electronic Speed Control.
- Innovative watersealed design
- Three Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- 12-Turn motor limit for 550 size motors
- 15-Turn motor limit for 540 size motors
- Integrated on/off switch
- Traxxas EZ-Set® one-button setup
- LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
- High-efficiency MOSFET transistors
- Speed control and receiver are securely screwed to the chassis.
- Efficient Magnum 272™ three-gear transmission with ball bearings.
- Sealed gearbox protects the transmission with beefed up motor
- guard for extra protection.
- Revo®-spec Torque-Control™ slipper clutch system.
- External gear cover with easy slipper access.
- Reliable planetary gear differential.
- Efficient telescoping U-joint driveshafts.
- Fiber-composite monocoque chassis.
- Easy access battery compartment.
- Fully adjustable Ultra Shocks™ with X-ring technology.
- Powder-coated shock springs feature a new responsive spring rate.
- Durable solid camber links eliminate the need for adjustment.
- Captured rod ends won't pop off for superior durability.
- Bright Chrome Dish dual-profile wheels
- Pre-glued Terra-Grooved 2.2" tires
- ProGraphix® multi-colored painted body.
- Unparalleled Traxxas support parts availability.
Front Track: 12.75" (324mm)
Rear Track: 12.75" (324mm)
Weight: 65.3oz (1.85 kg)
Height (overall): 9.5" (241mm)
Wheelbase: 10.63" (270mm)
Front Shock Length: Long
Rear Shock Length: XXLong
Front Tires: Terra-Groove 2.2"
Rear Tires: Terra-Groove 2.2"
Front Wheels: Bright Chrome Dish (Dual Profile)
Rear Wheels: Bright Chrome Dish (Dual Profile)
Electronic Speed Control: XL-5™ Electronic Speed Control
Motor (electric): Titan® 12T 550 (12-Turn)
Steering Servo: tra2056 High Torque Waterproof
Transmitter: TQ 2.4GHz Radio
Receiver: tra6519 3-Channel Micro
Gear Ratio (internal): 2.72 (final drive: 12.34)
Differential Type: Planetary
Gear Pitch: 48-Pitch
Transmission: Magnum 272™
Steering: Single Point
Chassis Type: Modified Tub
Chassis Material: Composite Nylon
Top Speed: 30+mph**
Skill Level: 1
*Battery Tray Dimensions: 138mm x 46mm x 26mm
*Battery expansion kit available ( tra3725X ).
**With 7-cell battery and included optional 19-tooth pinion gear.
25+mph with 6-cell battery and stock installed pinion.
Product VideosPrecision 2.4GHz Control Radio System:
Switch on the power and drive! That's all there is to it with the TQ™ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ's advanced programming provides long-range control with smooth, glitch-free performance. The TQ's ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.
Traxxas 4-amp DC Peak Detecting Fast Charger!:
For quick, convenient, hassle-free charging, a 4-amp DC fast charger is included to maximize runtime and minimize down time. The included NiMH charger uses a 12-Volt DC power outlet for universal high-output charging. The brilliant LED provides charging status as soon as the battery is connected. The charger is optimized for charging your Traxxas iD Power Cell NiMH battery. Peak-detection circuitry makes sure the battery receives a full charge every time. The status LED flashes green to indicate when charging is in progress, then turns solid green when charging is complete for foolproof charging, peak performance, and maximum runtime.
Titan® 12-Turn 550 Modified Motor:
BIGFOOT comes equipped with a powerful Titan 12T 550 modified motor for rock crushing torque, hardcore wheelie launches, and just about any other 4-wheel fun demanding real horsepower. The Titan's over-sized armature (30% larger compared to 540-sized armatures) is equipped with 12-turns of pure copper wire for big torque and increased power-handling capabilities. The integrated cooling fan lowers running temperatures for extended run times. The Titan 12T requires very little maintenance and provides consistent torque and high speeds from run to run, without fading.
High-Torque Waterproof Steering Servo:
A monster truck needs a powerful steering servo for responsive performance, and Traxxas delivers with the 2056 high-torque servo. This waterproof steering servo uses O-ring seals to keep the fun going when things get wet. Waterproof for all-weather action, the #2056 provides 80 oz-in of steering muscle. That's twice the power of typical "standard" servos.
Terra Groove Tires and Beadlock-Style Wheels:
Rugged tires developed specifically for Traxxas monster trucks to emulate the "hand carved" look of the full-size treads, and are molded in a unique compound that hooks up for maximum acceleration and great grip on a wide variety of surfaces including dirt, grass, pavement, and rocks. Deep-dish wheels with bead-lock detailing complete the aggressive, authentic look.
Waterproof Receiver Box:
BIGFOOT's innovative receiver box is fully waterproof, yet it's easy to access the receiver maintenance. The exclusive patented design holds a 3-channel micro receiver that saves weight and provides reliable, long-range R/C performance.
Durable Black Parts:
The durable monocoque chassis tub is designed for ultimate ground clearance and is made from the highest quality nylon composites. Many parts including the bumpers, bumper mounts,and skip plates are molded in color for a menacing look.
Included Optional Pinion Gear:
BIGFOOT reaches its blistering 30+mph top speed on-road using the optional 19-tooth pinion gear (included) and the 7-cell 8.4V battery pack. Out of the box, the installed 14-tooth pinion gear is just right for all-around, wheelie-popping, off-road action.
Monster 4" Ground Clearance:
With 4-inches of center ground clearance, the BIGFOOT No.1 goes places other trucks can't! BIGFOOT easily tackles real world obstacles such as tall grass, curbs, and rocks.
Part Number TRA36034-1-FLME Scale 1/10 Drivetrain 2WD Kit Type RTR Length 16.25" (413mm) Front Track 12.75" (324mm) Rear Track 12.75" (324mm) Weight 65.3oz (1.85 kg) Height (overall) 9.5" (241mm) Wheelbase 10.63" (270mm) Front Shock Length Long Rear Shock Length XXLong Front Tires Terra-Groove 2.2" Rear Tires Terra-Groove 2.2" Front Wheels Bright Chrome Dish (Dual Profile) Rear Wheels Bright Chrome Dish (Dual Profile) Electronic Speed Control XL-5™ Electronic Speed Control Motor (electric) Titan® 12T 550 (12-Turn) Steering Servo tra2056 High Torque Waterproof Transmitter TQ 2.4GHz Radio Receiver tra6519 3-Channel Micro Gear Ratio (internal) 2.72 (final drive: 12.34) Differential Type Planetary Gear Pitch 48-Pitch Transmission Magnum 272™ Steering Single Point Chassis Type Modified Tub Chassis Material Composite Nylon Top Speed 30+mph** Skill Level 1 *Battery Tray Dimensions 138mm x 46mm x 26mm
