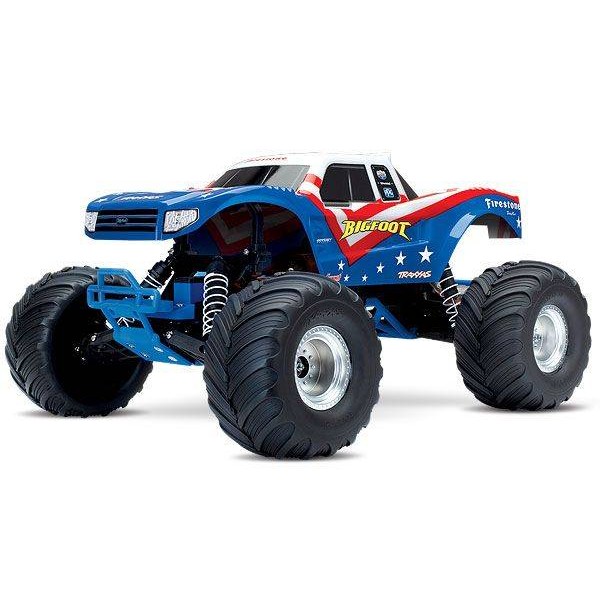

Traxxas Bigfoot 1/10 Scale Replica Monster Truck, RED / WHITE / BLUE

BIGFOOT® doesn’t quit. It’s tall, drive-over-anything ground clearance and ultra-tough suspension make BIGFOOT feel nearly indestructible. BIGFOOT’s Titan 12-turn modified motor and racing-style transmission deliver a knockout punch to the competition. No other truck offers Bigfoot’s style, capability, and reputation for durability. It’s a proven favorite with a formula for fun that nothing else can touch. BIGFOOT is perfect for almost any age driver or skill level. The XL-5 electronic speed control can be programmed to run at 50% maximum throttle (Training Mode™), giving new drivers a chance to try out their skills before unleashing full-throttle monster power.

With an aggressive, more racing inspired appearance courtesy of its desert race truck inspired body, BIGFOOT® charges up and over everything in its path. However, it’s not just looks; the updated BIGFOOT has the handling to match its ground-pounding performance.

The 1/10-scale version of the car crushing titan is built on the proven performance and toughness of the Stampede 2WD monster truck. Traxxas brings a new flavor to monster truck action with the BIGFOOT edition Stampede.

Traxxas-tough durability is unmatched. When it comes to speed, the Titan 12-turn 550 modified motor and racing-style Magnum 272™ transmission launch BIGFOOT to speeds over 30mph*. The integrated cooling fan in the Titan 12T pulls air through the motor keeping it cool. Airflow is routed through cooling channels molded into the motor plate. A cooler running motor delivers faster speeds, longer runtime, and extended motor life.

BIGFOOT benefits from its Traxxas heritage incorporating advanced Revo® technology to bolster performance. The Magnum 272 transmission is fully sealed and comes equipped with efficient and precise ball bearings and an advanced Revo®-Spec Torque-Control™ slipper clutch. Terra Groove tires provide sure-footed traction no matter how extreme the terrain. The Terra Grove tires are mounted on solid satin-finished wheels. The tires grip the pavement, tear through rocks, and have the ability to kick-up massive roost. Wherever your next grudge match lands BIGFOOT will be ready.

• Scale Replica Body of the Modern BIGFOOT Truck
• 4-amp DC Peak Detecting Fast Charger
• Traxxas 7-cell NiMH battery with iDTM
• Traxxas TQ 2.4GHz radio system
• Waterproof electronics permit driving in water, mud and snow
• Traxxas tra6519 3-channel micro receiver
• Waterproof receiver box
• High-torque Waterproof Traxxas tra2056 steering servo
• Monstrous 4-inches of ground clearance
• The included optional 23-tooth pinion gear pushes Stampede
• to speeds over 30mph*
• Powerful Titan® 12T 550 modified motor with internal cooling fan
• High-performance waterproof XL-5™ Electronic Speed Control
• Innovative watersealed design
• Three Drive Profiles
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
• 12-Turn motor limit for 550 size motors
• 15-Turn motor limit for 540 size motors
• Integrated on/off switch
• Traxxas EZ-Set® one-button setup
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• High-efficiency MOSFET transistors
• Speed control and receiver are securely screwed to the chassis
• Efficient Magnum 272™ three-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor
• guard for extra protection
• Torque-Control™ slipper clutch system.
• External gear cover with easy slipper access
• Reliable planetary gear differential
• Efficient telescoping U-joint driveshafts
• Fiber-composite monocoque chassis
• Easy access battery compartment
• Fully adjustable Ultra Shocks™ with X-ring technology
• Powder-coated shock springs feature a new responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won't pop off for superior durability
• Satin-Chrome Dish dual-profile wheels
• Pre-glued Terra-Grooved 2.2" tires
• ProGraphix® multi-colored painted body
• Unparalleled Traxxas support parts availability

Length: 16.25" (413mm)
Front Track: 12.75" (324mm)
Rear Track: 12.75" (324mm)
Weight: 65.3oz (1.85 kg)
Height (overall): 9.5" (241mm)
Wheelbase: 10.63" (270mm)
Front Shock Length: Long
Rear Shock Length: XXLong
Front Tires: Terra-Grooved 2.2"
Rear Tires: Terra-Grooved 2.2"
Front Wheels: Satin-Chrome Dish (Dual Profile)
Rear Wheels: Satin-Chrome Dish (Dual Profile)
Electronic Speed Control: XL-5™ Electronic Speed Control
Motor (electric): Titan® 12T 550 (12-Turn)
Steering Servo: tra2056 High Torque Waterproof
Transmitter: TQ 2.4GHz Radio
Receiver: tra6519 3-Channel Micro
Gear Ratio (internal): 2.72 (final drive: 12.34)
Differential Type: Planetary
Gear Pitch: 48-Pitch
Transmission: Magnum 272™
Steering: Single Point
Chassis Type: Modified Tub
Chassis Material: Composite Nylon
Top Speed: 30+mph**
Skill Level: 1
*Battery Tray Dimensions: 138mm x 46mm x 26mm
Included Charger: 4-amp DC Peak Detecting Fast Charger
Included Batteries: Traxxas 7-cell NiMH battery with iDTM
Required Batteries: 4 "AA" (transmitter)

*Battery expansion kit available ( tra3725X ).
**With 7-cell battery and included optional 23-tooth pinion gear.
25+mph with 6-cell battery and stock installed pinion.

Monster Truck Bodies:
“The Original Monster Truck” continues to carry its iconic name forward, but with a modern twist. This is BIGFOOT for the next generation. It’s not just about driving up on top of parked cars anymore, the next generation BIGFOOT is built for speed, power, and big air.

Terra Groove Tires and Beadlock-Style Wheels:
Rugged tires developed specifically for Traxxas monster trucks to emulate the "hand carved" look of the full-size treads, and are molded in a unique compound that hooks up for maximum acceleration and great grip on a wide variety of surfaces including dirt, grass, pavement, and rocks. Deep-dish wheels with bead-lock detailing complete the aggressive, authentic look.

Titan® 12-Turn 550 Modified Motor:
BIGFOOT comes with a powerful Titan 12T 550 modified motor with internal cooling fan. An industry first for this class of truck. The Titan's over-sized armature (30% larger compared to 540-sized armatures) is equipped with 12-turns of pure copper wire for big torque and increased power-handling capabilities. Lower running temperatures are achieved with the integrated cooling fan. The Titan 12T requires very little maintenance and is designed for consistent torque and high speeds from run to run, without fading.

Traxxas 4-amp DC Peak Detecting Fast Charger:
BIGFOOT includes a 4-amp peak detecting charger for quick, convenient, hassle-free charging. The charger uses a 12-Volt DC power outlet for charging in the field. The brilliant LED provides charging status while the battery charges. The peak-detecting charger is optimized for charging Traxxas Power Cell NiMH battery packs. Just plug the included Power Cell battery in for a perfect charge, run after run.

XL-5 Electronic Speed Control:
Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, low voltage detection for compatibility with 2-cell LiPo battery packs, three throttle profiles, Thermal Shutdown Protection, 4-7cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation.

Precision 2.4GHz Control:
With the TQ™ 2.4GHz radio system, you just switch on a drive. There are no channels or frequencies to manage, so the focus is on having fun. The TQ's ergonomic design is comfortable for all-day driving, and its sleek lines are enhanced by an internal antenna that is impervious to damage.

High-Torque Waterproof Steering Servo:
A monster truck needs a powerful steering servo for responsive performance, and Traxxas delivers with the 2056 high-torque servo. This waterproof steering servo uses O-ring seals to keep the fun going when things get wet. Waterproof for all-weather action, the tra2056 provides 80 oz-in of steering muscle. That's twice the power of typical "standard" servos.

Waterproof Receiver Box:
BIGFOOT's innovative waterproof receiver box allows easy access to the receiver for maintenance. The unique patented design holds a 3-channel micro receiver that saves weight and provides reliable, long-range RC performance.

Included Optional Pinion Gear:
BIGFOOT reaches its blistering 30+mph top speed on-road using the optional 23-tooth pinion gear (included) and the 7-cell 8.4V battery pack. Out of the box, the installed 19-tooth pinion gear is just right for all-around, wheelie-popping, off-road action.
