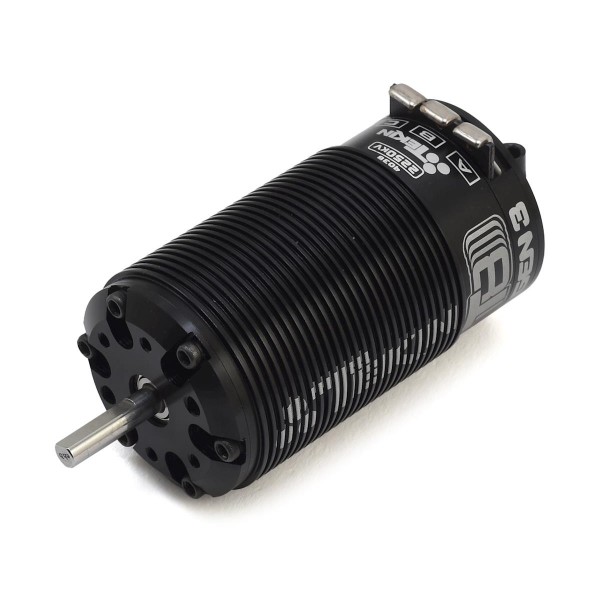

Introducing the Tekin Redline T8 GEN3 4038 Can, 2250kv Brushless Sensored Motor, specifically designed for 1/8 Truggy applications. These T8 GEN3 motors from Tekin are the epitome of racing performance, offering unparalleled power and versatility. Featuring a stronger rotor, enhanced stack features, and reduced resistance, these motors deliver an advanced power delivery system for optimal performance. With industry-leading RC motor technology, the T8 GEN3 motors provide relentless torque and power. Paired with the RX8 GEN3 (TEKTT2302) and its innovative D2 Dual Drive Technology, the T8 GEN3 ensures efficient operation and precise control across the entire RPM range.
Features:
- CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
- Matte Anodized for Maximum Corrosion Resistance
- Sensored and Sensorless Operation
- Low Resistance HD Solder Tabs
- Rebuildable Design
- Solderless Sensor PCB Replacement
- 4-Pole Neodymium Sintered Magnet
- Dual-Plug Sensor Wire Harness
- ABEC5 Precision High Speed Oversized Bearings
- Precision Engineered for Maximum Energy Conversion
- Designed to be paired with the RX8 GEN3 ESC
- ROAR Approved
- Recommended for 1/8 truggy and 1/8 monster truck applications
Specs:
- Input Voltage: (recommended kV for each popular voltage)
- 4S: 2250kV / 2000kV
- 5S: 1700kV / 1550kV
- 6S: 1350kv
- Weight: 368g / 13oz
- Shaft Dimensions: 5mm (.125") x 19mm
- Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
- Motor Length: 77mm / 3.03"
- Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
- Rotor Size: 18.5mm
- Rebuildable: Yes
- Specs
Product Specifications
Part Number TEKTT2345 - Reviews
