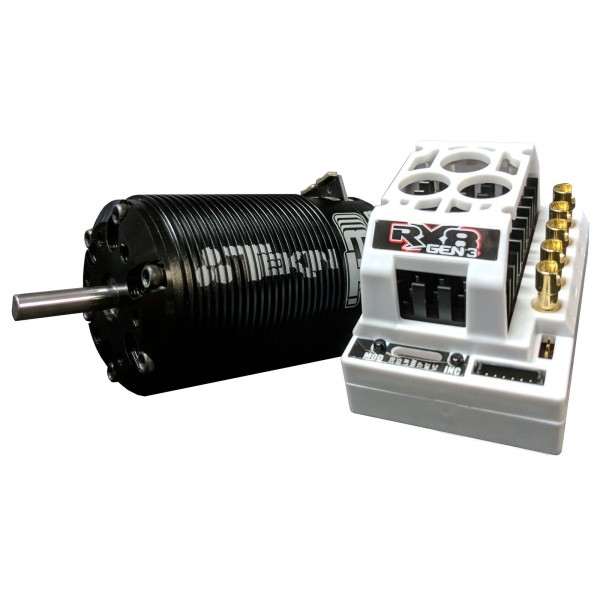

Tekin Gen3 1/8 RX8 ESC/T8 with Gen3 1900kV Brushless Motor Combo

RX8 GEN3
The RX8 platform has established its reputation for handling the demands of racing, offering advanced features such as a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity, and more. Thanks to Tekin's innovative D2 Dual Drive Mode Technology, the RX8 smoothly operates both Sensored and Sensorless motor drives, providing the ultimate versatility. Its compact size ensures effortless installation on any chassis, and the included hardware allows for additional security during mounting. Enjoy the best of both worlds with the Tekin RX8, a powerful and reliable choice for your racing endeavors.

T8 GEN3 Motors
Tekin's T8 GEN3 racing motors set the standard for racing performance, delivering unmatched power and versatility. Featuring a stronger rotor, updated stack features, and lower resistance, the T8 GEN3 motors offer an advanced and efficient power delivery system. Experience relentless amounts of torque and power, thanks to Tekin's industry-leading RC motor technology. When paired with an RX8 GEN3 utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 motor provides precise control and efficiency throughout the entire RPM range. No matter the challenges on the track, the T8 GEN3 ensures Pro-level control of your chassis, making it an essential component for competitive racing.

• RX8 GEN3:
• Updated HD Gold-plated Solder Posts for Easy Soldering
• Updated Adjustable Torque Control
• Updated Adjustable Throttle and Brake Frequencies
• Updated HD High Voltage Programmable BEC
• Ultra-smooth and Precise Throttle and Braking Control
• Compatible with Brushless and Brushed Motors
• Easily Access Programming, Anywhere, Anytime
• Datalogging Capability
• EZ Access HotWire Programming Port
• HotWire Interface for Advanced Programming and Updating
• D2: Dual Drive Mode Technology
• On-Board Temperature Indicator
• HDAC: High Density Copper PCB's
• Sensor Plug for Precise Commutation with all Motors
• Self Test Diagnostics and Factory Reset
• Pit Tune Mode
• DGF2: Digital Glitch Filtering V2
• QuickTune Programming
• One-Touch Radio Calibration
• T8 GEN3:
• CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
• Matte Anodized for Maximum Corrosion Resistance
• Sensored and Sensorless Operation
• Low Resistance HD Solder Tabs
• Rebuildable Design
• Solderless Sensor PCB Replacement
• 4-Pole Neodymium Sintered Magnet
• Dual-Plug Sensor Wire Harness
• ABEC5 Precision High Speed Oversized Bearings
• Precision Engineered for Maximum Energy Conversion
• Designed to be paired with the RX8 GEN3 ESC
• ROAR Approved

RX8 GEN3 Specifications:
Controls: Forward/Brake/Reverse
Input Voltage: 2S-6S LiPo / 4-16S NiMH-NiCD
BEC: 6.0v / 7.4v @ 8amps
Motor Limit Brushless Mode: 2S - No Limit; 3S - 4000kV; 4S - 3500kV; 5S - 2200kV; 6S - 2200kV
Motor Limit Brushed Mode: No Limit
Max Current: 300amps per phase
Burst Current: 1000amps per phase
Timing Profiles: 7 choices (on board)
Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
Dimensions: 1.5x2.2x1.4" / 38x55.8x35.5mm
Weight: 2.7oz / 76.5g
Recommended Applications: 1/10 4WD SCT, 1/8 4WD Buggy, 1/8 4WD Truggy, 1/8 4WD Monster Truck, 1/8 4WD Touring Car, 1/8 4WD GT, 1/8 Dirt Oval, 1/10 (and larger) Rock Crawler
T8 GEN3 Specifications:
KV: 1900 (rated for 4S)
Weight: 311g / 11oz
Shaft Dimensions: 5mm (.125") x 19mm
Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
Motor Length: 69mm / 2.71"
Bearing Dimensions: Front: 5x16x5mm / Rear: 5x11x5mm
Rotor Size: 18.5mm
Rebuildable: Yes
