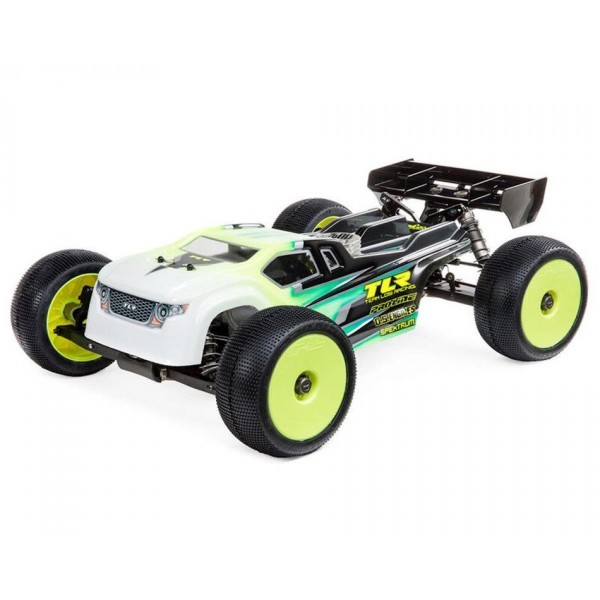

Team Losi Racing 1/8 8IGHT-XT/XTE 4WD Nitro/Electric Truggy Race Kit


LOADING IMAGES
Team Losi Racing 1/8 8IGHT-XT/XTE 4WD Nitro/Electric Truggy Race Kit
$769.99
The Team Losi Racing 1/8 8IGHT-XT/XTE 4WD Nitro/Electric Truggy Race Kit. Built on the championship-winning heritage of its predecessors and features tons of improved parts.

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The new Team Losi RacingĀ® 8IGHT-XT/XTE Next Generation Truggy builds on the championship-winning heritage of its predecessors with updates to the suspension geometry and drivetrain as well as the chassis layout that make it both easier to drive and tougher to beat. Plus, it includes Nitro and Electric in one box! The 8IGHT-XT/XTE has a combination of features second-to-none including large footprint engine mount, 3mm chassis, cab forward body, machined aluminum shock caps, and so much more. Designed to win straight out of the box, the 8IGHT-XT/XTE expands performance and is ready for the winner's circle.

Includes:

  • (1) TLR 8IGHT XT/XTE Nitro/Electric Truggy Race Kit
  • (1) Product Manual

Requires:

  • Electronic Speed Control
  • Servo
  • Radio System
  • Charger
  • Battery
  • Paint
  • Tools
  • CA Glue
  • Motor or Engine with Tuned Pipe

Notes:

Body is sold clear and is shown painted for advertising purposes only.

features

  • Nitro and Electric Parts Included
  • Improved Suspension Geometry
  • Flex Tune Suspension Arms
  • Wider 3mm Chassis
  • Larger Pinion Bearing
  • Cab Forward Style Body
  • Chassis Side Guards
  • Large Footprint Nitro Engine Mount
  • One Piece Electric Motor Mount
  • Adjustable Caster Blocks
  • Bleeder Shock Caps
  • Balanced Chassis
  • Ackerman Adjustable Draglink Steering Rack
  • Machined Aluminum Shock Towers
  • Better Diff Access
  • Sway Bar System
  • Equalized Driveline
  • Updated Radio Tray
  • Optimized Shocks
  • Ball Bearing Throttle and Brake Actuator
  • Large Bearing Spindles and Carriers
  • Shorter Wheelbase
  • LiPo/LiIon Compatible Battery Box

Specs

Approximate Assembly Time: Approximately 3-5 hours
Ball Bearings: Full set
Battery: Sold Separately
Body: Unpainted
Brakes: Ball bearing equipped brake actuator
Charger: Sold Separately
Chassis: 0.12" (3mm ) 7075-T6 hard anodized aluminum
Completion Level: Kit
Differential: 3 sealed viscous filled gear diffs
Drivetrain: 4WD
Drive Type: Forward/Reverse
Engine Size: .21 cu in (3.4cc) sold separately
Final Drive Ratio: 16.6:1
Front Track: 15.8" (402mm)
Fuel Tank Capacity: 5.1oz (150cc)
Power Type: Electric
Gear Pitch: 1.0 Mod
Gear Ratio: 4.5:1
Ground Clearance: 1.6" (40mm)
Internal Gear Ratio: 4.5:1
Max Battery Dimensions: 5.4 x 1.8 x 1.5" (138 x 47 x 40mm)
Motor Type: Brushless
Pinion: 13T
Product Height: 7.3" (185 mm)
Product Length: 21.1" (536 mm)
Product Weight: 9lbs (4082g)
Product Width: 16.6" (422 mm)
Radio: Sold Separately
Rear Track: 15.8" (402mm)
Receiver: Sold Separately
Scale: 1/8
Servos: Sold Separately
Shock Type: Aluminum body, oil-filled
Speed Control: Sold Separately
Spur Gear: 48T
Suspension: Independent
Track: 15.8" (402mm) front and rear
Vehicle Type: Truggy
Water-Resistant: Yes
Wheelbase: 14.7" (373mm)

Features Overview

Nitro and Electric parts included:
All of the items to run either nitro or electric included in one box.

Improved Suspension Geometry:
The 8IGHT-XT/XTE Next Gen suspension geometry has been completely revamped making a truck that is fast, nimble, and easy to drive. This includes a myriad of updates including wider front pivot with less scrub radius, narrower rear pivot, longer front and rear arms, and updated hub offset.

Flex Tune Suspension Arms:
All new suspension arms have been designed to accept stiffener plates that will allow racers to tune the flex of the suspension. The kit will include molded plates with optional carbon fiber plates available separately.

Wider 3mm Chassis:
Chassis width has been increased to aid in stability and give the truggy a more neutral feel as well as equalized side to side for equal torsional flex and thinned down to 3mm for weight savings.

Chassis Side Guards:
New chassis side guards that have an improved fit onto the chassis.

Large Footprint Nitro Engine Mount:
Lightweight large footprint engine mount that reduces flex underneath the engine to eliminate chassis fatigue on high traction race surfaces for nitro.

One Piece Electric Motor Mount:
One piece aluminum motor mount that is easy to adjust pinion sizing for electric motors.

Adjustable Caster Blocks:
17.5 deg caster blocks that allow the height of the spindle to be adjusted.

Better Diff Access:
The front and rear diff case have been altered to allow easier access to the differentials without removing the bulkheads from the vehicle.

Optimized Shocks:
The 8IGHT-X shocks are optimized and lightened to decrease the center of gravity and lower the weight of the car.

Shorter Wheelbase:
The wheelbase has been shortened to aid in grip as well as provide more agile handling.

LiPo/Li-Ion Compatible Battery Box:
The battery box has been designed so that you can now fit either common LiPo receiver packs or Li-Ion receiver packs.
Specs

Product Specifications

Part NumberTLR04009
Scale1/8
Drivetrain4WD
Kit TypeUnassembled Kit
Approximate Assembly TimeApproximately 3-5 hours
Ball BearingsFull set
BatterySold Separately
BodyUnpainted
BrakesBall bearing equipped brake actuator
ChargerSold Separately
Chassis0.12" (3mm ) 7075-T6 hard anodized aluminum
Completion LevelKit
Differential3 sealed viscous filled gear diffs
Drivetrain4WD
Drive TypeForward/Reverse
Engine Size.21 cu in (3.4cc) sold separately
Final Drive Ratio16.6:1
Front Track15.8" (402mm)
Fuel Tank Capacity5.1oz (150cc)
Power TypeElectric
Gear Pitch1.0 Mod
Gear Ratio4.5:1
Ground Clearance1.6" (40mm)
Internal Gear Ratio4.5:1
Max Battery Dimensions5.4 x 1.8 x 1.5" (138 x 47 x 40mm)
Motor TypeBrushless
Pinion13T
Product Height7.3" (185 mm)
Product Length21.1" (536 mm)
Product Weight9lbs (4082g)
Product Width16.6" (422 mm)
RadioSold Separately
Rear Track15.8" (402mm)
ReceiverSold Separately
Scale1/8
ServosSold Separately
Shock TypeAluminum body, oil-filled
Speed ControlSold Separately
Spur Gear48T
SuspensionIndependent
Track15.8" (402mm) front and rear
Vehicle TypeTruggy
Water-ResistantYes
Wheelbase14.7" (373mm)
