Overview

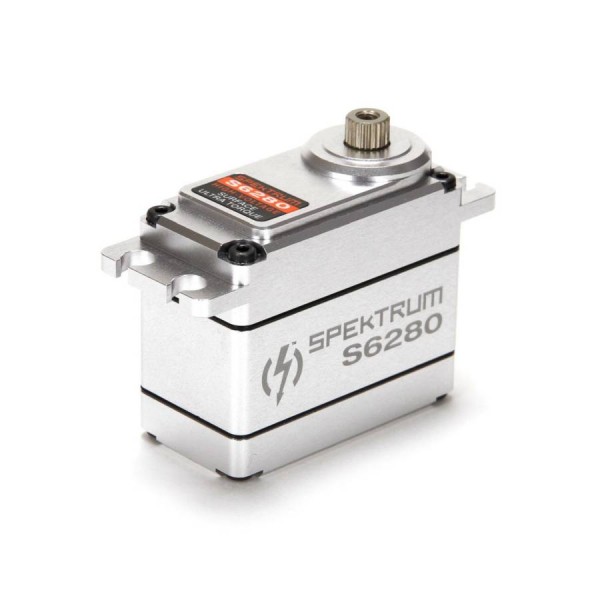

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.
features
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
- Waterproof
- 1-Year Limited Warranty
Application: 1/8 Off-RoadSpecs
Bearing: Dual
Bushing Or Bearing: Bearing
Connector Type: Universal
Current Draw Idle: 10.2mA @ 6.0V
Current Draw Stall: 4900mA @ 6.0V
Gear Type: Metal
Servo Speed: 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V, at no load
Maximum Servo Torque: 350-499 oz-in
Motor Type: Coreless
Product Height: 1.38 in (35.1mm)
Product Length: 1.61 in (41mm)
Product Weight: 2.8 oz (79.4g)
Product Width: 0.82 in (20.8mm)
Programmable: No
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Standard
Servo Type: Digital
Spline Count: 23 Teeth
Torque: 364 oz-in (26.2kg-cm) @ 6V; 440 oz-in (31.7kg-cm) @ 7.4V; 496 oz-in (35.7kg-cm) @ 8.4V- Specs
Product Specifications
Part Number SPMSS6280 Application 1/8 Off-Road Bearing Dual Bushing Or Bearing Bearing Connector Type Universal Current Draw Idle 10.2mA @ 6.0V Current Draw Stall 4900mA @ 6.0V Gear Type Metal Servo Speed 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V, at no load Maximum Servo Torque 350-499 oz-in Motor Type Coreless Product Height 1.38 in (35.1mm) Product Length 1.61 in (41mm) Product Weight 2.8 oz (79.4g) Product Width 0.82 in (20.8mm) Programmable No Servo Operating Voltage 6.0 - 8.4V (HV) Servo Size Category Standard Servo Type Digital Spline Count 23 Teeth Torque 364 oz-in (26.2kg-cm) @ 6V; 440 oz-in (31.7kg-cm) @ 7.4V; 496 oz-in (35.7kg-cm) @ 8.4V - Reviews
