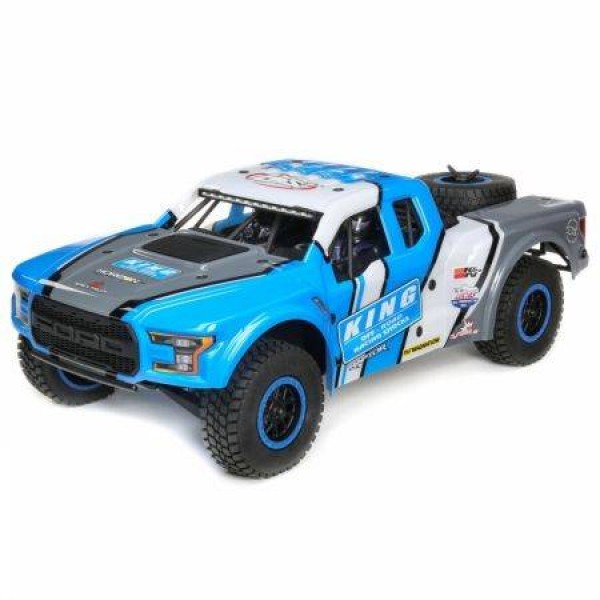

Losi "King Shocks" Ford Raptor Baja Rey RTR 1/10 4WD Desert Truck


LOADING IMAGES
Losi "King Shocks" Ford Raptor Baja Rey RTR 1/10 4WD Desert Truck
$429.99
This is the Losi "King Shocks" Ford Raptor Baja Rey. A Ready to Race (RTR) Brushless 1/10 scale 4WD Desert Truck with an aluminum chassis, full-size working spare tire, Spektrum DX2E Active Radio System, and AVC (Active Vehicle Control) for ultimate control

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The Losi® Ford Raptor Baja Rey® is the most authentic looking Desert Truck on the market with the performance and durability of a race vehicle. Officially licensed, it comes equipped with a Dynamite® 3800Kv brushless power system, as well as a solid rear axle, independent front suspension, and roll cage with upright shocks, so you can tear across all types of rocky off-road terrain. And you'll do so with the full-throttle freedom that only AVC® technology can provide. Just like the full scale Ford Raptor, the onboard traction control allows you to fly across the desert at speeds in excess of 50mph all while in complete control and completely dialed in. You get an authentic off-road racing experience with injection molded details, light bars and two licensed trim schemes. The Ford Raptor Baja Rey has just raised the bar another level.

Includes:

  • (1) Ford Raptor Baja Rey: 1/10 4WD RTR Desert Truck
  • (1) Spektrum™ 6-Channel DSMR® AVC Surface Receiver (installed)
  • (1) Spektrum™ 9KG 23T Waterproof Servo (installed)
  • (1) Dynamite® Fuze™ 130A Sensorless Brushless Waterproof ESC (installed)
  • (1) Dynamite® Fuze™ 550 Brushless Motor 3800Kv (installed)
  • (1) Spektrum™ DX2E 2.4GHz Transmitter
  • (4) AA Batteries (for transmitter)
  • (1) Product Manual

Requires:

  • 2S or 3S Hardcase LiPo battery with EC3 or IC3 connector
  • Apprioriate LiPo charger

features

  • Officially Licensed Ford Body Panels and Trim Schemes
  • Over the top scale details including custom body, 4-link suspension and more.
  • Dynamite® 3800Kv Brushless Power System
  • Long Travel 4-link Live Rear Axle
  • Long Travel Independent A-Arm Front Suspension
  • Easy-Access Motor
  • Rear-Loading Battery
  • Sealed Metal-Gear Transmission and Diffs
  • Coil-over Oil-Filled Shocks
  • Waterproof Electronics
  • Bolt-On Body Panels and Detailed Interior
  • LED Light Bar (Front and Rear)
  • Aluminum Chassis
  • Full-Size Spare Tire
  • Spektrum™ DX2E Active™ Radio System
  • AVC Traction Control

Specs

Approximate Assembly Time: No assembly required
Ball Bearings: Full set
Batteries: One 2 or 3S at least 5000mAh hardcase LiPo required
Battery Dimensions: 5.45 x 1.81 x 0.98" (138.5 x 46 x 25mm)
Body: Four piece screen printed 2018 Ford Raptor licensed body
Charger: Required, compatible with selected battery
Chassis: 0.12" (3mm) thick aluminum
Completion Level: Ready-To-Run
Differential: Sealed front and center diffs can be tuned with different weight fluids, locked rear diff
Drivetrain: 4WD Shaft Drive
Final Drive Ratio: 10.99:1
Gear Pitch: 1.0 Module
Ground Clearance: 2.2" (55mm)
Height: 7.6" (190mm)
Internal Gear Ratio: 3.8:1
Length: 21.6" (540mm)
Motor Size: 550
Motor Type: Brushless, non-sensored 550 size
Pinion: 13T
Radio: Spektrum DX2E transmitter with 6-ch DSMR AVC surface receiver
Servos: Waterproof metal gear steering servo
Shock Type: Oil-filled, front 3.9" (100mm), 4.8" (122mm) rear
Size/Scale: 1/10
Speed Control: Dynamite Fuze 130A
Spur Gear: 40T
Suspension: Front, independent, Rear 4-link
Tire Compound: Medium
Tire Diameter: 4.45" (113mm)
Tire Tread: Desert Claws
Track: 11.6" (295mm), distance between outer edges of tires measured side-to-side
Vehicle Type: Desert Truck
Water-Resistant: Yes
Weight: 6.1 lbs (2.8kg)
Wheel Diameter: Outer, 2.2" (56mm), Inner 3.0" (76mm)
Wheel Type: Black Rhino Alpine
Wheel Width: 2.3" (58.4mm)
Wheelbase: 14.6" (370mmm)
Width: 12.6" (320mm)

Product Videos

Features Overview

Officially Licensed Ford Trim Schemes:
Officially licensed Ford Raptor body panels, licensed Black Rhino Wheels and King Shocks trim schemes bring authentic scale details to the Ford Raptor Baja Rey. These will have racers doing double takes as they take on all comers.

Officially Licensed Ford Body Panels:
The Ford Raptor Baja Rey has the look and feel of its real world counterparts in ways you never imagined. The body panels capture the design of everything right down to the last detail.

Injection Molded Grill:
The look wouldn't be complete without the iconic injection molded grill. Every detail from Ford's instant classic design is represented.

Injection Molded Hood Scoop:
The Raptor is known for its hood scoops and you can't miss them on the Ford Raptor Baja Rey. These are the details that make 1:1 enthusiasts go crazy and we've got them featured right here.

New Front Bumper:
Completing the look, the front bumper is a custom design to add that realistic touch.

Black Rhino Wheels:
Designed for truck and SUV fans, these rugged monsters can take on any terrain. They are flawlessly replicated on the Ford Raptor Baja Rey and are sure to bring a smile to any 1:1 enthusiast.

Dynamite® 3800Kv Brushless Power System:
The truck comes equipped with a Dynamite Fuze™ 3800Kv brushless motor and a waterproof 130A ESC. This potent combination can handle 2S or 3S LiPo batteries (sold separately) and will allow you to hurtle across the landscape at speeds of up to 50 mph.

Long Travel 4-link Live Rear Axle:
The Ford Raptor Baja Rey rear suspension allows it to soak up massive whoops and bumps with the same realistic handling and movement of a full-scale desert truck. You get better control and a more locked-in feel regardless of the terrain.

Long Travel Independent A-Arm Front Suspension:
The front, independent A-Arm suspension has been carefully engineered letting the Ford Raptor Baja Rey rip across the terrain with confidence. By having fully independent suspension, it allows each side to react accordingly providing more control and more precise steering and handling.

Easy-Access Motor:
The unique design of the chassis allows the Dynamite Fuze™ 3800Kv brushless motor to be accessed without difficulty. Drivers simply remove three screws in the bottom of the chassis and they can then effortlessly make gear changes and service the motor.

Rear-Loading Battery:
The innovative rear-loading battery feature makes it possible to change the battery quickly, easily and without the inconvenience of removing the body.

Sealed Metal-Gear Transmission and Diffs:
The single-speed transmission, as well as the front and center diffs, are sealed against the elements and engineered to handle the abuse of a high-output brushless motor and punishing terrain. MOD 1 gears further increase the durability of this desert beast. The adjustability of three diffs allows drivers to set their Ford Raptor Baja Rey to handle any track conditions.

Open Differential:
Keeping drivers in control during tight turning, the open differential distributes power to the tires in a way that allows you to hit turns confidently.

Coil-over Oil-Filled Shocks:
The long-travel shocks do a fantastic job of soaking up the energy from big bumps and jumps. They also feature threaded shock bodies with adjustment collars so you can fine tune the pre-load settings of the coil-over springs. External bump stops provide plush landings on the hardest surfaces.

Waterproof Electronics:
The Baja Rey desert truck is loaded with waterproof electronics including the receiver, servo and ESC. Everything is sealed against the elements allowing you to splash in the rain, spin in the mud and make tracks in the snow. It's full-throttle freedom to run anytime, rain or shine.

Bolt-On Body Panels and Detailed Interior:
The four piece bolt-on body panels give the truck an authentic factory look. Eliminating the need for body posts that spoil the scale look, these panels are polycarbonate for incredible durability and rugged good looks. You also get a molded interior that includes a driver and rider figure, both of which sport racing helmet and harness details.

LED Light Bar (Front):
The fun doesn't stop even when the sun goes down with the Ford Raptor Baja Rey. A brilliant LED lights on the integrated light bar cast more than enough illumination for running at night. Plus, the body-mounted LEDs place only a small demand on the battery allowing you to stay out all night!

LED Light Bar (Rear):
Just as important as the front lights, the red rear lights allow you to gauge the orientation of the truck even in the darkest night.

Aluminum Chassis:
The foundation of the Baja Rey consists of a 3.5mm, hard-anodized aluminum chassis plate with a 3.5mm upper deck. For added durability and performance it's integrated with a realistic roll cage made of super-tough composite material. Whether you are hitting the whoops, getting huge air, or just wide open, the 3.5mm chassis just keeps asking for more!

Full-Size Spare Tire:
Blow out a tire out on the flats? No worries. The fully-functional spare tire not only adds an authentic scale look to the Ford Raptor Baja Rey, but serves as a true spare. Easily add the tire and get back to tackling the terrain.

Spektrum™ DX2E Active™ Radio System:
The Spektrum™ DX2e Active™ radio system offers advanced features like AVC control, a 3-position throttle limiting switch and travel adjust. It also has an expansion port that lets you add the Spektrum Speedometer or a Bluetooth module and phone mount to utilize the Spektrum Dashboard app.

The Full-Throttle Freedom of AVC® Technology:
The receiver's built-in AVC® (Active Vehicle Control®) traction control system works behind the scenes, making hundreds of throttle and steering adjustments per second, so more of the motor's power is translated into ballistic speed and acceleration instead of just flying dirt. The patent-pending AVC system adds a level of performance that simply cannot be found with any vehicle from any manufacturer other than Horizon Hobby. Like traction control in your full-scale vehicle, you can activate or deactivate the system on the fly and adjust the level of stability based on driving conditions. Any RC vehicle can go fast and with AVC you can go faster while maintaining optimum stability in all driving conditions.
Specs

Product Specifications

Part NumberLOS03020T1
Scale1/10
Drivetrain4WD
Kit TypeRTR
Approximate Assembly TimeNo assembly required
Ball BearingsFull set
BatteriesOne 2 or 3S at least 5000mAh hardcase LiPo required
Battery Dimensions5.45 x 1.81 x 0.98" (138.5 x 46 x 25mm)
BodyFour piece screen printed 2018 Ford Raptor licensed body
ChargerRequired, compatible with selected battery
Chassis0.12" (3mm) thick aluminum
Completion LevelReady-To-Run
DifferentialSealed front and center diffs can be tuned with different weight fluids, locked rear diff
Drivetrain4WD Shaft Drive
Final Drive Ratio10.99:1
Gear Pitch1.0 Module
Ground Clearance2.2" (55mm)
Height7.6" (190mm)
Internal Gear Ratio3.8:1
Length21.6" (540mm)
Motor Size550
Motor TypeBrushless, non-sensored 550 size
Pinion13T
RadioSpektrum DX2E transmitter with 6-ch DSMR AVC surface receiver
ServosWaterproof metal gear steering servo
Shock TypeOil-filled, front 3.9" (100mm), 4.8" (122mm) rear
Size/Scale1/10
Speed ControlDynamite Fuze 130A
Spur Gear40T
SuspensionFront, independent, Rear 4-link
Tire CompoundMedium
Tire Diameter4.45" (113mm)
Tire TreadDesert Claws
Track11.6" (295mm), distance between outer edges of tires measured side-to-side
Vehicle TypeDesert Truck
Water-ResistantYes
Weight6.1 lbs (2.8kg)
Wheel DiameterOuter, 2.2" (56mm), Inner 3.0" (76mm)
Wheel TypeBlack Rhino Alpine
Wheel Width2.3" (58.4mm)
Wheelbase14.6" (370mmm)
Width12.6" (320mm)
