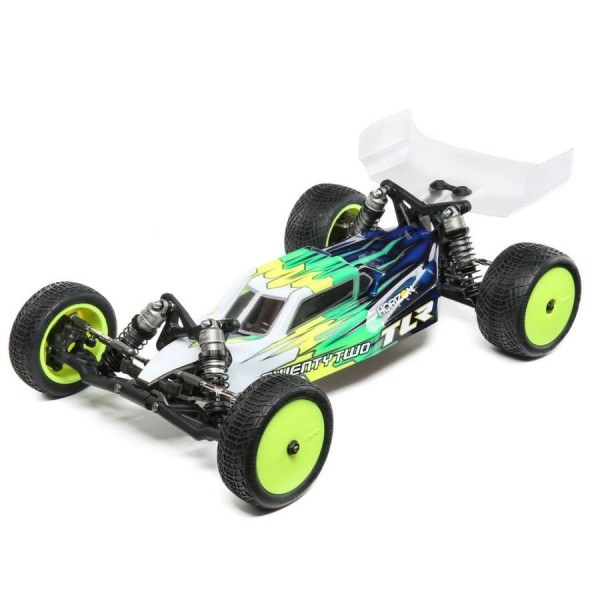

TLR 1/10 22 4.0 SR 2WD SPEC Buggy Race Kit
$249.99
TLR has optimized the 22 4.0 for Spec Classes with the 22 4.0 SR. Combining a lightweight, laydown transmission, 4.0 suspension and more this is the car to put you into victory lane

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The 17.5 buggy spec-class is the biggest class in electric off-road racing and perhaps all of RC today. A fully optimized buggy with a specific focus on stock racing is required to be competitive at the top end of the category, and the TLR®22™ 4.0 SPEC-Racer delivers such a buggy, right out of the box.

The 22 4.0 SPEC-Racer kit takes the drastic improvements made in the on-track performance of the new 22 4.0 and maximized the drivetrain for spec racing. Sounds simple, right? NO! That's because our goal was to turn the weight loss requirement into a performance gain opportunity. For starters, the car has shed weight by replacing carefully chosen stock 22 4.0 parts. The transmission boast the biggest gains where a Direct Drive System with a shortened top shaft, an aluminum diff with composite outdrives and aluminum CVA driveshafts with lightened steel axles has minimized overall weight and rotating mass.

In true TLR fashion, handling was a particular focus. A laydown transmission moves the motor forward by 20mm+ to a central motor location and provides two diff heights-standard 3.0mm and +3.5mm for carpet and Astroturf. This creates a chassis that drives much flatter, more consistent and corners quicker, especially on throttle which is critical for spec racing.

All told, the 22 4.0 SPEC-Racer weighs in under the ROAR minimum weight of 1499g, with no modification. But it's the moment you hit the track when the advantages becomes clear. Front to back, the 22 4.0 SPEC-Racer is more capable of competing for wins right out of the box than any other stock 1/10 2WD buggy in its class.

Includes:

  • (1) TLR 22™ 4.0 SPEC-Racer Kit
  • (1) User Manual

Requires:

  • Motor
  • Electronic Speed Control
  • Servo
  • Tires
  • Radio System
  • 48 Pitch Pinion Gear
  • Charger
  • Battery
  • Paint
  • Tools

features

  • Weighs in Under 1499g
  • Laydown Configuration
  • Lightweight Drivetrain
  • Stiffezel Suspension Components
  • Adjustable Rear Shock Location
  • Gen II 12mm Big Bore Shocks
  • Aluminum-Plate Rear Hub
  • Ballast Tuning Options
  • Lightweight 7075-T6 Aluminum Chassis
  • Included Option Parts
  • Ultra-Lightweight Body

Specs

Approximate Assembly Time: 3-5 Hours
Ball Bearings: Full Rubber Sealed Ball Bearings
Batteries: Required
Body: 22 4.0 Cab Forward, 0.5mm ULW Clear
Brakes: Controlled via Motor/ESC
Charger: Required
Chassis: 2.5mm Milled Plate, 7075-T6 Aluminum
Completion Level: Kit
Differential: Composite-Aluminum Ball Differential
Drivetrain: 2WD
Front Track: 9.8 in (248.5mm)
Gear Pitch: 48-Pitch
Height: 5.8 in (148mm)
Internal Gear Ratio: 2.43:1
Length: 15.0 in (382mm)
Motor Size: 540 (Not Included)
Radio: 2 Channel (Required)
Rear Track: 9.8 in (250mm)
Servos: Required
Shock Type: 12mm Big Bore, Oil Filled
Size/Scale: 1/10
Speed Control: Required
Spur Gear: 69T
Suspension: Lower A-Arm, Upper Adjustable Link
Vehicle Type: Race Kit
Weight: Varies with equipment
Wheel Diameter: 2.2 in (56mm)
Wheel Type: 22 Dish
Wheelbase: 11.0 in (280mm)
Width: 9.8 in (250mm)

Features Overview

Weighs in Under 1499g:
There's no need for titanium hardware to make minimum ROAR weight. The 22 4.0 SPEC-Racer, when built with the kit hardware and the recommended Orion® and Spektrum™ electronics weighs under 1499g when ready to hit the track.

Laydown Configuration:
The 3-gear laydown transmission moves the motor forward by 20mm+ to a central motor location, providing a chassis that drives much flatter, more consistent and corners quicker-a crucial advantage in the 17.5 spec buggy race class.

Lightweight Drivetrain:
To maximize the top speed and performance of a stock motor, the drive train has been lightened with a Direct Drive System including a shortened top shaft, narrower idler and diff gears, aluminum diff hubs with composite outdrives and aluminum CVA driveshafts.

Stiffezel Suspension Components:
The higher glass content of Stiffezel molded composite is strategically used on suspension components to provide more consistent and stable driving. This includes the front and rear suspension arms, mud guards and the waterfall chassis brace. The result is a buggy that lands plushly and corners more consistently.

Adjustable Rear Shock Location:
The rear shock tower can be flipped for forward or rearward mounting. This means the Gen II rear shocks can be mounted in front of the rear tower and suspension arm, or in the traditional location on the back of the arm. This is a popular tuning option for high-grip surfaces that increases forward weight bias, rear end stability and landing ability.

Gen II 12mm Big Bore Shocks:
These shocks continue to set the standard for high performance and easy maintenance. Features include X-Ring Seals, machined shock bushings, machined 2mm x 1.6mm and 2mm x 1.7mm pistons, TiCN coated shock shafts, aluminum bleeder screw caps, hard-anodized threaded shock bodies, low-frequency springs and spring cups that snap onto the shock shafts.

Aluminum-Plate Rear Hub:
The molded-composite hub base allows a bearing to be press fit without play and minimal unspring weight. An aluminum plate is secured to the hub with an M3 screw and ball stud which is vertically adjustable. That way, the ball stud is supported by aluminum from pushing or pulling out, while still threading into composite so it can't work loose.

Ballast Tuning Options:
When running a higher static weight, the chassis is more neutral and easier to drive on ultra-high-grip surfaces. Optional brass ballast weights (sold separately) can be mounted under the servo, under the electronics and under the laydown transmission idler. This makes it easy to tune the static weight and weight bias for changing track conditions.

Lightweight 7075-T6 Aluminum Chassis:
The chassis can accommodate multiple battery mounting options. Milled pockets have been added that lighten the overall weight of the chassis. The pockets also function as mounting stations for the optional brass ballast weights (sold separately).

Included Option Parts:
The 22 4.0 SPEC-Racer kit comes loaded with optional upgrades like a milled 7075 aluminum top shaft, motor plate, rear camber block, clamping rear hexes and ball stud spacers throughout. It also includes aluminum bleeder shock caps, machined shock pistons and internals.

Ultra-Lightweight Body:
An all-new, low-profile body was designed for the 22 4.0 buggy that provides outstanding aerodynamic performance. For the 22 4.0 SPEC Racer, the body is pulled from 0.5mm polycarbonate to significantly save weight and maintain outstanding performance.
Specs

Product Specifications

Part NumberTLR03014
Scale1/10
Drivetrain2WD
Kit TypeUnassembled Kit
Approximate Assembly Time3-5 Hours
Ball BearingsFull Rubber Sealed Ball Bearings
BatteriesRequired
Body22 4.0 Cab Forward, 0.5mm ULW Clear
BrakesControlled via Motor/ESC
ChargerRequired
Chassis2.5mm Milled Plate, 7075-T6 Aluminum
Completion LevelKit
DifferentialComposite-Aluminum Ball Differential
Drivetrain2WD
Front Track9.8 in (248.5mm)
Gear Pitch48-Pitch
Height5.8 in (148mm)
Internal Gear Ratio2.43:1
Length15.0 in (382mm)
Motor Size540 (Not Included)
Radio2 Channel (Required)
Rear Track9.8 in (250mm)
ServosRequired
Shock Type12mm Big Bore, Oil Filled
Size/Scale1/10
Speed ControlRequired
Spur Gear69T
SuspensionLower A-Arm, Upper Adjustable Link
Vehicle TypeRace Kit
WeightVaries with equipment
Wheel Diameter2.2 in (56mm)
Wheel Type22 Dish
Wheelbase11.0 in (280mm)
Width9.8 in (250mm)
