Welcome to Larry's Performance R/C's Online

Team Associated (ASC) Logo

RC10F6 Factory Team 2WD 1/10 electric formula racing car


LOADING IMAGES

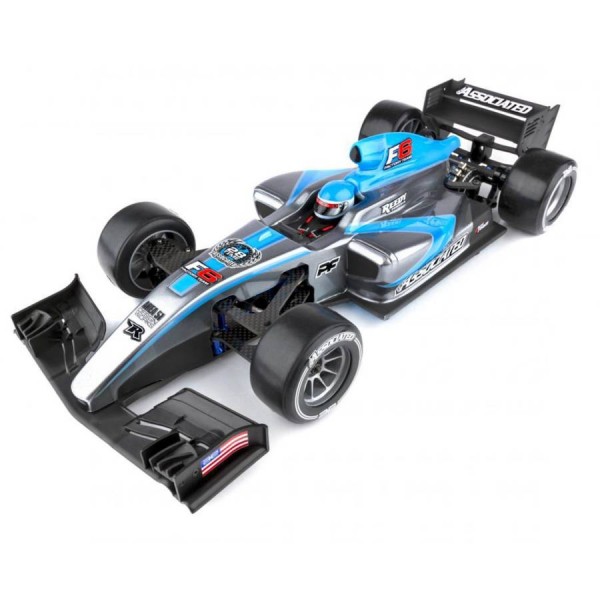

Team Associated (ASC) Logo RC10F6 Factory Team 2WD 1/10 electric formula racing car
$339.99
The Team Associated RC10F6 Factory Team 1:10 scale 2WD electric formula car racing Assembly Kit is geared for precision and the ultimate in performance

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The ultimate in performance

Team Associated is proud to release its entry to the 1:10 scale 2WD electric formula car racing class, the RC10F6 Factory Team Kit, geared for precision and the ultimate in performance.

Full-scale Formula racing is considered one of the most elite forms of racing in existence, with technology and looks off the chart. The engineers behind the doors of Area 51 put maximum effort into the design of the RC10F6 FT kit to make sure the same could be said about their scaled-down version. With a full cast of setting options, an ultra-low center of mass, and sleek styling, the RC10F6 FT is designed to put you at the front of the Formula grid.

With an increase in entries greater than any class at the highly contested ETS series, Formula is growing at a rapid rate. All aspects of the RC10F6 FT were considered and optimized to make sure it would stand above its competition. Performance, adjustability, durability, and style were weighed heavily, and the RC10F6 FT kit shows its hand with a complete package of adjustments and options right out of the box. From front to back, with graphite control arms, the fully adjustable front end, the ultra-smooth rear pivot, and wings styled after current full-scale Formula rulings, no corner was left untouched. At an affordable price point, the RC10F6 FT comes with everything to assure you will be at the front of the pack. With such a well-balanced platform, it's easy to see that the RC10F6 FT kit is another Champion by Design from Team Associated!

Requires:

  • 1:10 scale electric motor
  • Electronic speed control
  • 3.7V-7.4V LiPo, or 6.0V LiFe with "shorty" battery dimensions
  • Battery charger (suited for one of the batteries mentioned above)
  • 2-channel surface transmitter
  • 2-channel receiver
  • Steering servo
  • 1:10 scale Lexan(R) formula body
  • Lexan(R) specific spray paint for body
  • 1:10 scale formula wheels and rubber (or foam) formula tires
  • Helpful Item: Body scissors (AE Part ASC1737 )
  • Helpful Item: FT Hex Wrenches (AE Part ASC1518 )
  • Helpful Item: FT Nut Drivers (AE Part ASC1519 )
  • Helpful Item: FT Turnbuckle Wrench (AE Part ASC1111 )

Notes:

* This vehicle needs extra parts to make it operational. Click on the SPECS tab above to see what extra equipment you'll need to make the vehicle operational, such as motor and battery pack.
* Prototype shown. Due to ongoing R&D, photos may not match final kit. RC10F6 Factory Team Kit shown on these pages equipped with items NOT included in kit: Reedy motor, battery, ESC, servo, receiver, wheels, tires, body, and pinion gear. Assembly and painting required.

features

  • 2.5mm graphite chassis for optimized flex characteristics
  • Front and rear wings modeled after 2017 Formula rules included
  • FOX® Genuine Kashima Coat center shock for minimal friction and extended wear
  • Chassis design allows for multiple battery configurations
  • New center pivot design for optimized rear pod assembly
  • Lightweight graphite axle for increased durability and rigidity
  • Differential thrust bearing assembly for smooth action and extended life between rebuilds
  • Rear axle accepts all standard spur gears without adapter
  • Two steering bellcrank options for fine tuning Ackermann and steering rate
  • Servo mounts can be switched from "fixed" to "floating" to allow more flex in the front of the chassis
  • Integrated droop posts for adjusting droop without disassembly

Specs

Power Source: Electric
Terrain: On-Road
Body Style: F1
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 432.5mm (17.03in)
Width: varies
Wheelbase: varies
Weight: 345*g (0.76lbs)
Internal
Gear Ratio: 1:1
Drive: 2WD

* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

Product Videos

Specs

Product Specifications

Part NumberASC8023
Scale1/10
Drivetrain2WD
Kit TypeUnassembled Kit
Power SourceElectric
TerrainOn-Road
Body StyleF1
Scale Size1:10 Scale
Assembly LevelKit*
Length432.5mm (17.03in)
Widthvaries
Wheelbasevaries
Weight345*g (0.76lbs)
Gear Ratio1:1
Drive2WD
