Team Associated RC10B64 1/10 4WD Off-Road Electric Buggy Unassembled Kit


LOADING IMAGES

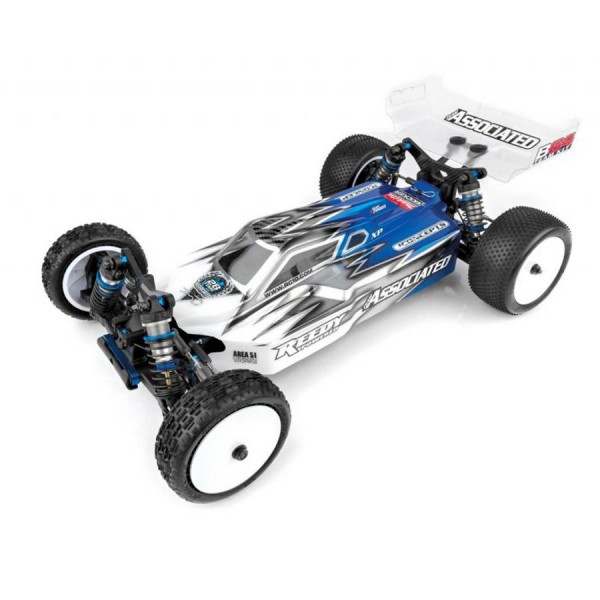

Team Associated (ASC) Logo Team Associated RC10B64 1/10 4WD Off-Road Electric Buggy Unassembled Kit
$389.99
The RC10B64 Team Kit offers increased durability, all new suspension geometry, a wider tuning window and easy maintenance

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

In 2007, the RC10B44 swept the podium at the I.F.M.A.R. World Championships. Since then, Team Associated's first 1:10 scale 4WD buggy has held a dominant place at the front of the field. The B44 platform has gone on to win numerous National and International titles and added two more I.F.M.A.R. World Championships to its legacy in 2011 and 2013.

Designed to take advantage of today's faster-than-ever tracks, the RC10B64 Team Kit offers increased durability, all new suspension geometry, a wider tuning window, improved weight distribution, and easy maintenance. Excelling on high-traction surfaces, the B64's adjustable axle height and roll centers result in a stable yet nimble platform. With a new and improved center slipper using Low Coefficient Friction (LCF) pads, the B64 rewards the driver with maximum drive out of all four wheels on artificial turf and carpet surfaces.

Requires:

  • 2-Channel Radio System
  • ESC
  • 540 Motor
  • Pinion Gear
  • Steering Servo
  • 1/10 Buggy Wheels, Tires, Inserts & CA Glue
  • Polycarbonate Paint
  • 2S 7.4V LiPo Shorty Battery Pack
  • Compatible Battery Charger

Notes:

Wheels, tires, painted body and electronics shown in photos are for illustrative purposes only and are not included. See needed to complete list for a full list of items required to complete the model.

features

  • V2 12mm Big Bore threaded aluminum shocks with 3mm TiN coated shafts and low friction X-rings for improved smoothness
  • Factory Team floating aluminum motor mount and aluminum/carbon servo mounts
  • Refined arm mount geometry with quick and easy tuning
  • Front and rear anti-roll bars keep chassis flat for increased corner speed
  • Narrow, 7075 hard-anodized aluminum chassis with centralized mass
  • Strengthened front and rear suspension with hard-anodized aluminum caster blocks and carbon fiber shock towers
  • Team Associated clear body and screw-mounted wing by JConcepts™
  • All metric hardware throughout
  • Easy access center slipper clutch with LCF pads
  • 12mm front wheel aluminum drive hexes

Specs

Ball Bearings: Yes
Batteries: 2S, 7.4V LiPo Shorty (Required)
Body: Clear
Charger: Required
Chassis: Aluminum
Completion Level: Kit
Differential: Ball
Drivetrain: 4WD
Gear Pitch: 48-Pitch
Internal Gear Ratio: 2.47:1
Length: Varies
Motor Size: 1/10 Scale 540-size Electric (Required)
Pinion: Not Included
Radio: 2-Channel Surface Transmitter, and its Batteries (Required)
Servos: Steering Servo (Required)
Shock Type: 12mm "Big Bore" Threaded Aluminum Oil-Filled
Size/Scale: 1/10
Speed Control: Required
Spur Gear: 81T
Suspension: Independent
Weight: Varies
Wheel Hex Size: 12mm Hex
Wheelbase: 11.18 in (284mm)
Width: Varies
Specs

Product Specifications

Part NumberASC90014
Scale1/10
Drivetrain4WD
Kit TypeUnassembled Kit
Ball BearingsYes
Batteries2S, 7.4V LiPo Shorty (Required)
BodyClear
ChargerRequired
ChassisAluminum
Completion LevelKit
DifferentialBall
Drivetrain4WD
Gear Pitch48-Pitch
Internal Gear Ratio2.47:1
LengthVaries
Motor Size1/10 Scale 540-size Electric (Required)
PinionNot Included
Radio2-Channel Surface Transmitter, and its Batteries (Required)
ServosSteering Servo (Required)
Shock Type12mm "Big Bore" Threaded Aluminum Oil-Filled
Size/Scale1/10
Speed ControlRequired
Spur Gear81T
SuspensionIndependent
WeightVaries
Wheel Hex Size12mm Hex
Wheelbase11.18 in (284mm)
WidthVaries
