- Overview
Overview

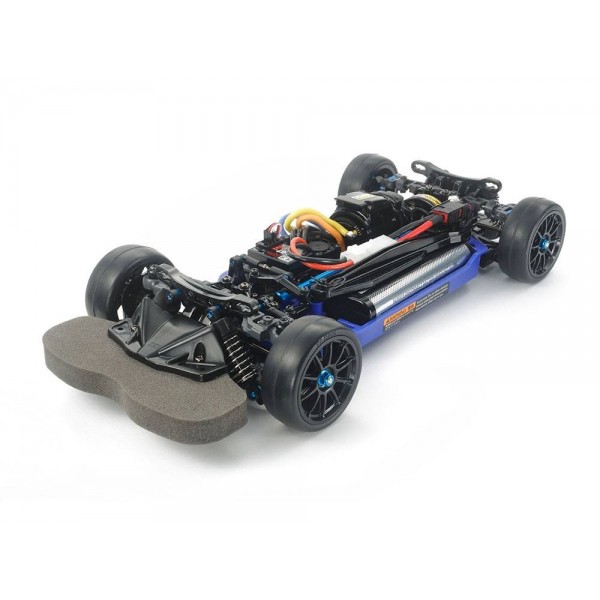

This R/C model assembly kit is a tuned variant of the TT-02 shaft-driven 4WD chassis, featuring an assortment of option parts: oil-filled gear differential units offer near infinite setup possibilities, adjustable front and rear upper arms allow alteration of camber, while the hard-plastic tub lower deck is molded in blue color. Also, in the kit are aluminum propeller shaft and rear upright components, high performance CVA oil dampers, and full ball bearings.
Includes:
- Hard lower deck component molded in blue.
- Full ball bearings, aluminum propeller shaft and joint components, plus oil-filled gear differential units.
- High speed gear set to allow for faster gear ratio settings.
- Racing slick tires.
Requires:
- 2-Channel Radio
- servo
- ESC (electronic speed control)
- 7.2volt battery pack & charger
- 190mm on-road body
- Tamiya PS paint
features
- New Adjustable Upper Arms
- Oil-Filled Gear Differential Units
- Lower Deck (Hard/Blue) (TAM47339)
- Alu. Rear Uprights (3.0) (TAM54733)
- Alu. Propeller Joint ( TAM54502 )
- Alu. Propeller Shaft ( TAM54501 )
- High Speed Gear Set (68T) ( TAM54500 )
- Ball Bearing Set ( TAM54476 )
- 5mm Ball Connectors (TAM50875)
- Metal Drive Shafts & Wheel Axles
- 5mm Alu. Short Ball Nuts (Blue) (TAM53869)
- 5mm Alu. Ball Connectors (Blue) (TAM53642)
- 4mm Anodized Alu. Flange Lock Nuts (Blue) (TAM53159)
- Medium-Narrow Racing Slicks (TAM51049)
- CVA Damper & Spring Set
- Compatible with TT-02, TT-01 and TT-01 Type-E bodies.
Length: 376mmSpecs
width: 182/190mm (selectable)
wheelbase: 251/257mm (selectable).
Adjustable Gear Ratio: Yes
Bearings: Includes full ball bearings
Chassis Material: FRP Fiberglass Reinforced Plastic
Chassis Type: TT-02
Construction Type: Assembly Kit
Differential Type: Gear-Type (Oil-Filled)
Drive Type: 4WD
Electronic Speed Control (esc): Not Included
Shock Damper: CVA Oil Filled
Suspension: 4-wheel fully independent double wishbone
Terrain Use: On-Road- Specs
Product Specifications
Part Number TAM47382 Scale 1/10 Drivetrain 4WD Kit Type Unassembled Kit Length 376mm width 182/190mm (selectable) wheelbase 251/257mm (selectable). Adjustable Gear Ratio Yes Bearings Includes full ball bearings Chassis Material FRP Fiberglass Reinforced Plastic Chassis Type TT-02 Construction Type Assembly Kit Differential Type Gear-Type (Oil-Filled) Drive Type 4WD Electronic Speed Control (esc) Not Included Shock Damper CVA Oil Filled Suspension 4-wheel fully independent double wishbone Terrain Use On-Road - Reviews
