- Overview
Overview

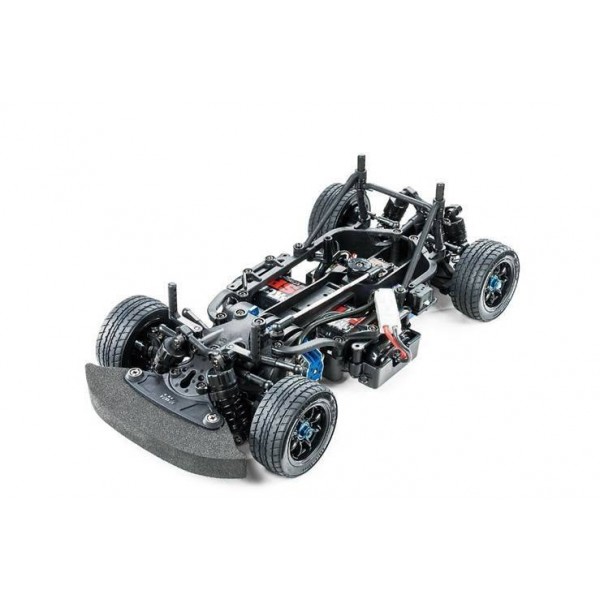

This high-performance front-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with lower deck and upper frame sections. It offers responsive drive characteristics and fuss-free maintenance of parts such as the easy-access differential, which can be removed from the underside with minimal disassembly. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.
Includes:
- (1) 1/10 M-07 Concept Chassis FWD Kit
- (1) User Manual
Requires:
- 2-channel radio
- Servo
- Motor
- Electronic speed control
- 7.2volt battery
- Compatible charger
- Tires
- Body
- Tamiya PS spray paint
- Tools
features
- Monocoque frame chassis (with detachable lower section)
- Long suspension arms
- CVA oil dampers
- Full ball bearings
- Gear differential unit
- Universal drive shafts
- Hi-torque servo saver
- 1/10 scale
- Front wheel drive
- 4-Wheel Independent Double Wishbone Suspension
Length: 332mm (including bumper)Specs
Width: 164mm
Wheelbase: 225mm or 239mm (Selectable)
Gear Ratio: 5.78:1 with included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears)- Specs
Product Specifications
Part Number TAM58647 Scale 1/10 Drivetrain 2WD Kit Type Unassembled Kit Length 332mm (including bumper) Width 164mm Wheelbase 225mm or 239mm (Selectable) Gear Ratio 5.78:1 with included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears) - Reviews
