- Overview
features
- Ideal for 1/5 scale off road and large scale aircraft applications
- Strong metal gear train for added durability.
- Good torque and speed for a nice balance.
- Capable of operating on high voltage.
Operating Temperature: 14° - 122°F (-10° - 50°C)Specs
Running Current (no load): 150mA @6.0V, 180mA @7.4V
Stall Current (at locked): 7500mA @6.0V, 9000mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 15 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed- Specs
Product Specifications

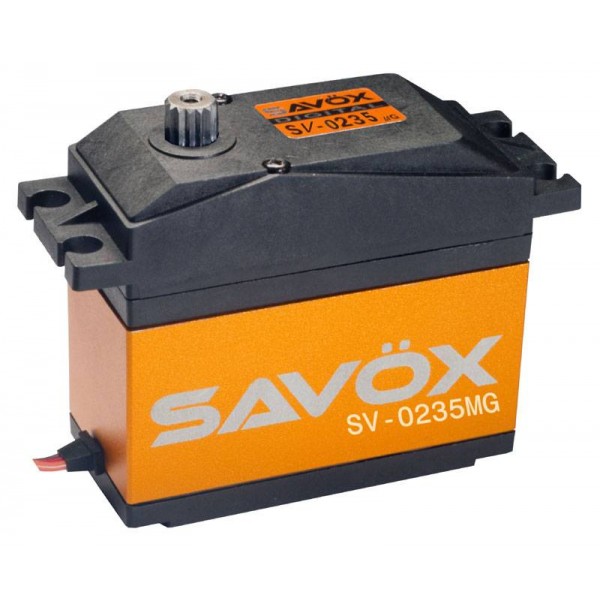

Part Number SAVSV-0235MG Operating Temperature 14° - 122°F (-10° - 50°C) Running Current (no load) 150mA @6.0V, 180mA @7.4V Stall Current (at locked) 7500mA @6.0V, 9000mA @7.4V Idle Current 5mA @4.8V, 5mA @6.0V Wire Length 200 ± 5mm Output Gear Spline 15 Tooth Bearings 2BB Operating Travel 100° (1000 → 2000 µ second) Neutral Position 1500 µ second Pulse Width Range 800 → 2200 µ second Maximum Travel Appx 130° (900 → 2100 µ second) Refresh Rate 240 Hz Motor Type Brushed - Reviews
