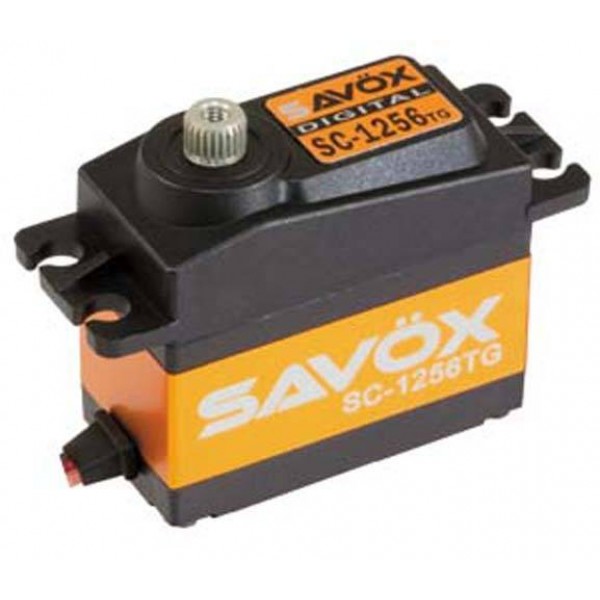

Savox Black Edition Standard Size Coreless Digital Servo, .15/277 @6V


LOADING IMAGES
Savox (SAV) Logo Savox Black Edition Standard Size Coreless Digital Servo, .15/277 @6V
$81.99
This is a Savox part #SC1256TG, A Black Edition Standard Size Coreless Digital Servo, .15/277 @6V

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The SC1256TG servo is a great servo for those looking to replace a standard servo with one that has superior specifications.

features

  • Titanium gears ensure long life,durability, and lighter weight.
  • Aluminum middle case to help with cooler operating temperatures.
  • Great replacement for RTR servos and other 1/10 off road vehicles.

Specs

Torque @ 4.8v: 16.0kg/222.2oz-in
Torque @ 6v: 20.0kg/277.7oz-in
Speed @ 4.8v: 0.18 sec/60 deg
Speed @ 6v: 0.15 sec/60 deg
Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
Weight: 52.4g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 100mA @4.8V, 120mA @6.0V
Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
Specs

Product Specifications

Part NumberSAVSC1256TG
Torque @ 4.8v16.0kg/222.2oz-in
Torque @ 6v20.0kg/277.7oz-in
Speed @ 4.8v0.18 sec/60 deg
Speed @ 6v0.15 sec/60 deg
Dimensions L x W x H (mm)40.3 x 20.2 x 37.2
Weight52.4g
Operating Temperature14° - 122°F (-10° - 50°C)
Running Current (no load)100mA @4.8V, 120mA @6.0V
Stall Current (at locked)4000mA @4.8V, 5000mA @6.0V
Idle Current5mA @4.8V, 5mA @6.0V
Wire Length250 +/- 5mm
Output Gear Spline25 Tooth
Bearings2BB
Operating Travel100° (1000 → 2000 µ second)
Neutral Position1500 µ second
Pulse Width Range800 → 2200 µ second
Maximum TravelAppx 130° (900 → 2100 µ second)
Refresh Rate333 Hz
Motor TypeCoreless
