- Overview

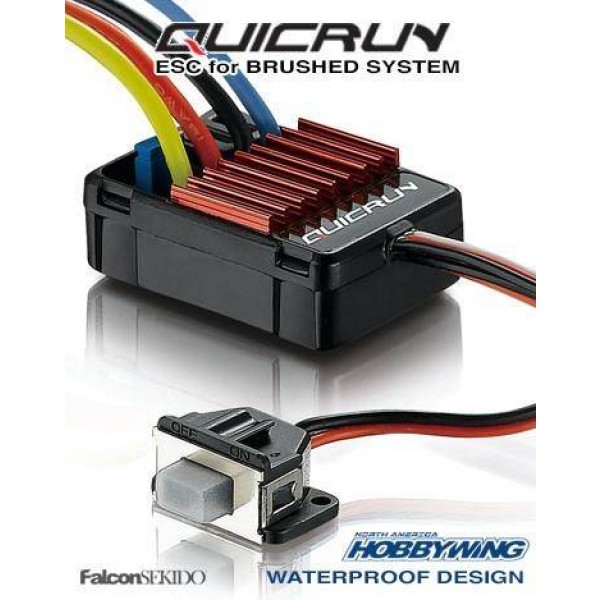

This is the Hobbywing Quicrun 1625 Brushed ESC for 1/18 scale. Waterproof and dustproof for all weather races.
Fwd Cont. Current /Peak Current/ Resistance: 25A/100A/0.003ΩSpecs
Rev Cont. Current /Peak Current/ Resistance: 25A/100A/0.003Ω
Motor Type Supported: BrushedMotor
Car Applicable: 1/16 & 1/18 On-road/Off-road/Buggy/Monster
Suitable Battery Brushed Motor Limit:
- For 2S LiPo or 6 cell NiMH: 280、370 or 380 Size Motor RPM<30000 @7.2V
- For 3S LiPo or 9 cell NiMH: 280、370 or 380 Size Motor RPM<20000 @7.2V
BEC Output: 1A/5V (Linear Mode)
PWM Frequency: 1KHz
Size/ Weight: 34(L)*24(W)*14(H) / 23.5g
Running Modes: Forward/Reverse/Brake- Specs
Product Specifications
Part Number HWI30120000 Fwd Cont. Current /Peak Current/ Resistance 25A/100A/0.003Ω Rev Cont. Current /Peak Current/ Resistance 25A/100A/0.003Ω Motor Type Supported BrushedMotor Car Applicable 1/16 & 1/18 On-road/Off-road/Buggy/Monster Suitable Battery Brushed Motor Limit - For 2S LiPo or 6 cell NiMH 280、370 or 380 Size Motor RPM<30000 @7.2V - For 3S LiPo or 9 cell NiMH 280、370 or 380 Size Motor RPM<20000 @7.2V BEC Output 1A/5V (Linear Mode) PWM Frequency 1KHz Size/ Weight 34(L)*24(W)*14(H) / 23.5g Running Modes Forward/Reverse/Brake - Reviews
