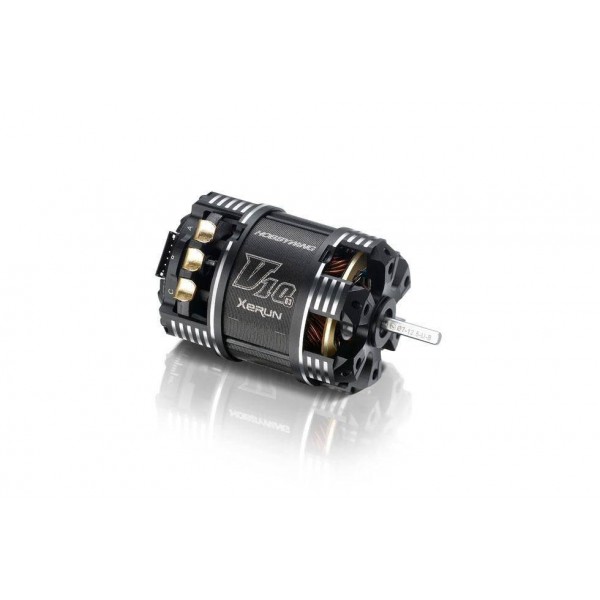

Hobbywing XeRun V10 G3 7.5T 4420Kv Sensored Brushless Motor


LOADING IMAGES
Hobbywing XeRun V10 G3 7.5T 4420Kv Sensored Brushless Motor
$94.99
This is the Hobby Wing XeRun V10 G3 7.5T 4420Kv Sensored Brushless Motor, perfect for 1/10 Drift & 2WD Off-Road Racing

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

This is the Hobby Wing XeRun V10 G3 7.5T 4420Kv Sensored Brushless Motor, perfect for 1/10 Drift & 2WD Off-Road Racing

features

  • Specially designed for high-level racing.
  • Lightweight: The G3 Modified & Stock motors only weigh 161g & 132g respectively, the weights are reduced by 11% & 21% when comparing with the V10 G2 motors.
  • The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
  • The mechanical timing can be adjusted finely and smoothly; the skid-proof lines on the rear end plate of the motor guarantee stability of the timing after adjustment. For G3 Stock motors (10.5T~25.5T), the timing is adjustable from 30 degrees to 60 degrees; for Modified motors (3.5T~8.5T), the timing is adjustable from 20 degrees to 50 degrees.
  • The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.
  • The special shell design which makes the stator core expose to the air maximizes cooling. Big holes on the end plates of 10.5T~21.5T motors further help reduce heat; small holes on the end plates of 5.5T~8.5T motors effectively keep sand or dirt from getting inside and damaging the motor(s).
  • The use of high-performance stator core, heat (200°C) resistant wire, heat (200°C) resistant rotor with strong structure, imported high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.

Specs

kV: 4420
LiPo: 2S
Resistance: 0.0074
No-Load Current (A): 3.3
Max Output Power (W): 346
Current @ Max Output Power (A): 100
Diameter/Length (mm): 35.9mm (1.41in)/51.2mm (2.01in)
Shaft Diameter/Length (mm): 3.17mm (0.125in)/13.3mm (0.52in)
Stock Rotor: 5-12.1
Sensored: Yes
Brushless: Yes
Poles: 2
Weight (g): 161
Applications: 1/10 Drift, 2WD Off-Road Racing
Specs

Product Specifications

Part NumberHWI30401110
kV4420
LiPo2S
Resistance0.0074
No-Load Current (A)3.3
Max Output Power (W)346
Current @ Max Output Power (A)100
Diameter/Length (mm)35.9mm (1.41in)/51.2mm (2.01in)
Shaft Diameter/Length (mm)3.17mm (0.125in)/13.3mm (0.52in)
Stock Rotor5-12.1
SensoredYes
BrushlessYes
Poles2
Weight (g)161
Applications1/10 Drift, 2WD Off-Road Racing
