- Overview
Overview

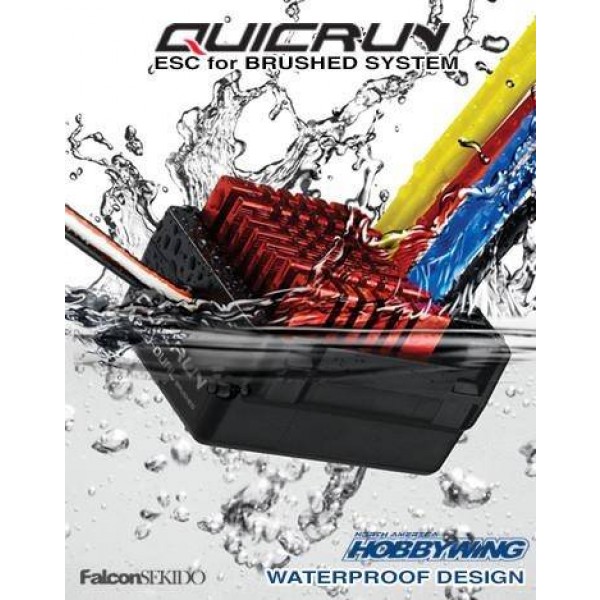

The Hobbywing QR860 DUAL Brushed ESC: Suitable for 1:8 / 1:10 All purpose Water-proof and dust-proof for all weather races
Notes:
- Please make sure to uninstall the cooling fan before using this ESC in water.
- Clean and dry soon after use to avoid rusting the connectors.features
- This ESC has two outputs to drive 2 motors.
- Water-proof and dust-proof, suitable for all-weather race conditions.
- Small size with built-in capacitor module.
- Four running modes to fit various vehicles*
- Fwd/Br/Rev
- Fwd/Br
- Fwd/Rev (also called "Crawler Mode")
- Boat mode
- Great current endurance capability.
- Switch mode built-in BEC has powerful output.
- Automatic throttle range calibration, easy to use.
- Easy set ESC parameters with dial switches.
- Multiple protections: Low voltage cut-off protection for battery/ Thermal (Over-heating) protection/ Throttle signal loss protection.
Fwd. Cont./Peak Current/ Resistance: 60A/360A/0.001ΩSpecs
Rev. Cont./Peak Current/ Resistance: 30A/160A/0.002Ω
Motor Type Supported: Brushed Motor
Applicable Car: 1/8 & 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler, Tank, Boat
Motor Limit For 2S LiPo or 6 cell NiMH: 540, 550, 775 Size Motor: ≥12T or RPM<30000 @7.2V
Motor Limit For For 3S LiPo or 9 cell NiMH: 540, 550, 775 Size Motor: ≥18T or RPM<20000 @7.2V
Motor Limit For For 4S LiPo or 18 cell NiMH: 540, 550, 775 Size Motor: ≥24T or RPM<15000 @7.2V
Battery: 6-18 Cells NiMH / 2-4S LiPo
BEC Output: 3A/5V (Switch Mode)
PMW Frequency: 1KHz
Size/ Weight: 46.5*36*26.3 / 73g
Cooling fan: Cooling fan works with 2-3S LiPo
Running Mode: Fwd/Br/Rev, Fwd/Br, Fwd/Rev(Crawler), Boat mode- Specs
Product Specifications
Part Number HWI30105400 Fwd. Cont./Peak Current/ Resistance 60A/360A/0.001Ω Rev. Cont./Peak Current/ Resistance 30A/160A/0.002Ω Motor Type Supported Brushed Motor Applicable Car 1/8 & 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler, Tank, Boat Motor Limit For 2S LiPo or 6 cell NiMH 540, 550, 775 Size Motor: ≥12T or RPM<30000 @7.2V Motor Limit For For 3S LiPo or 9 cell NiMH 540, 550, 775 Size Motor: ≥18T or RPM<20000 @7.2V Motor Limit For For 4S LiPo or 18 cell NiMH 540, 550, 775 Size Motor: ≥24T or RPM<15000 @7.2V Battery 6-18 Cells NiMH / 2-4S LiPo BEC Output 3A/5V (Switch Mode) PMW Frequency 1KHz Size/ Weight 46.5*36*26.3 / 73g Cooling fan Cooling fan works with 2-3S LiPo Running Mode Fwd/Br/Rev, Fwd/Br, Fwd/Rev(Crawler), Boat mode - Reviews
