- Overview
Overview

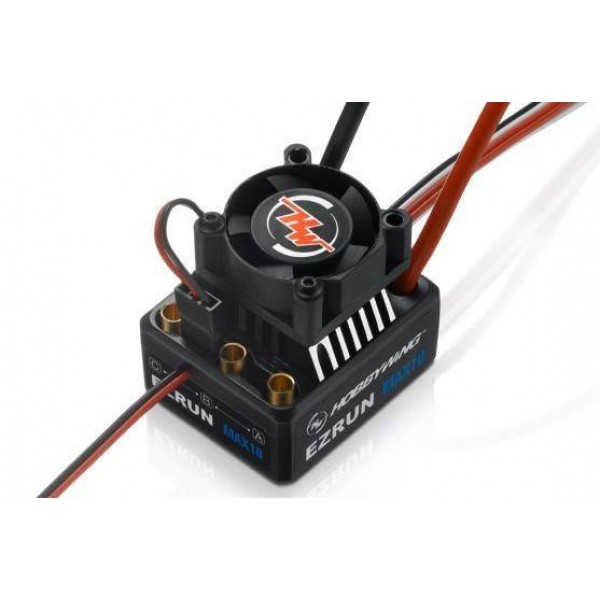

The Hobbywing EZRun MAX10 Sensorless Brushless ESC uses an advanced Motor Thermal Protection circuit to monitor the motor temperature and protect the motor from irreversible damage due to overheating. Combined this with a high voltage internal BEC, a high quality power switch and the durability that has made Hobbywing famous and you have an excellent choice for powering your vehicle in any sensorless application.
Includes:
- (1) Ezrun MAX10 ESC
- (3) 14 AWG, 200C Black wires for a brushless motor
- (1) Double side tape
- (2) Heat shrink tube
- User's manual
- A HOBBYWING decal
features
- ESC is compatible with both sensorless and sensored brushless motors (only in sensorless mode).
- Fully waterproof design for all conditions.
- Super internal switch-mode BEC with switchable voltage of 6V/7.4V for usage with high torque and high voltage servos.
- Motor Thermal Protection: It will be available after you plug the temperature monitoring cable on the ESC into the temperature monitoring port (marked with “TEMP”) at the bottom of the matching HOBBYWING motor.
- Highly reliable electronic switch design prevent mechanical switch failure due to dirt, water, dust and etc.
- Separate programming port to easily connect the LED program card or the LCD program box to the ESC.
- Proportional brake with 9 levels of maximum brake force and drag brake force.
- 5 levels of acceleration/punch from soft to aggressive for different vehicles, tires and tracks.
- Capacitor Protection: Innovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC from overloading. • Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe (throttle signal loss protection). • Single-button ESC programming and factory reset.
- Advanced programming via portable LED program card, multifunction LCD program box or WiFi module.
- Firmware upgrade via HOBBYWING multifunction LCD program box or WiFi module (item sold separately).
- SpecificationsSpecs
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Yes
Cont./Peak Current: 60A/450A
Input Voltage: 2-3S LiPo/6-9 Cells NiMH
BEC Output: Switch Mode: 6V/7.4V,3A
- Wires & Connectors
Input Wires: Red-14AWG-200mm*1/Black-14AWG-200mm*1
Output Wires: Black-14AWG-200mm*3
Input Connectors: No
Output Connectors: 3.5 Bullet Connectors (Female)
- Fan
Size: 25.0x25.0x10.0mm
Voltage Range: 5-7.4V
Powered by: BEC
- ESC Programing via
SET Button on ESC: Supported
LED Program Box: Supported
LCD Program Box: Supported
WiFi Module: Supported
Program Port: PRG/Fan Port
Firmware Upgrade: Supported
Size & Weight
Size: 39.4x32.8x23.1mm
Weight: 67.8g
- Applications
Motors: SL BL Motors/SD BL Motors (only in SL mode)
Vehicles: 1/10th Buggy, On-road, and Light-weight 2WD SCT, Truck and Monster Truck
KV Rating/T Count: 2S LiPo: KV≤6000;3S LiPo: KV≤4000 (3652 Series of Motors)
Note: All the wire length above is the original length not the length you see from the outside.- Specs
Product Specifications
Part Number HWI30102602 Scale 1/10th Brushed/Brushless BL Sensored/Sensorless SL Waterproof Yes Cont./Peak Current 60A/450A Input Voltage 2-3S LiPo/6-9 Cells NiMH BEC Output Switch Mode: 6V/7.4V,3A Input Wires Red-14AWG-200mm*1/Black-14AWG-200mm*1 Output Wires Black-14AWG-200mm*3 Input Connectors No Output Connectors 3.5 Bullet Connectors (Female) Size 39.4x32.8x23.1mm Voltage Range 5-7.4V Powered by BEC SET Button on ESC Supported LED Program Box Supported LCD Program Box Supported WiFi Module Supported Program Port PRG/Fan Port Firmware Upgrade Supported Weight 67.8g Motors SL BL Motors/SD BL Motors (only in SL mode) Vehicles 1/10th Buggy, On-road, and Light-weight 2WD SCT, Truck and Monster Truck KV Rating/T Count 2S LiPo: KV≤6000;3S LiPo: KV≤4000 (3652 Series of Motors) Note All the wire length above is the original length not the length you see from the outside. - Reviews
