- Overview
features

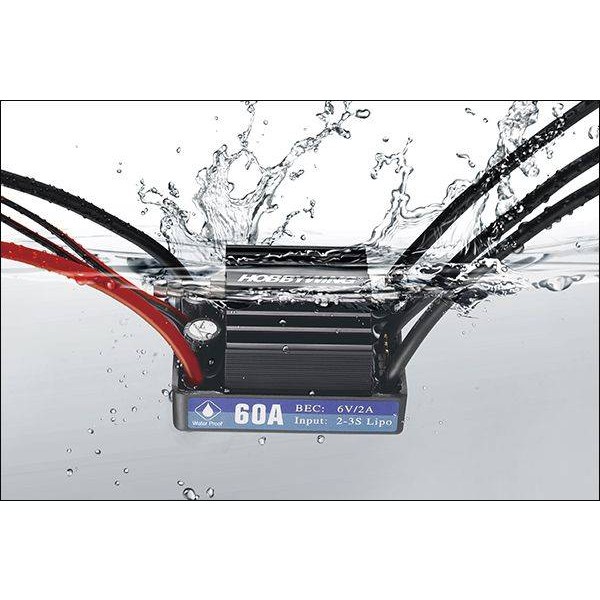

- Excellent waterproof design (rates as IP 67) allows this ESC to work in water without any extra precautions;
- High quality components have very strong over-current withstanding capabilities;
- High-efficiency water cooling system can easily dissipate the heat produced in operation under high load;
- The special firmware designed for RC boats can give an acceleration with more punch and the sailing more stable
- Multiple protections such as low-voltage cutoff protection, thermal protection and throttle signal loss protection, make the ESC more reliable;
Cont./Peak Current: 60A/360ASpecs
Boat Applicable: Boat length < 70cm
Input: 2-3S Lipo
BEC Type / BEC Output: Liner Mode /6V/1A
External Programming Port: No needed. Use a Rx wire on the ESC can be used to connect the LED program box with ESC.
Water Cooling Pipe: (Inside / Outside): Ф2.0 / 4.0mm
Input wire: Red-14AWG-150mm*1; Black-14AWG-150mm*1
Output wire: Black-14AWG-100mm*3
Size: 60.5X38.5X25.6mm (Include the Water Cooling Pipe)
Weight: 93g- Specs
Product Specifications
Part Number HWI30302200 Cont./Peak Current 60A/360A Boat Applicable Boat length < 70cm Input 2-3S Lipo BEC Type / BEC Output Liner Mode /6V/1A External Programming Port No needed. Use a Rx wire on the ESC can be used to connect the LED program box with ESC. Water Cooling Pipe (Inside / Outside): Ф2.0 / 4.0mm Input wire Red-14AWG-150mm*1; Black-14AWG-150mm*1 Output wire Black-14AWG-100mm*3 Size 60.5X38.5X25.6mm (Include the Water Cooling Pipe) Weight 93g - Reviews
